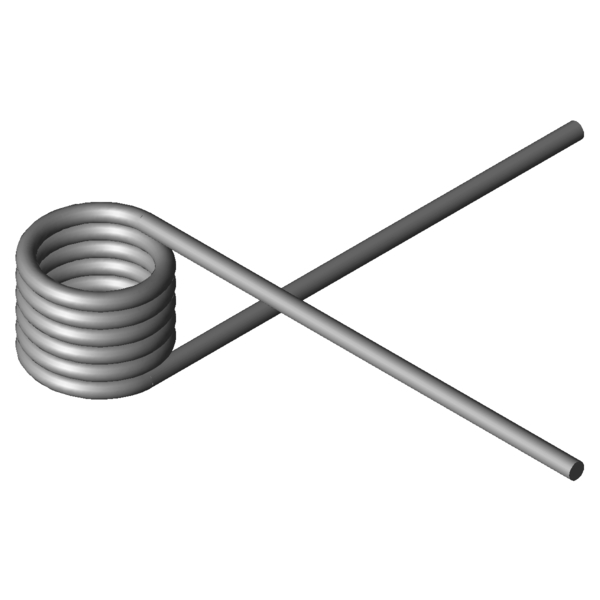

Home » Products » Torsion springs » t-16917l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° Scaled prices - Torsion spring T-16917L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-16917L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16917L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.8 mm Wire diameter Di 15.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 18.9 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 660.23 Nmm (+/-) Tolerance maximum torque Mn 1965.24 Nmm maximum torque alphan 66.69 degree maximum rotational angle nt 5.75 pc. total number of coils Ddmax 13.6 mm maximum possible mandrel diameter Ddmin 10 mm Min. possible mandrel diameter Ditol 0.4 mm (+/-) tolerance of inner coil diameter Weight 23.8133 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° force-path-calculation Torsion spring T-16917L Inquiry formular Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° Inquiry formular Torsion spring T-16917L Similar torsion springs to Torsion spring T-16917L: Stainless steel Ø 2.8 x 15.5 x 80 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18886L 18.4 14 457.84 214.72 1.4310 50.6 | 87.6 | 44.4 | 19.7 T-18923L 13.5 15.75 572.76 128.24 1.4310 63.3 | 83.1 | 65.5 | 41.2 T-18935L 16 15.75 581.21 151.39 1.4310 61.0 | 87.6 | 59.9 | 35.4 T-18947L 20.5 15.75 591.67 193.08 1.4310 56.8 | 88.9 | 53.2 | 28.3 T-19111L 11 17.5 798.72 99.77 1.4310 53.1 | 78.3 | 53.7 | 27.2 T-19136L 15 17.5 825.31 134.83 1.4310 72.4 | 85.6 | 75.2 | 56.5 T-19161L 18 17.5 838.31 161.03 1.4310 69.6 | 91.0 | 69.7 | 48.0 T-16807L 11.5 15.19 1041.37 63.68 1.4310 77.6 | 87.4 | 79.1 | 66.3 T-16817L 15.5 15.19 1076.95 85.01 1.4310 90.5 | 94.6 | 91.3 | 85.5 T-16827L 18.5 15.19 1094.7 101.02 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19203L 10 16.88 1422.19 51.97 1.4310 83.0 | 81.0 | 75.1 | 92.9 T-19223L 13.5 16.88 1481.57 69.25 1.4310 68.7 | 84.3 | 71.2 | 50.7 T-19243L 17.5 16.88 1524.2 89.03 1.4310 78.3 | 91.5 | 80.0 | 63.3 T-16907L 11.5 18.9 1888.38 50.07 1.4310 85.0 | 91.4 | 85.6 | 78.1 T-16917L 15.5 18.9 1965.24 66.69 1.4310 59.7 | 81.5 | 60.9 | 36.8 T-16927L 19.5 18.9 2014.76 83.31 1.4310 66.1 | 85.2 | 68.4 | 44.8 T-19303L 12 20.25 2364.22 49.96 1.4310 76.4 | 88.0 | 79.0 | 62.3 T-19323L 16 20.25 2459.2 65.83 1.4310 54.2 | 78.8 | 54.8 | 29.0 T-19343L 21 20.25 2533.79 85.62 1.4310 60.0 | 79.4 | 64.0 | 36.6 T-17007L 12.5 21.6 2709.97 46.25 1.4310 68.8 | 85.2 | 70.9 | 50.3 T-17017L 17 21.6 2827.78 62.09 1.4310 78.2 | 88.7 | 81.3 | 64.7 T-17013L 17 12 2827.78 29.69 1.4310 41.9 | 80.4 | 34.1 | 11.4 T-19403L 12.4 24.3 3909.65 42.55 1.4310 55.9 | 78.5 | 57.0 | 32.1 T-19423L 17.4 24.3 4113.81 58.73 1.4310 63.8 | 81.5 | 67.9 | 42.1 T-19703L 20.5 16.88 7210.54 23.96 1.4310 33.3 | 76.7 | 19.5 | 3.6 T-19804L 20 18.75 9706.06 21.16 1.4310 30.4 | 72.8 | 16.1 | 2.4 Number of similar metal springs: 25 Customs tariff number: 73202089; Torsion spring T-16917L Country of origin: DE, German; Torsion spring T-16917L Product image - Torsion springs T-16917L QR-Code: Torsion spring T-16917L
