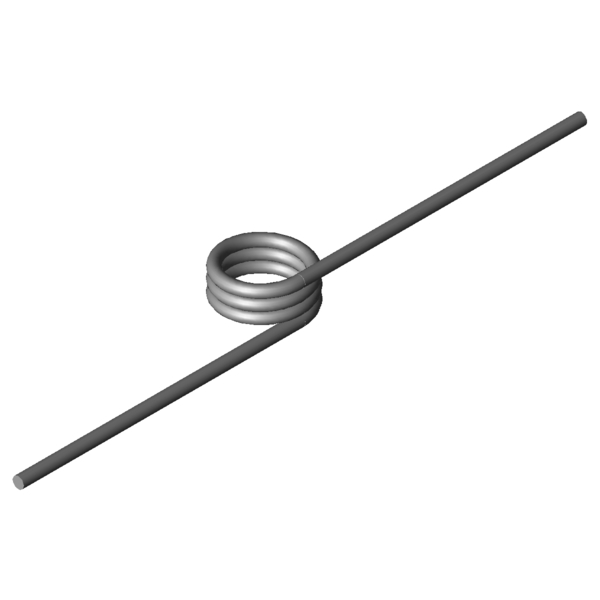

Home » Products » Torsion springs » t-17014r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° Scaled prices - Torsion spring T-17014R Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-17014R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-17014R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.2 mm Wire diameter Di 17 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 12.8 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 1172.27 Nmm (+/-) Tolerance maximum torque Mn 2827.78 Nmm maximum torque alphan 32.39 degree maximum rotational angle nt 3 pc. total number of coils Ddmax 15 mm maximum possible mandrel diameter Ddmin 11 mm Min. possible mandrel diameter Ditol 0.4 mm (+/-) tolerance of inner coil diameter Weight 22.2161 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° force-path-calculation Torsion spring T-17014R Inquiry formular Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° Inquiry formular Torsion spring T-17014R Similar torsion springs to Torsion spring T-17014R: Stainless steel Ø 3.2 x 17 x 80 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-19158R 18 10 838.31 83.13 1.4310 41.4 | 78.4 | 34.3 | 11.6 T-16814R 15.5 9 1076.95 44.35 1.4310 53.5 | 77.3 | 55.6 | 27.8 T-16818R 15.5 18 1076.95 103.49 1.4310 41.4 | 77.5 | 34.7 | 11.9 T-16824R 18.5 9 1094.7 52.7 1.4310 50.5 | 77.5 | 50.1 | 23.8 T-16828R 18.5 18 1094.7 122.98 1.4310 40.2 | 77.8 | 32.5 | 10.2 T-19240R 17.5 7.5 1524.2 30.99 1.4310 69.7 | 78.0 | 74.8 | 56.3 T-16904R 11.5 11.2 1888.38 26.12 1.4310 79.1 | 80.9 | 73.7 | 82.8 T-16914R 15.5 11.2 1965.24 34.79 1.4310 78.2 | 88.7 | 81.3 | 64.7 T-16910R 15.5 8.4 1965.24 23.2 1.4310 83.0 | 81.4 | 70.6 | 97.0 T-16924R 19.5 11.2 2014.76 43.47 1.4310 71.1 | 87.4 | 72.9 | 53.1 T-16920R 19.5 8.4 2014.76 28.98 1.4310 80.0 | 80.1 | 80.4 | 79.6 T-19320R 16 9 2459.2 22.93 1.4310 82.1 | 86.1 | 78.9 | 81.4 T-19344R 21 15 2533.79 62.8 1.4310 67.8 | 86.7 | 70.6 | 46.2 T-17004R 12.5 12.8 2709.97 24.13 1.4310 84.7 | 91.2 | 85.2 | 77.7 T-17014R 17 12.8 2827.78 32.39 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-17024R 22 12.8 2909.76 41.58 1.4310 86.7 | 92.4 | 87.5 | 80.2 T-19400R 12.4 10.8 3909.65 14.81 1.4310 58.1 | 82.1 | 59.0 | 33.1 T-19420R 17.4 10.8 4113.81 20.41 1.4310 66.5 | 90.3 | 65.9 | 43.3 T-19440R 22.4 10.8 4240.2 26.01 1.4310 70.0 | 83.1 | 73.5 | 53.6 T-19500R 17.5 12 5236.92 18.35 1.4310 58.7 | 90.3 | 55.3 | 30.6 T-19520R 22.5 12 5673.53 23.34 1.4310 60.0 | 83.1 | 61.0 | 35.9 T-19700R 20.5 13.5 7210.54 17.43 1.4310 50.2 | 83.0 | 46.5 | 21.1 T-19801R 20 15 9706.06 15.39 1.4310 43.4 | 78.1 | 38.3 | 13.8 Number of similar metal springs: 22 Customs tariff number: 73202089; Torsion spring T-17014R Country of origin: DE, German; Torsion spring T-17014R Product image - Torsion springs T-17014R QR-Code: Torsion spring T-17014R
