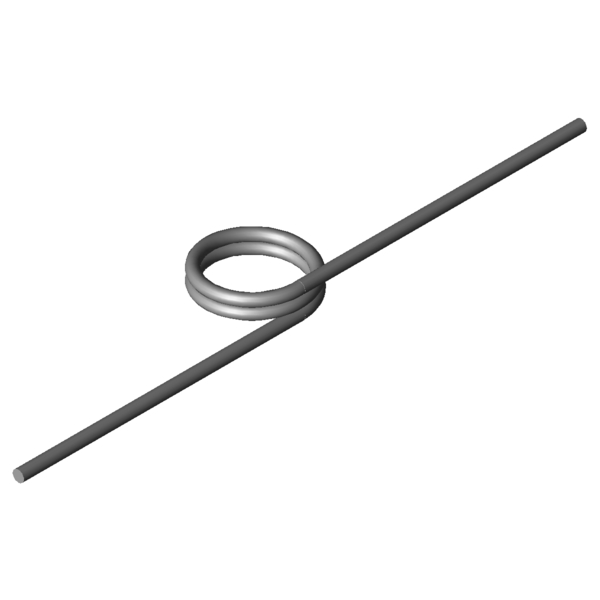

Home » Products » Torsion springs » t-17020r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° Scaled prices - Torsion spring T-17020R Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-17020R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-17020R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.2 mm Wire diameter Di 22 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 9.6 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 1156.81 Nmm (+/-) Tolerance maximum torque Mn 2909.76 Nmm maximum torque alphan 27.72 degree maximum rotational angle nt 2 pc. total number of coils Ddmax 19.3 mm maximum possible mandrel diameter Ddmin 13 mm Min. possible mandrel diameter Ditol 0.5 mm (+/-) tolerance of inner coil diameter Weight 20.1847 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° force-path-calculation Torsion spring T-17020R Inquiry formular Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° Inquiry formular Torsion spring T-17020R Similar torsion springs to Torsion spring T-17020R: Stainless steel Ø 3.2 x 22 x 80 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16814R 15.5 9 1076.95 44.35 1.4310 50.4 | 78.2 | 49.8 | 23.1 T-16824R 18.5 9 1094.7 52.7 1.4310 49.2 | 82.7 | 45.1 | 19.8 T-16834R 23.5 9 1115.14 66.63 1.4310 47.3 | 85.9 | 40.0 | 15.9 T-16830R 23.5 6.75 1115.14 44.42 1.4310 50.8 | 78.1 | 50.4 | 23.9 T-19260R 22.5 7.5 1558.44 39.59 1.4310 61.3 | 84.7 | 61.8 | 37.5 T-16910R 15.5 8.4 1965.24 23.2 1.4310 79.4 | 81.8 | 75.6 | 80.7 T-16920R 19.5 8.4 2014.76 28.98 1.4310 78.9 | 87.9 | 82.4 | 66.2 T-16924R 19.5 11.2 2014.76 43.47 1.4310 66.0 | 87.3 | 66.5 | 44.2 T-16930R 24 8.4 2052.94 35.49 1.4310 72.8 | 88.9 | 74.3 | 55.1 T-16934R 24 11.2 2052.94 53.23 1.4310 62.1 | 88.3 | 61.3 | 36.7 T-19320R 16 9 2459.2 22.93 1.4310 89.4 | 86.7 | 83.6 | 97.9 T-19340R 21 9 2533.79 29.83 1.4310 88.4 | 94.3 | 90.0 | 80.9 T-19360R 26 9 2582.84 36.72 1.4310 79.9 | 90.7 | 82.1 | 67.0 T-17010R 17 9.6 2827.78 21.6 1.4310 86.7 | 92.4 | 87.6 | 80.2 T-17020R 22 9.6 2909.76 27.72 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-17030R 27 9.6 2964.79 33.85 1.4310 89.1 | 93.8 | 90.0 | 83.4 T-19420R 17.4 10.8 4113.81 20.41 1.4310 70.0 | 85.6 | 72.2 | 52.1 T-19440R 22.4 10.8 4240.2 26.01 1.4310 79.2 | 92.0 | 81.2 | 64.4 T-19460R 27.4 10.8 4326.15 31.69 1.4310 80.1 | 86.0 | 77.4 | 76.9 T-19520R 22.5 12 5673.53 23.34 1.4310 65.6 | 85.9 | 67.7 | 43.2 Number of similar metal springs: 19 Customs tariff number: 73202089; Torsion spring T-17020R Country of origin: DE, German; Torsion spring T-17020R Product image - Torsion springs T-17020R QR-Code: Torsion spring T-17020R
