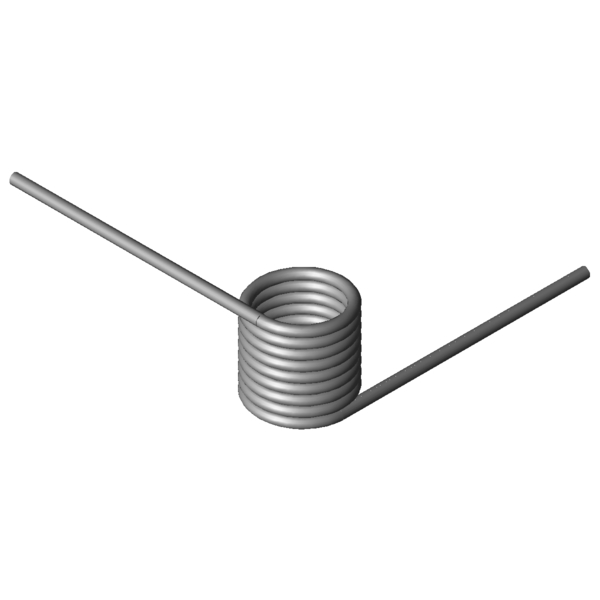

Home » Products » Torsion springs » t-17029l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° Scaled prices - Torsion spring T-17029L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-17029L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-17029L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 90 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.2 mm Wire diameter Di 22 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 29.6 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 823.31 Nmm (+/-) Tolerance maximum torque Mn 2909.76 Nmm maximum torque alphan 114.35 degree maximum rotational angle nt 8.25 pc. total number of coils Ddmax 19.3 mm maximum possible mandrel diameter Ddmin 13 mm Min. possible mandrel diameter Ditol 0.5 mm (+/-) tolerance of inner coil diameter Weight 51.5506 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° Datasheet download pdf file Metal spring characteristic Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° Metal spring characteristic download pdf file CAD data Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° force-path-calculation Torsion spring T-17029L Inquiry formular Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° Inquiry formular Torsion spring T-17029L Similar torsion springs to Torsion spring T-17029L: Stainless steel Ø 3.2 x 22 x 80 mm / 90° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16829L 18.5 20.81 1094.7 144.94 1.4310 66.1 | 85.2 | 68.4 | 44.8 T-16839L 23.5 20.81 1115.14 183.22 1.4310 59.2 | 81.2 | 60.3 | 36.1 T-19245L 17.5 23.13 1524.2 127.75 1.4310 74.7 | 85.7 | 75.9 | 62.6 T-19265L 22.5 23.13 1558.44 163.14 1.4310 73.5 | 88.4 | 75.3 | 56.7 T-16919L 15.5 25.9 1965.24 95.68 1.4310 83.0 | 81.0 | 75.2 | 92.8 T-16929L 19.5 25.9 2014.76 119.53 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16939L 24 25.9 2052.94 146.38 1.4310 89.0 | 93.8 | 89.9 | 83.2 T-19305L 12 27.75 2364.22 71.76 1.4310 73.1 | 83.3 | 78.2 | 57.9 T-19325L 16 27.75 2459.2 94.43 1.4310 72.7 | 76.4 | 68.4 | 73.2 T-19345L 21 27.75 2533.79 122.9 1.4310 87.8 | 93.2 | 88.4 | 81.8 T-19365L 26 27.75 2582.84 151.29 1.4310 88.2 | 87.2 | 78.5 | 98.7 T-17009L 12.5 29.6 2709.97 66.35 1.4310 65.4 | 78.8 | 70.7 | 46.7 T-17019L 17 29.6 2827.78 89.08 1.4310 71.1 | 87.4 | 72.9 | 53.1 T-17029L 22 29.6 2909.76 114.35 1.4310 78.9 | 87.9 | 82.5 | 66.2 T-17039L 27 29.6 2964.79 139.64 1.4310 79.5 | 82.4 | 76.8 | 79.4 T-19405L 12.4 33.3 3909.65 61.05 1.4310 54.0 | 73.2 | 59.1 | 29.8 T-19425L 17.4 33.3 4113.81 84.22 1.4310 58.6 | 81.6 | 59.7 | 34.5 T-19445L 22.4 33.3 4240.2 107.39 1.4310 64.1 | 80.9 | 68.7 | 42.7 T-19441L 22.4 15.3 4240.2 42.34 1.4310 44.3 | 74.6 | 41.5 | 16.8 T-19465L 27.4 33.3 4326.15 130.67 1.4310 80.1 | 86.0 | 77.4 | 76.9 T-19505L 17.5 37 5491.74 75.51 1.4310 49.9 | 76.6 | 49.9 | 23.2 T-19525L 22.5 37 5673.53 96.18 1.4310 65.6 | 85.9 | 67.7 | 43.1 T-19521L 22.5 17 5673.53 37.91 1.4310 36.8 | 78.7 | 25.4 | 6.4 T-19545L 27.5 37 5798.12 116.76 1.4310 68.4 | 80.0 | 74.1 | 51.2 T-19740L 20.5 41.63 7210.5 71.89 1.4310 51.8 | 78.5 | 51.6 | 25.4 T-19705L 20.5 19.13 7210.54 28.32 1.4310 39.6 | 76.3 | 32.6 | 10.0 T-19714L 25.5 19.13 7413.47 34.94 1.4310 40.3 | 74.0 | 34.9 | 12.0 T-19806L 20 21.25 9706.06 25.01 1.4310 36.0 | 75.6 | 25.9 | 6.6 T-19802L 20 16.25 9706.06 17.32 1.4310 32.3 | 69.9 | 22.6 | 4.5 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-17029L Country of origin: DE, German; Torsion spring T-17029L Product image - Torsion springs T-17029L QR-Code: Torsion spring T-17029L
