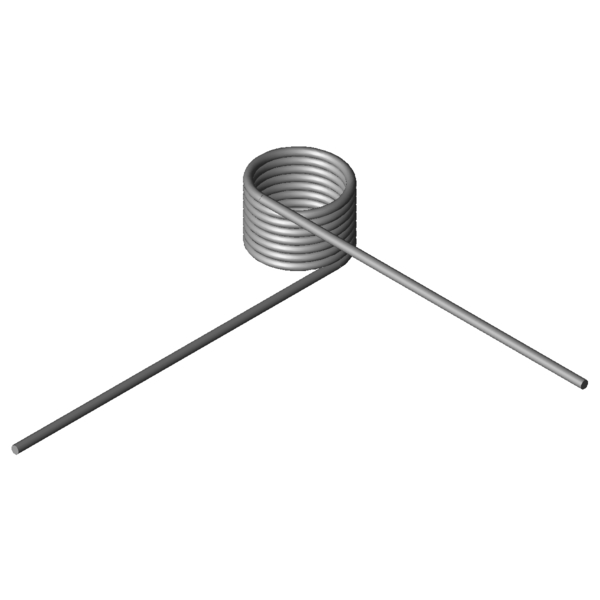

Home » Products » Torsion springs » t-18711r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° Scaled prices - Torsion spring T-18711R Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Torsion spring Buy Product image Torsion spring T-18711R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-18711R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 1.25 mm Wire diameter Di 11.25 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 10.94 mm length of spring body Ls 55 mm leg length RH mm leverage Mntol 44.21 Nmm (+/-) Tolerance maximum torque Mn 223.16 Nmm maximum torque alphan 175.63 degree maximum rotational angle nt 7.75 pc. total number of coils Ddmax 10.1 mm maximum possible mandrel diameter Ddmin 9 mm Min. possible mandrel diameter Ditol 0.3 mm (+/-) tolerance of inner coil diameter Weight 4.0083 g weight of one spring Price group J - price group Technical drawing Torsion spring Datasheet Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° force-path-calculation Torsion spring T-18711R Inquiry formular Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° Inquiry formular Torsion spring T-18711R Similar torsion springs to Torsion spring T-18711R: Stainless steel Ø 1.25 x 11.25 x 55 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18487R 9.2 7 63.01 236.41 1.4310 47.4 | 69.9 | 51.3 | 21.0 T-18536R 7.5 8.75 115.59 151.02 1.4310 68.2 | 75.5 | 68.9 | 60.2 T-18561R 9 8.75 117.41 180.5 1.4310 68.7 | 80.0 | 75.0 | 51.2 T-18586R 11.5 8.75 119.48 229.48 1.4310 64.0 | 85.9 | 65.0 | 41.0 T-18661R 6.75 10.94 212.15 106.89 1.4310 76.2 | 86.7 | 78.0 | 64.0 T-18686R 9.25 10.94 219.42 145.05 1.4310 89.5 | 94.1 | 90.5 | 84.0 T-18711R 11.25 10.94 223.16 175.63 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-18736R 14.25 10.94 226.96 221.42 1.4310 87.5 | 93.0 | 88.8 | 80.7 T-16711R 7.5 12.25 275.27 97.97 1.4310 65.1 | 81.8 | 68.4 | 45.2 T-16723R 10.4 12.25 285.09 134.52 1.4310 75.9 | 90.3 | 77.4 | 60.0 T-16719R 10.4 6.65 285.09 65.09 1.4310 55.8 | 80.8 | 57.7 | 29.0 T-16735R 12.6 12.25 289.84 162.26 1.4310 81.7 | 89.3 | 84.7 | 71.1 T-16731R 12.6 6.65 289.84 78.51 1.4310 58.4 | 79.8 | 60.8 | 34.4 T-18811R 8.9 14 429.24 105.78 1.4310 55.3 | 78.5 | 56.1 | 31.3 T-18807R 8.9 7.6 429.24 51.18 1.4310 43.8 | 75.6 | 40.6 | 15.2 T-18836R 11.9 14 442.58 140.15 1.4310 63.0 | 83.6 | 65.1 | 40.2 T-18832R 11.9 7.6 442.58 67.77 1.4310 48.2 | 80.7 | 44.5 | 19.5 T-18828R 11.9 6 442.58 49.7 1.4310 43.2 | 75.8 | 39.4 | 14.3 T-18907R 10 8.55 554.97 46.37 1.4310 40.9 | 78.8 | 33.3 | 10.6 T-18903R 10 6.76 554.97 34.04 1.4310 37.0 | 73.4 | 29.8 | 7.8 T-18911R 10 15.75 554.97 95.83 1.4310 48.4 | 75.9 | 47.4 | 21.9 T-18919R 13.5 8.55 572.76 62.05 1.4310 42.6 | 77.0 | 37.1 | 13.8 Number of similar metal springs: 21 Customs tariff number: 73202089; Torsion spring T-18711R Country of origin: DE, German; Torsion spring T-18711R Product image - Torsion springs T-18711R QR-Code: Torsion spring T-18711R
