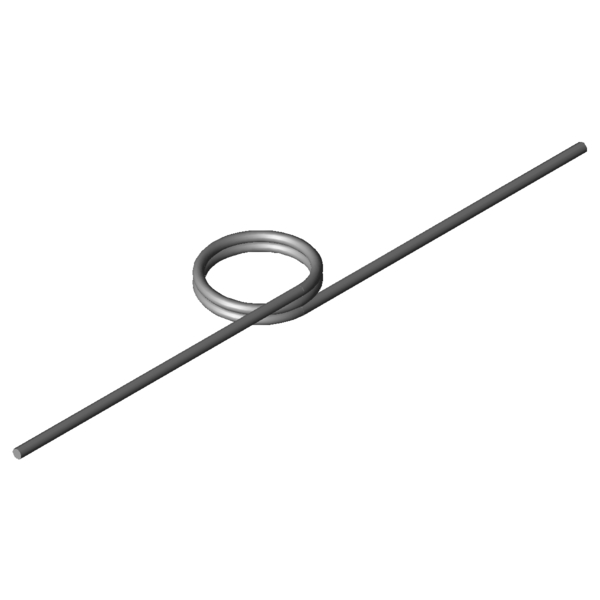

Home » Products » Torsion springs » t-18924l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° Scaled prices - Torsion spring T-18924L Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-18924L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-18924L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 1.8 mm Wire diameter Di 16 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 5.4 mm length of spring body Ls 60 mm leg length RH mm leverage Mntol 183.73 Nmm (+/-) Tolerance maximum torque Mn 581.21 Nmm maximum torque alphan 39.07 degree maximum rotational angle nt 2 pc. total number of coils Ddmax 13.8 mm maximum possible mandrel diameter Ddmin 10 mm Min. possible mandrel diameter Ditol 0.4 mm (+/-) tolerance of inner coil diameter Weight 4.6513 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° force-path-calculation Torsion spring T-18924L Inquiry formular Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° Inquiry formular Torsion spring T-18924L Similar torsion springs to Torsion spring T-18924L: Stainless steel Ø 1.8 x 16 x 60 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16728L 12.6 5.6 289.84 62.81 1.4310 57.1 | 84.3 | 56.0 | 31.0 T-16724L 12.6 4.2 289.84 41.87 1.4310 65.4 | 78.1 | 71.6 | 46.5 T-16740L 16.2 5.6 295.06 80.39 1.4310 55.1 | 91.0 | 49.7 | 24.7 T-16736L 16.2 4.2 295.06 53.59 1.4310 61.2 | 84.8 | 61.8 | 37.0 T-16744L 16.2 7 295.06 107.18 1.4310 48.9 | 84.6 | 43.6 | 18.5 T-18825L 11.9 4.8 442.58 36.14 1.4310 83.6 | 84.1 | 84.3 | 82.3 T-18829L 11.9 6.4 442.58 54.22 1.4310 70.5 | 82.5 | 74.1 | 54.9 T-18850L 14.4 4.8 449.91 43.54 1.4310 80.8 | 89.3 | 83.6 | 69.5 T-18854L 14.4 6.4 449.91 65.31 1.4310 67.6 | 87.8 | 68.6 | 46.3 T-18875L 18.4 4.8 457.84 55.43 1.4310 72.8 | 88.2 | 74.6 | 55.5 T-18879L 18.4 6.4 457.84 83.1 1.4310 62.2 | 86.7 | 62.9 | 37.0 T-18900L 10 5.4 554.97 24.73 1.4310 77.7 | 87.5 | 79.4 | 66.3 T-18912L 13.5 5.4 572.76 33.09 1.4310 90.8 | 94.8 | 91.6 | 85.9 T-18916L 13.5 7.2 572.76 49.64 1.4310 84.2 | 86.5 | 88.6 | 77.6 T-18924L 16 5.4 581.21 39.07 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-18936L 20.5 5.4 591.67 49.83 1.4310 86.9 | 92.7 | 88.3 | 79.8 T-19100L 11 6 798.72 25.73 1.4310 66.7 | 82.9 | 69.3 | 47.9 T-19125L 15 6 825.31 34.82 1.4310 77.9 | 91.3 | 79.8 | 62.8 T-19150L 18 6 838.31 41.52 1.4310 81.7 | 89.6 | 81.7 | 73.7 T-16810L 15.5 6.75 1076.95 29.57 1.4310 59.0 | 82.3 | 60.7 | 34.0 T-16820L 18.5 6.75 1094.7 35.14 1.4310 67.1 | 82.2 | 71.5 | 47.8 T-19240L 17.5 7.5 1524.2 30.99 1.4310 66.6 | 86.0 | 68.0 | 45.9 Number of similar metal springs: 21 Customs tariff number: 73202089; Torsion spring T-18924L Country of origin: DE, German; Torsion spring T-18924L Product image - Torsion springs T-18924L QR-Code: Torsion spring T-18924L
