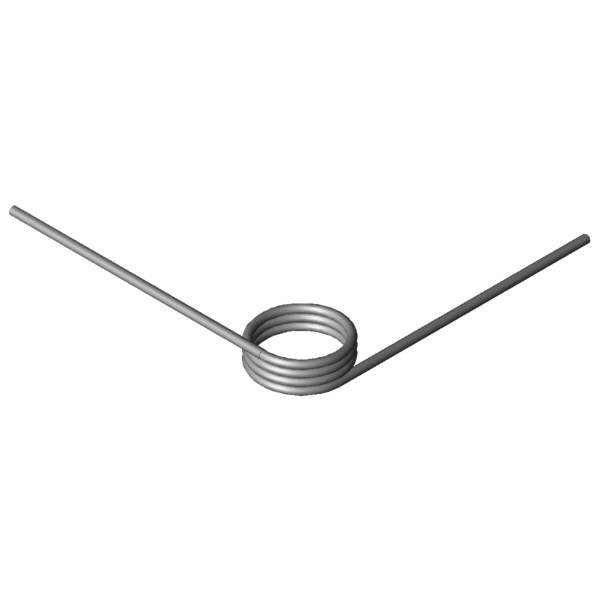

Home » Products » Torsion springs » t-18929l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° Scaled prices - Torsion spring T-18929L Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-18929L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-18929L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 90 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 1.8 mm Wire diameter Di 16 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 7.65 mm length of spring body Ls 60 mm leg length RH mm leverage Mntol 163.52 Nmm (+/-) Tolerance maximum torque Mn 581.21 Nmm maximum torque alphan 63.49 degree maximum rotational angle nt 3.25 pc. total number of coils Ddmax 13.8 mm maximum possible mandrel diameter Ddmin 10 mm Min. possible mandrel diameter Ditol 0.4 mm (+/-) tolerance of inner coil diameter Weight 6.0533 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° Datasheet download pdf file Metal spring characteristic Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° Metal spring characteristic download pdf file CAD data Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° force-path-calculation Torsion spring T-18929L Inquiry formular Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° Inquiry formular Torsion spring T-18929L Similar torsion springs to Torsion spring T-18929L: Stainless steel Ø 1.8 x 16 x 60 mm / 90° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18734L 14.25 7.81 226.96 150.04 1.4310 47.6 | 85.5 | 40.7 | 16.5 T-18730L 14.25 5.31 226.96 92.86 1.4310 52.1 | 76.0 | 53.7 | 26.7 T-16733L 12.6 8.75 289.84 109.92 1.4310 54.6 | 81.3 | 53.8 | 28.8 T-16745L 16.2 8.75 295.06 140.67 1.4310 53.0 | 88.0 | 48.0 | 22.9 T-16741L 16.2 5.95 295.06 87.08 1.4310 61.2 | 84.8 | 61.8 | 37.0 T-16737L 16.2 4.55 295.06 60.29 1.4310 68.3 | 78.7 | 72.9 | 53.5 T-18830L 11.9 6.8 442.58 58.73 1.4310 83.6 | 84.1 | 84.3 | 82.3 T-18855L 14.4 6.8 449.91 70.82 1.4310 80.7 | 89.3 | 83.5 | 69.4 T-18859L 14.4 10 449.91 114.36 1.4310 64.9 | 85.1 | 66.5 | 43.0 T-18851L 14.4 5.2 449.91 49.05 1.4310 86.5 | 82.3 | 77.3 | 99.8 T-18880L 18.4 6.8 457.84 90.02 1.4310 72.8 | 88.2 | 74.7 | 55.6 T-18905L 10 7.65 554.97 40.19 1.4310 77.7 | 87.5 | 79.4 | 66.3 T-18917L 13.5 7.65 572.76 53.78 1.4310 90.8 | 94.8 | 91.6 | 86.0 T-18913L 13.5 5.85 572.76 37.23 1.4310 75.0 | 86.9 | 78.6 | 59.5 T-18929L 16 7.65 581.21 63.49 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-18941L 20.5 7.65 591.67 80.97 1.4310 86.9 | 92.7 | 88.3 | 79.8 T-19105L 11 8.5 798.72 41.83 1.4310 66.7 | 82.9 | 69.3 | 47.9 T-19130L 15 8.5 825.31 56.52 1.4310 77.9 | 91.3 | 79.7 | 62.7 T-19126L 15 6.5 825.31 39.16 1.4310 66.4 | 89.6 | 66.1 | 43.4 T-19155L 18 8.5 838.31 67.51 1.4310 81.7 | 89.6 | 81.7 | 73.7 T-19151L 18 6.5 838.31 46.76 1.4310 70.2 | 88.0 | 71.5 | 51.1 T-16801L 11.5 7.31 1041.37 24.92 1.4310 50.6 | 82.5 | 47.5 | 21.9 T-16811L 15.5 7.31 1076.95 33.26 1.4310 57.4 | 90.8 | 53.2 | 28.3 T-16815L 15.5 9.56 1076.95 48.05 1.4310 63.8 | 85.6 | 64.8 | 40.8 T-16821L 18.5 7.31 1094.7 39.53 1.4310 59.4 | 87.3 | 57.7 | 33.1 T-16825L 18.5 9.56 1094.7 57.1 1.4310 67.1 | 82.2 | 71.5 | 47.7 T-16911L 15.5 9.1 1965.24 26.09 1.4310 43.1 | 81.7 | 35.3 | 12.2 T-16921L 19.5 9.1 2014.76 32.6 1.4310 43.9 | 76.8 | 40.1 | 14.8 T-17011L 17 10.4 2827.78 24.3 1.4310 37.3 | 74.6 | 29.4 | 7.9 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-18929L Country of origin: DE, German; Torsion spring T-18929L Product image - Torsion springs T-18929L QR-Code: Torsion spring T-18929L
