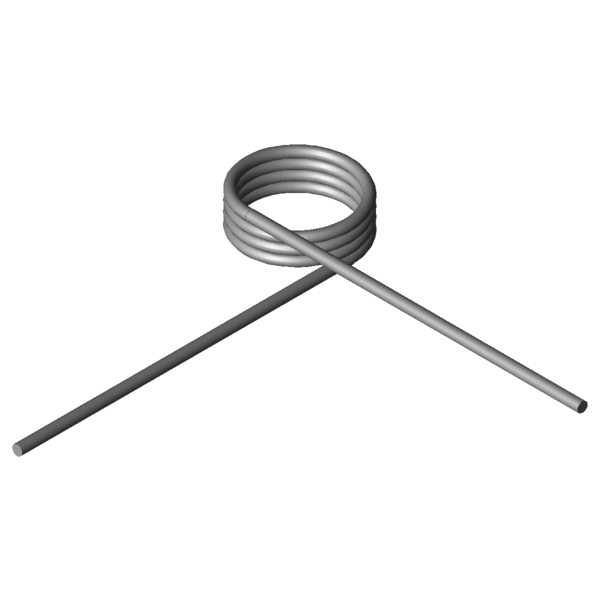

Home » Products » Torsion springs » t-18931r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° Scaled prices - Torsion spring T-18931R Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-18931R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-18931R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 1.8 mm Wire diameter Di 16 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 8.55 mm length of spring body Ls 60 mm leg length RH mm leverage Mntol 158 Nmm (+/-) Tolerance maximum torque Mn 581.21 Nmm maximum torque alphan 73.25 degree maximum rotational angle nt 3.75 pc. total number of coils Ddmax 13.8 mm maximum possible mandrel diameter Ddmin 10 mm Min. possible mandrel diameter Ditol 0.4 mm (+/-) tolerance of inner coil diameter Weight 6.6141 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° force-path-calculation Torsion spring T-18931R Inquiry formular Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° Inquiry formular Torsion spring T-18931R Similar torsion springs to Torsion spring T-18931R: Stainless steel Ø 1.8 x 16 x 60 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18736R 14.25 10.94 226.96 221.42 1.4310 42.6 | 78.9 | 36.1 | 12.9 T-18732R 14.25 5.94 226.96 107.16 1.4310 52.1 | 76.0 | 53.7 | 26.7 T-16731R 12.6 6.65 289.84 78.51 1.4310 65.4 | 78.1 | 71.6 | 46.5 T-16743R 16.2 6.65 295.06 100.48 1.4310 61.2 | 84.8 | 61.8 | 37.0 T-16739R 16.2 5.25 295.06 73.77 1.4310 68.3 | 79.3 | 75.0 | 50.4 T-16747R 16.2 12.25 295.06 207.66 1.4310 47.7 | 82.1 | 43.0 | 17.9 T-18832R 11.9 7.6 442.58 67.77 1.4310 83.6 | 84.1 | 84.3 | 82.3 T-18857R 14.4 7.6 449.91 81.66 1.4310 80.8 | 89.3 | 83.6 | 69.4 T-18853R 14.4 6 449.91 59.89 1.4310 85.8 | 83.0 | 79.6 | 94.7 T-18882R 18.4 7.6 457.84 103.85 1.4310 72.8 | 88.2 | 74.7 | 55.6 T-18878R 18.4 6 457.84 76.18 1.4310 81.7 | 82.0 | 87.5 | 75.7 T-18907R 10 8.55 554.97 46.37 1.4310 77.7 | 87.5 | 79.4 | 66.3 T-18919R 13.5 8.55 572.76 62.05 1.4310 90.8 | 94.8 | 91.6 | 86.0 T-18915R 13.5 6.76 572.76 45.55 1.4310 77.1 | 87.8 | 80.4 | 63.1 T-18931R 16 8.55 581.21 73.25 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-18943R 20.5 8.55 591.67 93.43 1.4310 86.9 | 92.7 | 88.3 | 79.8 T-19107R 11 9.5 798.72 48.31 1.4310 66.8 | 82.9 | 69.4 | 48.0 T-19103R 11 7.5 798.72 35.45 1.4310 59.3 | 82.2 | 60.6 | 35.2 T-19132R 15 9.5 825.31 65.2 1.4310 77.9 | 91.3 | 79.7 | 62.7 T-19128R 15 7.5 825.31 47.84 1.4310 68.1 | 90.5 | 67.9 | 46.0 T-19157R 18 9.5 838.31 77.89 1.4310 81.7 | 89.6 | 81.7 | 73.7 T-19153R 18 7.5 838.31 57.14 1.4310 72.2 | 88.9 | 73.7 | 54.1 T-16803R 11.5 8.44 1041.37 30.45 1.4310 51.8 | 83.5 | 48.7 | 23.2 T-16813R 15.5 8.44 1076.95 40.66 1.4310 58.9 | 91.9 | 54.7 | 30.0 T-16823R 18.5 8.44 1094.7 48.31 1.4310 61.0 | 88.4 | 59.5 | 35.0 T-16913R 15.5 10.5 1965.24 31.89 1.4310 43.4 | 80.9 | 36.6 | 12.9 T-16923R 19.5 10.5 2014.76 39.84 1.4310 44.4 | 75.9 | 41.6 | 15.7 T-17013R 17 12 2827.78 29.69 1.4310 37.6 | 73.9 | 30.5 | 8.3 Number of similar metal springs: 27 Customs tariff number: 73202089; Torsion spring T-18931R Country of origin: DE, German; Torsion spring T-18931R Product image - Torsion springs T-18931R QR-Code: Torsion spring T-18931R
