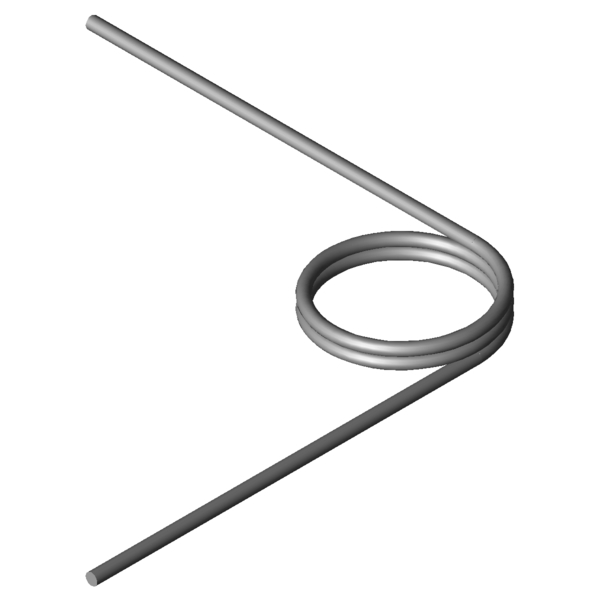

Home » Products » Torsion springs » t-18937r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° Scaled prices - Torsion spring T-18937R Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-18937R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-18937R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 90 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 1.8 mm Wire diameter Di 20.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 5.85 mm length of spring body Ls 60 mm leg length RH mm leverage Mntol 159.57 Nmm (+/-) Tolerance maximum torque Mn 591.67 Nmm maximum torque alphan 56.06 degree maximum rotational angle nt 2.25 pc. total number of coils Ddmax 17.4 mm maximum possible mandrel diameter Ddmin 12 mm Min. possible mandrel diameter Ditol 0.5 mm (+/-) tolerance of inner coil diameter Weight 5.5697 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° Datasheet download pdf file Metal spring characteristic Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° Metal spring characteristic download pdf file CAD data Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° force-path-calculation Torsion spring T-18937R Inquiry formular Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° Inquiry formular Torsion spring T-18937R Similar torsion springs to Torsion spring T-18937R: Stainless steel Ø 1.8 x 20.5 x 60 mm / 90° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16729R 12.6 5.95 289.84 68.04 1.4310 61.7 | 79.2 | 65.7 | 40.4 T-16725R 12.6 4.55 289.84 47.11 1.4310 65.7 | 72.3 | 66.5 | 58.3 T-16741R 16.2 5.95 295.06 87.08 1.4310 58.1 | 85.0 | 57.1 | 32.1 T-16737R 16.2 4.55 295.06 60.29 1.4310 65.3 | 78.2 | 71.4 | 46.4 T-18826R 11.9 5.2 442.58 40.66 1.4310 83.1 | 78.6 | 73.7 | 97.0 T-18830R 11.9 6.8 442.58 58.73 1.4310 78.1 | 77.7 | 85.1 | 71.4 T-18851R 14.4 5.2 449.91 49.05 1.4310 83.8 | 82.7 | 81.8 | 86.9 T-18855R 14.4 6.8 449.91 70.82 1.4310 73.2 | 81.7 | 77.6 | 60.2 T-18876R 18.4 5.2 457.84 62.35 1.4310 80.8 | 89.2 | 83.6 | 69.6 T-18880R 18.4 6.8 457.84 90.02 1.4310 68.7 | 88.2 | 69.8 | 48.2 T-18901R 10 5.85 554.97 27.82 1.4310 69.2 | 82.9 | 71.7 | 52.9 T-18913R 13.5 5.85 572.76 37.23 1.4310 79.6 | 88.6 | 81.6 | 68.6 T-18925R 16 5.85 581.21 43.95 1.4310 86.9 | 92.7 | 88.3 | 79.8 T-18929R 16 7.65 581.21 63.49 1.4310 88.3 | 84.8 | 93.3 | 86.7 T-18937R 20.5 5.85 591.67 56.06 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19101R 11 6.5 798.72 28.97 1.4310 59.7 | 77.9 | 62.9 | 38.3 T-19126R 15 6.5 825.31 39.16 1.4310 68.4 | 84.4 | 70.8 | 50.1 T-19151R 18 6.5 838.31 46.76 1.4310 75.0 | 89.3 | 77.0 | 58.9 T-19155R 18 8.5 838.31 67.51 1.4310 81.3 | 82.2 | 76.8 | 85.0 T-19176R 23 6.5 853.09 59.45 1.4310 81.7 | 89.7 | 81.8 | 73.6 T-19180R 23 8.5 853.09 85.9 1.4310 81.4 | 82.7 | 67.3 | 94.1 T-16811R 15.5 7.31 1076.95 33.26 1.4310 56.1 | 78.5 | 57.1 | 32.6 T-16821R 18.5 7.31 1094.7 39.53 1.4310 61.3 | 83.4 | 62.3 | 38.1 T-16831R 23.5 7.31 1115.14 49.97 1.4310 66.9 | 82.4 | 71.1 | 47.3 T-16921R 19.5 9.1 2014.76 32.6 1.4310 45.1 | 74.6 | 43.8 | 17.1 Number of similar metal springs: 24 Customs tariff number: 73202089; Torsion spring T-18937R Country of origin: DE, German; Torsion spring T-18937R Product image - Torsion springs T-18937R QR-Code: Torsion spring T-18937R
