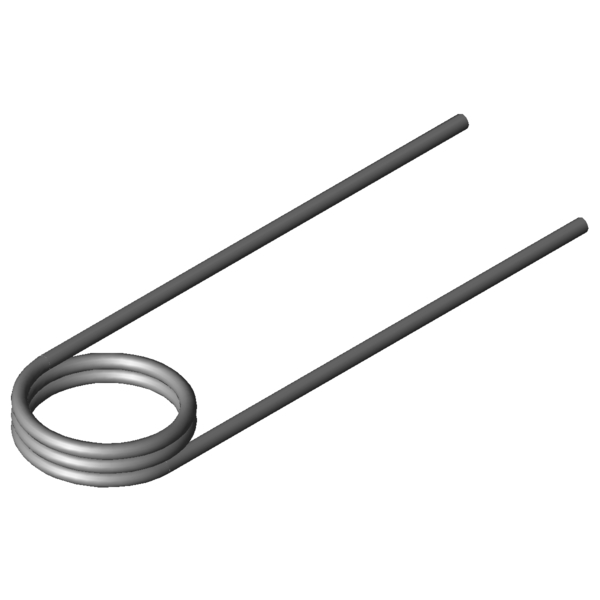

Home » Products » Torsion springs » t-19152l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° Scaled prices - Torsion spring T-19152L Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-19152L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19152L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 180 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2 mm Wire diameter Di 18 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 7 mm length of spring body Ls 70 mm leg length RH mm leverage Mntol 237.56 Nmm (+/-) Tolerance maximum torque Mn 838.31 Nmm maximum torque alphan 51.99 degree maximum rotational angle nt 2.5 pc. total number of coils Ddmax 16.2 mm maximum possible mandrel diameter Ddmin 14.4 mm Min. possible mandrel diameter Ditol 0.44 mm (+/-) tolerance of inner coil diameter Weight 7.3581 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° Datasheet download pdf file Metal spring characteristic Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° Metal spring characteristic download pdf file CAD data Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° force-path-calculation Torsion spring T-19152L Inquiry formular Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° Inquiry formular Torsion spring T-19152L Similar torsion springs to Torsion spring T-19152L: Stainless steel Ø 2 x 18 x 70 mm / 180° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18827L 11.9 5.6 442.58 45.18 1.4310 68.7 | 75.4 | 69.8 | 60.8 T-18856L 14.4 7.2 449.91 76.24 1.4310 68.6 | 80.0 | 74.5 | 51.2 T-18852L 14.4 5.6 449.91 54.47 1.4310 68.6 | 80.0 | 74.6 | 51.2 T-18881L 18.4 7.2 457.84 96.94 1.4310 63.9 | 85.9 | 64.8 | 41.0 T-18877L 18.4 5.6 457.84 69.27 1.4310 70.8 | 80.0 | 74.9 | 57.4 T-18914L 13.5 6.3 572.76 41.37 1.4310 81.6 | 85.0 | 73.9 | 85.9 T-18918L 13.5 8.1 572.76 57.91 1.4310 81.6 | 85.0 | 74.0 | 85.8 T-18926L 16 6.3 581.21 48.84 1.4310 82.7 | 83.0 | 68.2 | 96.8 T-18930L 16 8.1 581.21 68.37 1.4310 81.7 | 89.6 | 81.7 | 73.8 T-18938L 20.5 6.3 591.67 62.28 1.4310 81.0 | 82.6 | 78.1 | 82.4 T-18942L 20.5 8.1 591.67 87.2 1.4310 75.1 | 89.3 | 77.0 | 58.9 T-19102L 11 7 798.72 32.21 1.4310 76.9 | 87.0 | 78.6 | 65.0 T-19127L 15 7 825.31 43.5 1.4310 75.6 | 87.0 | 79.1 | 60.7 T-19131L 15 9 825.31 60.86 1.4310 90.2 | 94.4 | 91.1 | 85.0 T-19152L 18 7 838.31 51.99 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19177L 23 7 853.09 66.09 1.4310 87.1 | 92.8 | 88.5 | 80.1 T-16802L 11.5 7.88 1041.37 27.69 1.4310 56.7 | 80.1 | 59.3 | 30.6 T-16812L 15.5 7.88 1076.95 36.96 1.4310 63.8 | 87.5 | 64.3 | 39.5 T-16822L 18.5 7.88 1094.7 43.92 1.4310 68.7 | 91.2 | 68.5 | 46.2 T-16832L 23.5 7.88 1115.14 55.52 1.4310 72.5 | 84.3 | 75.7 | 57.4 T-16912L 15.5 9.8 1965.24 28.99 1.4310 47.1 | 83.1 | 41.3 | 17.0 T-16922L 19.5 9.8 2014.76 36.22 1.4310 40.6 | 76.4 | 34.2 | 11.2 Number of similar metal springs: 21 Customs tariff number: 73202089; Torsion spring T-19152L Country of origin: DE, German; Torsion spring T-19152L Product image - Torsion springs T-19152L QR-Code: Torsion spring T-19152L
