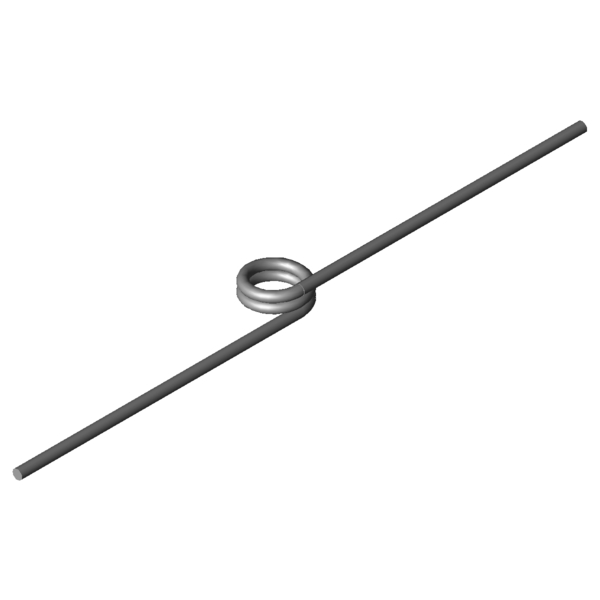

Home » Products » Torsion springs » t-19200r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Scaled prices - Torsion spring T-19200R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-19200R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19200R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.5 mm Wire diameter Di 10 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 7.5 mm length of spring body Ls 75 mm leg length RH mm leverage Mntol 692.27 Nmm (+/-) Tolerance maximum torque Mn 1422.19 Nmm maximum torque alphan 18.11 degree maximum rotational angle nt 2 pc. total number of coils Ddmax 9 mm maximum possible mandrel diameter Ddmin 8 mm Min. possible mandrel diameter Ditol 0.27 mm (+/-) tolerance of inner coil diameter Weight 8.8453 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° force-path-calculation Torsion spring T-19200R Inquiry formular Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Inquiry formular Torsion spring T-19200R Similar torsion springs to Torsion spring T-19200R: Stainless steel Ø 2.5 x 10 x 75 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18808R 8.9 8 429.24 54.6 1.4310 41.3 | 82.3 | 31.7 | 10.0 T-18804R 8.9 6.4 429.24 40.93 1.4310 43.3 | 79.4 | 37.2 | 13.4 T-18800R 8.9 4.8 429.24 27.25 1.4310 46.9 | 72.3 | 48.3 | 20.1 T-18833R 11.9 8 442.58 72.29 1.4310 38.8 | 80.6 | 28.1 | 7.8 T-18829R 11.9 6.4 442.58 54.22 1.4310 40.1 | 77.8 | 32.3 | 10.4 T-18904R 10 7.2 554.97 37.1 1.4310 50.8 | 89.3 | 43.9 | 19.0 T-18908R 10 9 554.97 49.46 1.4310 45.7 | 85.1 | 37.8 | 14.3 T-18900R 10 5.4 554.97 24.73 1.4310 55.3 | 81.3 | 56.1 | 28.6 T-18916R 13.5 7.2 572.76 49.64 1.4310 44.6 | 80.7 | 38.4 | 14.7 T-19104R 11 8 798.72 38.6 1.4310 55.4 | 88.2 | 51.5 | 26.3 T-19100R 11 6 798.72 25.73 1.4310 62.1 | 83.6 | 63.3 | 39.5 T-19108R 11 10 798.72 51.55 1.4310 49.1 | 82.0 | 45.6 | 19.7 T-16800R 11.5 6.75 1041.37 22.15 1.4310 75.4 | 89.0 | 77.5 | 59.9 T-16804R 11.5 9 1041.37 33.22 1.4310 63.5 | 86.8 | 63.9 | 39.9 T-19200R 10 7.5 1422.19 18.11 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19220R 13.5 7.5 1481.57 24.1 1.4310 85.1 | 91.4 | 85.6 | 78.3 T-16900R 11.5 8.4 1888.38 17.42 1.4310 82.2 | 88.5 | 85.8 | 72.4 T-19300R 12 9 2364.22 17.35 1.4310 73.0 | 83.3 | 78.0 | 57.6 Number of similar metal springs: 17 Customs tariff number: 73202089; Torsion spring T-19200R Country of origin: DE, German; Torsion spring T-19200R Product image - Torsion springs T-19200R QR-Code: Torsion spring T-19200R
