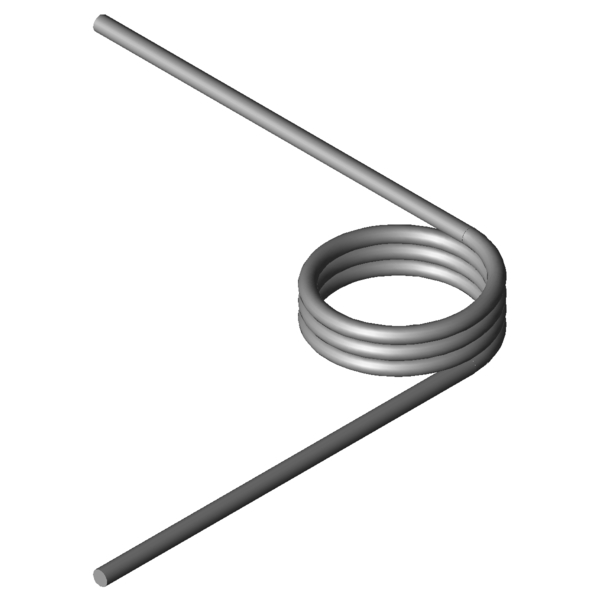

Home » Products » Torsion springs » t-19361r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° Scaled prices - Torsion spring T-19361R Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-19361R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19361R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 90 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3 mm Wire diameter Di 26 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 12.75 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 765.7 Nmm (+/-) Tolerance maximum torque Mn 2582.84 Nmm maximum torque alphan 59.62 degree maximum rotational angle nt 3.25 pc. total number of coils Ddmax 23.4 mm maximum possible mandrel diameter Ddmin 20.8 mm Min. possible mandrel diameter Ditol 0.6 mm (+/-) tolerance of inner coil diameter Weight 25.4157 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° Datasheet download pdf file Metal spring characteristic Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° Metal spring characteristic download pdf file CAD data Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° force-path-calculation Torsion spring T-19361R Inquiry formular Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° Inquiry formular Torsion spring T-19361R Similar torsion springs to Torsion spring T-19361R: Stainless steel Ø 3 x 26 x 80 mm / 90° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18945R 20.5 11.25 591.67 130.8 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19134R 15 12.5 825.31 91.34 1.4310 68.4 | 84.4 | 70.8 | 50.1 T-19159R 18 12.5 838.31 109.13 1.4310 75.1 | 89.3 | 77.0 | 58.9 T-19184R 23 12.5 853.09 138.72 1.4310 81.7 | 89.7 | 81.8 | 73.6 T-19180R 23 8.5 853.09 85.9 1.4310 66.0 | 84.9 | 67.5 | 45.5 T-16835R 23.5 9.56 1115.14 72.18 1.4310 55.8 | 84.1 | 54.1 | 29.3 T-19241R 17.5 10.63 1524.2 50.31 1.4310 45.8 | 84.0 | 38.6 | 14.9 T-19261R 22.5 10.63 1558.44 64.3 1.4310 49.4 | 85.9 | 43.6 | 18.7 T-16915R 15.5 11.9 1965.24 37.69 1.4310 38.8 | 78.1 | 29.5 | 8.7 T-16925R 19.5 11.9 2014.76 47.09 1.4310 42.6 | 84.6 | 32.7 | 10.6 T-16935R 24 11.9 2052.94 57.66 1.4310 43.5 | 81.4 | 36.5 | 12.7 T-16931R 24 9.1 2052.94 39.92 1.4310 81.0 | 85.7 | 73.2 | 84.2 T-19321R 16 12.75 2459.2 37.23 1.4310 77.2 | 87.2 | 78.8 | 65.6 T-19341R 21 12.75 2533.79 48.42 1.4310 88.7 | 93.6 | 89.7 | 82.8 T-19361R 26 12.75 2582.84 59.62 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-17015R 17 13.6 2827.78 35.09 1.4310 71.0 | 84.3 | 75.1 | 53.8 T-17025R 22 13.6 2909.76 45.05 1.4310 80.0 | 90.7 | 82.2 | 67.1 T-17021R 22 10.4 2909.76 31.19 1.4310 67.9 | 86.6 | 70.5 | 46.4 T-17035R 27 13.6 2964.79 55.01 1.4310 88.2 | 94.6 | 89.7 | 80.4 T-17031R 27 10.4 2964.79 38.08 1.4310 73.9 | 90.5 | 75.5 | 55.6 T-19441R 22.4 15.3 4240.2 42.34 1.4310 64.5 | 84.3 | 66.0 | 43.3 T-19461R 27.4 15.3 4326.15 51.43 1.4310 70.6 | 87.2 | 73.0 | 51.5 T-19521R 22.5 17 5673.53 37.91 1.4310 54.1 | 78.8 | 54.6 | 28.9 T-19541R 27.5 17 5960.44 46.01 1.4310 58.4 | 81.5 | 60.3 | 33.4 T-19701R 20.5 14.63 7210.54 19.61 1.4310 41.2 | 77.6 | 34.4 | 11.8 T-19710R 25.5 14.63 7413.47 24.19 1.4310 45.3 | 84.0 | 37.7 | 14.1 T-19719R 30.5 14.63 7558.94 28.77 1.4310 45.8 | 79.7 | 41.2 | 16.5 T-19802R 20 16.25 9706.06 17.32 1.4310 35.8 | 71.8 | 27.8 | 7.7 T-19816R 28 16.25 10155.28 23.91 1.4310 40.0 | 77.1 | 32.8 | 10.2 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-19361R Country of origin: DE, German; Torsion spring T-19361R Product image - Torsion springs T-19361R QR-Code: Torsion spring T-19361R
