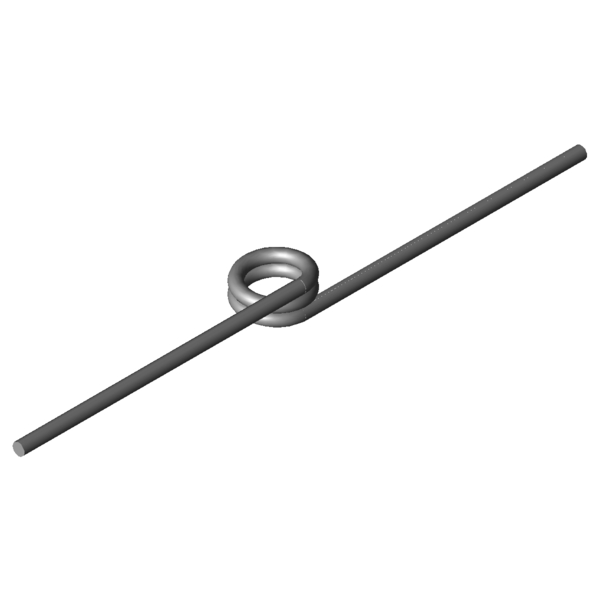

Home » Products » Torsion springs » t-19400l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° Scaled prices - Torsion spring T-19400L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-19400L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19400L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.6 mm Wire diameter Di 12.4 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 10.8 mm length of spring body Ls 85 mm leg length RH mm leverage Mntol 2192.49 Nmm (+/-) Tolerance maximum torque Mn 3909.65 Nmm maximum torque alphan 14.81 degree maximum rotational angle nt 2 pc. total number of coils Ddmax 11.1 mm maximum possible mandrel diameter Ddmin 9.9 mm Min. possible mandrel diameter Ditol 0.32 mm (+/-) tolerance of inner coil diameter Weight 21.7113 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° force-path-calculation Torsion spring T-19400L Inquiry formular Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° Inquiry formular Torsion spring T-19400L Similar torsion springs to Torsion spring T-19400L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16804L 11.5 9 1041.37 33.22 1.4310 42.3 | 79.5 | 35.6 | 11.9 T-16800L 11.5 6.75 1041.37 22.15 1.4310 45.7 | 72.6 | 46.7 | 17.8 T-16814L 15.5 9 1076.95 44.35 1.4310 38.3 | 75.3 | 30.5 | 9.2 T-19200L 10 7.5 1422.19 18.11 1.4310 54.0 | 73.2 | 59.1 | 29.7 T-19220L 13.5 7.5 1481.57 24.1 1.4310 50.0 | 76.9 | 49.7 | 23.3 T-16904L 11.5 11.2 1888.38 26.12 1.4310 56.3 | 89.0 | 52.5 | 27.4 T-16900L 11.5 8.4 1888.38 17.42 1.4310 63.5 | 82.8 | 66.7 | 41.1 T-16914L 15.5 11.2 1965.24 34.79 1.4310 50.9 | 84.7 | 46.4 | 21.4 T-16910L 15.5 8.4 1965.24 23.2 1.4310 55.9 | 78.5 | 57.1 | 32.1 T-19300L 12 9 2364.22 17.35 1.4310 70.8 | 87.8 | 72.9 | 51.6 T-19320L 16 9 2459.2 22.93 1.4310 61.9 | 81.4 | 63.7 | 40.6 T-17000L 12.5 9.6 2709.97 16.09 1.4310 78.9 | 92.3 | 80.7 | 63.8 T-17004L 12.5 12.8 2709.97 24.13 1.4310 66.2 | 90.8 | 65.3 | 42.5 T-17010L 17 9.6 2827.78 21.6 1.4310 67.9 | 83.6 | 70.4 | 49.6 T-19400L 12.4 10.8 3909.65 14.81 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19420L 17.4 10.8 4113.81 20.41 1.4310 83.5 | 90.4 | 83.8 | 76.4 Number of similar metal springs: 15 Customs tariff number: 73202089; Torsion spring T-19400L Country of origin: DE, German; Torsion spring T-19400L Product image - Torsion springs T-19400L QR-Code: Torsion spring T-19400L
