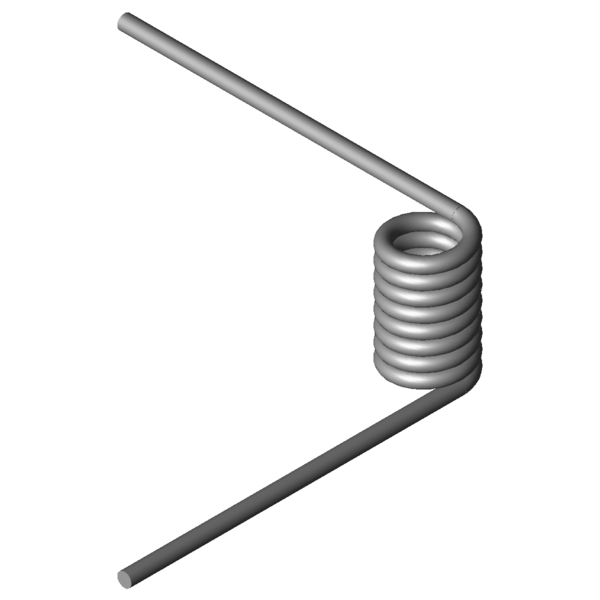

Home » Products » Torsion springs » t-19405r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° Scaled prices - Torsion spring T-19405R Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-19405R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19405R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 90 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.6 mm Wire diameter Di 12.4 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 33.3 mm length of spring body Ls 85 mm leg length RH mm leverage Mntol 1560.4 Nmm (+/-) Tolerance maximum torque Mn 3909.65 Nmm maximum torque alphan 61.05 degree maximum rotational angle nt 8.25 pc. total number of coils Ddmax 11.1 mm maximum possible mandrel diameter Ddmin 9.9 mm Min. possible mandrel diameter Ditol 0.32 mm (+/-) tolerance of inner coil diameter Weight 46.916 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° Datasheet download pdf file Metal spring characteristic Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° Metal spring characteristic download pdf file CAD data Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° force-path-calculation Torsion spring T-19405R Inquiry formular Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° Inquiry formular Torsion spring T-19405R Similar torsion springs to Torsion spring T-19405R: Stainless steel Ø 3.6 x 12.4 x 85 mm / 90° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-19225R 13.5 23.13 1481.57 99.12 1.4310 50.0 | 76.9 | 49.7 | 23.3 T-19245R 17.5 23.13 1524.2 127.75 1.4310 44.0 | 69.9 | 43.4 | 18.6 T-16909R 11.5 25.9 1888.38 71.84 1.4310 63.5 | 82.8 | 66.6 | 41.0 T-16905R 11.5 11.9 1888.38 28.3 1.4310 70.7 | 68.8 | 47.3 | 96.0 T-16901R 11.5 9.1 1888.38 19.59 1.4310 57.5 | 65.9 | 40.2 | 66.4 T-16919R 15.5 25.9 1965.24 95.68 1.4310 55.9 | 78.5 | 57.0 | 32.1 T-16929R 19.5 25.9 2014.76 119.53 1.4310 50.2 | 73.0 | 51.3 | 26.3 T-19305R 12 27.75 2364.22 71.76 1.4310 70.7 | 87.8 | 72.8 | 51.4 T-19301R 12 12.75 2364.22 28.25 1.4310 67.6 | 72.8 | 53.4 | 76.5 T-19325R 16 27.75 2459.2 94.43 1.4310 61.9 | 81.4 | 63.8 | 40.7 T-17009R 12.5 29.6 2709.97 66.35 1.4310 78.9 | 92.3 | 80.7 | 63.8 T-17005R 12.5 13.6 2709.97 26.14 1.4310 64.7 | 76.3 | 56.1 | 61.8 T-17001R 12.5 10.4 2709.97 18.1 1.4310 55.1 | 73.1 | 49.5 | 42.8 T-17019R 17 29.6 2827.78 89.08 1.4310 67.9 | 83.6 | 70.4 | 49.6 T-19405R 12.4 33.3 3909.65 61.05 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19425R 17.4 33.3 4113.81 84.22 1.4310 83.5 | 90.4 | 83.8 | 76.3 T-19445R 22.4 33.3 4240.2 107.39 1.4310 73.8 | 85.1 | 74.5 | 61.7 T-19505R 17.5 37 5491.74 75.51 1.4310 82.6 | 83.6 | 76.0 | 88.1 Number of similar metal springs: 17 Customs tariff number: 73202089; Torsion spring T-19405R Country of origin: DE, German; Torsion spring T-19405R Product image - Torsion springs T-19405R QR-Code: Torsion spring T-19405R
