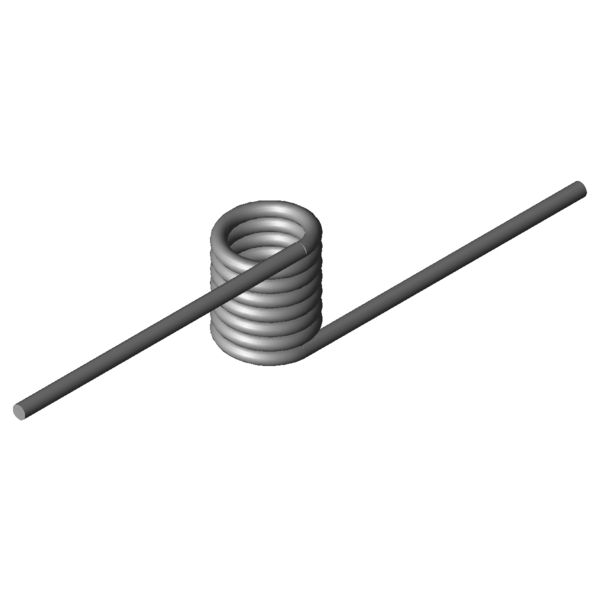

Home » Products » Torsion springs » t-19504l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19504L: Stainless steel Ø 4 x 17.5 x 90 mm / 0° Scaled prices - Torsion spring T-19504L Quantity Single price [EUR] 1 6.3100 EUR 2 4.4500 EUR 3 4.2400 EUR 7 3.4500 EUR 17 2.2200 EUR 37 1.7500 EUR 75 1.6000 EUR Torsion spring Buy Product image Torsion spring T-19504L Quantity: Add to shopping cart Technical Data - Torsion spring T-19504L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 4 mm Wire diameter Di 17.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 32 mm length of spring body Ls 90 mm leg length RH mm leverage Mntol 2024.66 Nmm (+/-) Tolerance maximum torque Mn 5491.74 Nmm maximum torque alphan 64.13 degree maximum rotational angle nt 7 pc. total number of coils Ddmax 15.7 mm maximum possible mandrel diameter Ddmin 14 mm Min. possible mandrel diameter Ditol 0.43 mm (+/-) tolerance of inner coil diameter Weight 64.6686 g weight of one spring Price group S - price group CAD drawing Torsion spring T-19504L Datasheet Torsion spring T-19504L: Stainless steel Ø 4 x 17.5 x 90 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19504L: Stainless steel Ø 4 x 17.5 x 90 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19504L: Stainless steel Ø 4 x 17.5 x 90 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19504L: Stainless steel Ø 4 x 17.5 x 90 mm / 0° force-path-calculation Torsion spring T-19504L Customs tariff number: 73202089; Torsion spring T-19504L Country of origin: DE, German; Torsion spring T-19504L Product image - Torsion springs T-19504L QR-Code: Torsion spring T-19504L
