Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

Scaled prices - Compression spring D-026R-14

Quantity	Single price [EUR]
1	4.6100 EUR
2	3.2500 EUR
3	3.1000 EUR
7	1.7300 EUR
17	0.6900 EUR
37	0.3600 EUR
75	0.1900 EUR
125	0.1503 EUR
175	0.1189 EUR
250	0.0939 EUR
350	0.0694 EUR
450	0.0630 EUR

Compression spring Buy

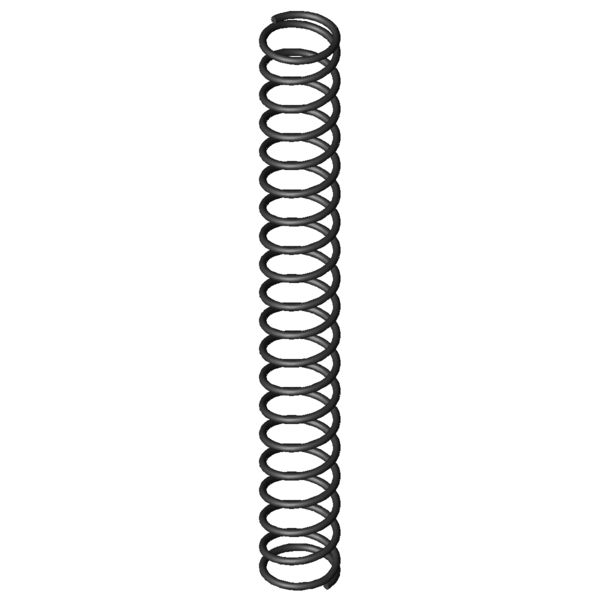

Product image Compression spring D-026R-14

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-026R-14

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.3	mm	Wire diameter
Di		mm	Inner coil diameter
D	2.9	mm	Mean coil diameter
De	3.2	mm	Outer coil diameter
Dd	2.1	mm	maximum diameter of mandrel
Dh	3.8	mm	minimum diameter of bush
L0	26	mm	unstressed spring length
Lk	22.08	mm	buckling length
Fn	3.304	N	maximum force in static use
Ln	7.93	mm	Minimum length in static use
sn	18.07	mm	Maximum spring deflection in static use
Fndyn	3.182	N	maximum force in dynamic use
Lndyn	8.6	mm	Minimum length in dynamic use
shdyn	5.54	mm	Maximum stroke in dynamic use
S	1.365	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.183	N/mm	Spring rate
Weight	0.1044	g	weight of one spring
Fntol	0.24	N	(+/-) tolerance of maximum force in static use
Fndtol	0.24	N	(+/-) tolerance of maximum dynamic force
Detol	0.2	mm	(+/-) tolerances of outer coil diameter
L0tol	1.04	mm	(+/-) tolerance of unstressed spring length
Price group	A	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

force-path-calculation Compression spring D-026R-14

Inquiry formular Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

Inquiry formular Compression spring D-026R-14

Similar compression springs to Compression spring D-026R-14 Spring steel Ø 0.3 x 2.9 x 26 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-026R-14	EN 10270-1	0.3	3.2	26	3.304	7.93	18.07	18.5	0.183	100.0 \| 100.0 \| 100.0 \| 100.0
VD-026R-14	1.4310	0.3	3.2	26	2.838	7.93	18.07	18.5	0.157	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-006	2.7	25.3	0.056	EN 10270-1	1.109	5.64	19.66	58.8 \| 82.8 \| 62.7 \| 30.9
D-016	3.45	32.4	0.066	EN 10270-1	1.661	7.1	25.3	60.7 \| 85.4 \| 60.8 \| 35.9
D-016A	3.45	34.1	0.066	EN 10270-1	1.772	7.1	27	60.1 \| 84.1 \| 60.3 \| 35.9
D-015A	3.45	23.3	0.097	EN 10270-1	1.77	5.08	18.22	72.7 \| 88.6 \| 76.4 \| 53.1
D-015	3.45	22.7	0.097	EN 10270-1	1.712	5.08	17.62	71.9 \| 87.8 \| 74.7 \| 53.1
D-016F	3.2	20	0.115	EN 10270-1	1.689	5.29	14.71	71.9 \| 86.8 \| 66.3 \| 62.8
D-016E	3.2	18	0.129	EN 10270-1	1.705	4.8	13.2	72.4 \| 84.2 \| 62.3 \| 70.6
D-026R-04	4	25	0.13	EN 10270-1	2.472	6.03	18.97	82.8 \| 92.1 \| 85.0 \| 71.3
D-021A	2.75	22.9	0.138	EN 10270-1	2.236	6.66	16.24	80.0 \| 85.8 \| 78.8 \| 75.3
D-021	2.75	22.8	0.138	EN 10270-1	2.222	6.66	16.14	79.7 \| 85.7 \| 78.3 \| 75.3
D-016D	3.2	15	0.155	EN 10270-1	1.682	4.15	10.85	73.5 \| 80.3 \| 55.5 \| 84.8
D-037	3.52	28.6	0.176	EN 10270-1	3.538	8.52	20.08	93.3 \| 91.9 \| 91.7 \| 96.4
D-037A	3.52	29.3	0.176	EN 10270-1	3.662	8.52	20.78	92.0 \| 91.1 \| 88.6 \| 96.4
D-026R-14	3.2	26	0.183	EN 10270-1	3.304	7.93	18.07	100.0 \| 100.0 \| 100.0 \| 100.0
D-036A	3.52	20.1	0.261	EN 10270-1	3.646	6.12	13.98	80.5 \| 87.3 \| 84.0 \| 70.1
D-036	3.52	19.5	0.261	EN 10270-1	3.49	6.12	13.38	80.3 \| 86.6 \| 84.4 \| 70.1
D-026R-13	3.2	17.5	0.271	EN 10270-1	3.194	5.7	11.8	79.2 \| 89.1 \| 81.0 \| 67.6
D-052G	4	30.4	0.302	EN 10270-1	6.031	10.44	19.96	71.1 \| 80.2 \| 72.7 \| 60.5
D-051B	4.4	25.1	0.326	EN 10270-1	5.689	7.65	17.45	71.6 \| 81.4 \| 77.3 \| 56.1
D-057A	3.6	25.2	0.354	EN 10270-1	4.611	12.16	13.04	70.2 \| 86.9 \| 71.9 \| 51.7
D-042A	2.82	20.6	0.37	EN 10270-1	4.592	8.17	12.43	69.0 \| 87.0 \| 70.4 \| 49.5
D-042	2.82	19.6	0.37	EN 10270-1	4.223	8.17	11.43	68.7 \| 85.8 \| 70.7 \| 49.5
D-057B	3.6	26.5	0.43	EN 10270-1	6.991	10.25	16.25	66.1 \| 87.3 \| 68.6 \| 42.5
D-057	3.6	25.2	0.43	EN 10270-1	6.432	10.25	14.95	65.5 \| 86.9 \| 67.1 \| 42.5
D-056B	3.6	18.3	0.637	EN 10270-1	6.953	7.38	10.92	53.6 \| 78.1 \| 54.0 \| 28.7
D-057E	3.2	21	0.642	EN 10270-1	7.01	10.08	10.92	55.8 \| 85.3 \| 53.8 \| 28.5
D-063A	2.9	18.5	0.742	EN 10270-1	4.95	11.83	6.67	51.8 \| 78.9 \| 51.8 \| 24.6
D-057D	3.2	18	0.766	EN 10270-1	7.147	8.68	9.32	51.4 \| 81.4 \| 48.9 \| 23.8
D-063B	2.9	19.5	0.902	EN 10270-1	8.595	9.97	9.53	48.7 \| 80.2 \| 45.6 \| 20.3

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-026R-14

Country of origin: DE, German; Compression spring D-026R-14

Product image - Compression springs D-026R-14

QR-Code: Compression spring D-026R-14

QR-Code - Compression springs - D-026R-14 | https://www.federnshop.com/en/products/compression_springs/d-026r-14.html
