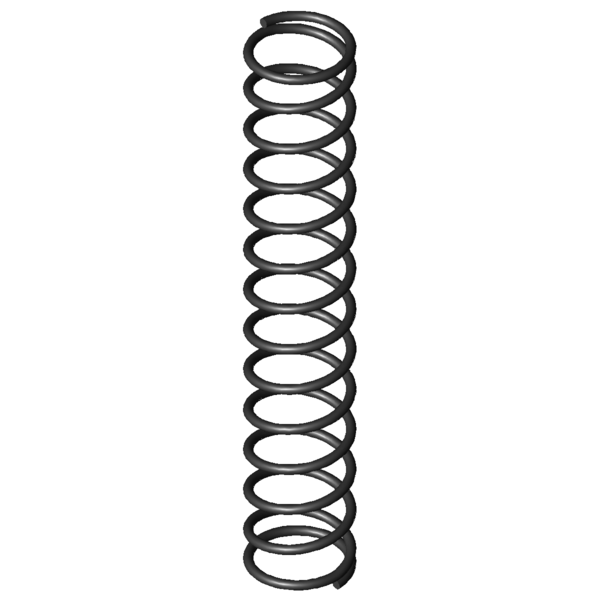

Home » Products » Compression springs » d-051b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm Scaled prices - Compression spring D-051B Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-051B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-051B Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.4 mm Wire diameter Di mm Inner coil diameter D 4 mm Mean coil diameter De 4.4 mm Outer coil diameter Dd 3.2 mm maximum diameter of mandrel Dh 4.9 mm minimum diameter of bush L0 25.1 mm unstressed spring length Lk 16.14 mm buckling length Fn 5.689 N maximum force in static use Ln 7.65 mm Minimum length in static use sn 17.45 mm Maximum spring deflection in static use Fndyn 5.483 N maximum force in dynamic use Lndyn 8.28 mm Minimum length in dynamic use shdyn 5.38 mm Maximum stroke in dynamic use S 1.928 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.326 N/mm Spring rate Weight 0.181 g weight of one spring Fntol 0.4 N (+/-) tolerance of maximum force in static use Fndtol 0.4 N (+/-) tolerance of maximum dynamic force Detol 0.2 mm (+/-) tolerances of outer coil diameter L0tol 0.96 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm Datasheet download pdf file Metal spring characteristic Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm Metal spring characteristic download pdf file CAD data Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm force-path-calculation Compression spring D-051B Inquiry formular Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm Inquiry formular Compression spring D-051B Similar compression springs to Compression spring D-051B Spring steel Ø 0.4 x 4 x 25.1 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-051B EN 10270-1 0.4 4.4 25.1 5.689 7.65 17.45 12.5 0.326 100.0 | 100.0 | 100.0 | 100.0 VD-051B 1.4310 0.4 4.4 25.1 4.886 7.65 17.45 12.5 0.28 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-037 3.52 28.6 0.176 EN 10270-1 3.538 8.52 20.08 70.4 | 82.6 | 74.5 | 54.0 D-037A 3.52 29.3 0.176 EN 10270-1 3.662 8.52 20.78 70.0 | 81.9 | 74.2 | 54.1 D-052A 4.4 35.5 0.181 EN 10270-1 4.138 12.65 22.85 73.4 | 90.2 | 74.6 | 55.5 D-026R-14 3.2 26 0.183 EN 10270-1 3.304 7.93 18.07 71.6 | 81.4 | 77.3 | 56.1 D-026R-03 4 17 0.192 EN 10270-1 2.408 4.44 12.56 64.6 | 77.9 | 57.2 | 58.8 D-030 4.32 19.2 0.196 EN 10270-1 2.838 4.75 14.45 70.5 | 84.9 | 66.3 | 60.2 D-047F 5 31.2 0.214 EN 10270-1 4.996 7.89 23.31 78.9 | 89.5 | 81.3 | 65.7 D-051A 4.4 24.1 0.22 EN 10270-1 2.963 10.65 13.45 76.9 | 98.7 | 64.6 | 67.6 D-052 4.4 35.5 0.22 EN 10270-1 5.474 10.65 24.85 80.3 | 90.2 | 83.2 | 67.6 D-045A 5.4 24.7 0.245 EN 10270-1 4.606 5.94 18.76 85.2 | 93.3 | 87.0 | 75.3 D-045 5.4 23.7 0.245 EN 10270-1 4.36 5.94 17.76 84.9 | 92.0 | 87.4 | 75.3 D-036A 3.52 20.1 0.261 EN 10270-1 3.646 6.12 13.98 77.4 | 80.0 | 72.1 | 80.0 D-052G 4 30.4 0.302 EN 10270-1 6.031 10.44 19.96 91.6 | 91.2 | 90.9 | 92.7 D-047E 5 21.2 0.315 EN 10270-1 4.85 5.81 15.39 91.4 | 90.8 | 86.7 | 96.7 D-051B 4.4 25.1 0.326 EN 10270-1 5.689 7.65 17.45 100.0 | 100.0 | 100.0 | 100.0 D-057A 3.6 25.2 0.354 EN 10270-1 4.611 12.16 13.04 60.0 | 76.6 | 64.4 | 38.9 D-057 3.6 25.2 0.43 EN 10270-1 6.432 10.25 14.95 57.3 | 76.6 | 63.4 | 32.0 D-057B 3.6 26.5 0.43 EN 10270-1 6.991 10.25 16.25 85.1 | 92.2 | 87.2 | 75.8 D-052F 4 20.8 0.447 EN 10270-1 5.944 7.51 13.29 71.6 | 83.8 | 77.0 | 54.0 D-050A 4.4 17.5 0.479 EN 10270-1 5.681 5.65 11.85 69.3 | 84.7 | 72.8 | 50.4 D-050 4.4 16.6 0.479 EN 10270-1 5.25 5.65 10.95 68.4 | 83.0 | 71.8 | 50.4 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-051B Country of origin: DE, German; Compression spring D-051B Product image - Compression springs D-051B QR-Code: Compression spring D-051B
