Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

Scaled prices - Compression spring D-051A

Quantity	Single price [EUR]
1	4.7200 EUR
2	3.3300 EUR
3	3.1700 EUR
7	1.7700 EUR
17	0.7400 EUR
37	0.4200 EUR
75	0.2000 EUR
125	0.1664 EUR
175	0.1253 EUR
250	0.1002 EUR
350	0.0758 EUR
450	0.0694 EUR

Compression spring Buy

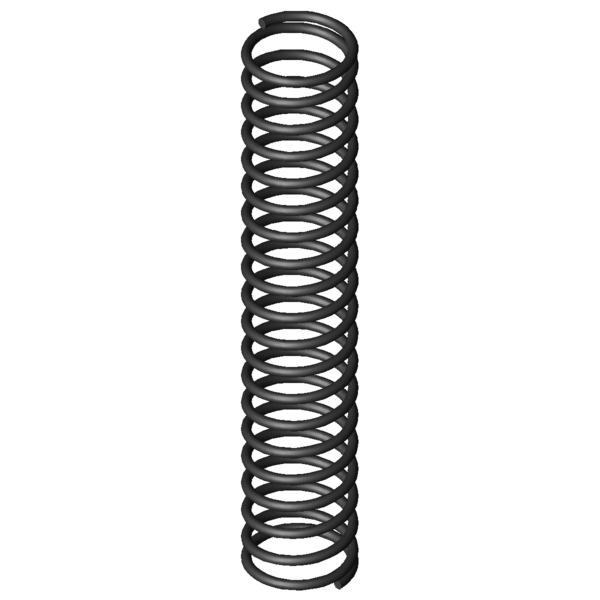

Product image Compression spring D-051A

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-051A

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.4	mm	Wire diameter
Di		mm	Inner coil diameter
D	4	mm	Mean coil diameter
De	4.4	mm	Outer coil diameter
Dd	3.2	mm	maximum diameter of mandrel
Dh	4.9	mm	minimum diameter of bush
L0	24.1	mm	unstressed spring length
Lk	14.45	mm	buckling length
Fn	2.963	N	maximum force in static use
Ln	10.65	mm	Minimum length in static use
sn	13.45	mm	Maximum spring deflection in static use
Fndyn	2.758	N	maximum force in dynamic use
Lndyn	11.58	mm	Minimum length in dynamic use
shdyn	12.23	mm	Maximum stroke in dynamic use
S	1.249	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.22	N/mm	Spring rate
Weight	0.2559	g	weight of one spring
Fntol	0.35	N	(+/-) tolerance of maximum force in static use
Fndtol	0.34	N	(+/-) tolerance of maximum dynamic force
Detol	0.2	mm	(+/-) tolerances of outer coil diameter
L0tol	1.37	mm	(+/-) tolerance of unstressed spring length
Price group	B	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

force-path-calculation Compression spring D-051A

Inquiry formular Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

Inquiry formular Compression spring D-051A

Similar compression springs to Compression spring D-051A Spring steel Ø 0.4 x 4 x 24.1 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-051A	EN 10270-1	0.4	4.4	24.1	2.963	10.65	13.45	18.5	0.22	76.9 \| 98.7 \| 64.6 \| 67.6
VD-051A	1.4310	0.4	4.4	24.1	2.545	10.65	13.45	18.5	0.189	92.9 \| 100.0 \| 92.9 \| 85.9
VD-051	1.4310	0.4	4.4	24.1	4.606	7.65	16.45	12.5	0.28	83.9 \| 100.0 \| 73.0 \| 78.7

Number of similar metal springs: 3

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-011Z-01	4.65	29.2	0.025	EN 10270-1	0.533	8.11	21.09	44.1 \| 79.9 \| 40.9 \| 11.5
D-011Z	4.65	22.1	0.037	EN 10270-1	0.611	5.76	16.34	50.5 \| 82.9 \| 51.5 \| 17.0
D-015A	3.45	23.3	0.097	EN 10270-1	1.77	5.08	18.22	63.4 \| 79.2 \| 66.8 \| 44.1
D-015	3.45	22.7	0.097	EN 10270-1	1.712	5.08	17.62	63.2 \| 78.4 \| 67.1 \| 44.1
D-026R-04	4	25	0.13	EN 10270-1	2.472	6.03	18.97	74.6 \| 87.4 \| 77.2 \| 59.2
D-030A	4.32	19.8	0.134	EN 10270-1	1.782	6.46	13.34	75.7 \| 86.8 \| 79.7 \| 60.6
D-030B	4.32	28.6	0.134	EN 10270-1	2.957	6.46	22.14	76.1 \| 87.5 \| 80.3 \| 60.6
D-031	4.32	28.9	0.134	EN 10270-1	2.997	6.46	22.44	75.7 \| 87.2 \| 79.4 \| 60.6
D-021A	2.75	22.9	0.138	EN 10270-1	2.236	6.66	16.24	71.7 \| 73.3 \| 79.1 \| 62.5
D-037	3.52	28.6	0.176	EN 10270-1	3.538	8.52	20.08	70.4 \| 82.6 \| 74.5 \| 54.0
D-037A	3.52	29.3	0.176	EN 10270-1	3.662	8.52	20.78	70.0 \| 81.9 \| 74.2 \| 54.1
D-026R-14	3.2	26	0.183	EN 10270-1	3.304	7.93	18.07	71.6 \| 81.4 \| 77.3 \| 56.1
D-026R-03	4	17	0.192	EN 10270-1	2.408	4.44	12.56	64.6 \| 77.9 \| 57.2 \| 58.8
D-030	4.32	19.2	0.196	EN 10270-1	2.838	4.75	14.45	70.5 \| 84.9 \| 66.3 \| 60.2
D-051A	4.4	24.1	0.22	EN 10270-1	2.963	10.65	13.45	76.9 \| 98.7 \| 64.6 \| 67.6
D-045	5.4	23.7	0.245	EN 10270-1	4.36	5.94	17.76	84.9 \| 92.0 \| 87.4 \| 75.3
D-045A	5.4	24.7	0.245	EN 10270-1	4.606	5.94	18.76	85.2 \| 93.3 \| 87.0 \| 75.3
D-036A	3.52	20.1	0.261	EN 10270-1	3.646	6.12	13.98	77.4 \| 80.0 \| 72.1 \| 80.0
D-036	3.52	19.5	0.261	EN 10270-1	3.49	6.12	13.38	85.7 \| 80.3 \| 92.2 \| 84.5
D-052G	4	30.4	0.302	EN 10270-1	6.031	10.44	19.96	91.6 \| 91.2 \| 90.9 \| 92.7
D-047E	5	21.2	0.315	EN 10270-1	4.85	5.81	15.39	91.4 \| 90.8 \| 86.7 \| 96.7
D-051	4.4	24.1	0.326	EN 10270-1	5.363	7.65	16.45	78.7 \| 100.0 \| 68.5 \| 67.6
D-051B	4.4	25.1	0.326	EN 10270-1	5.689	7.65	17.45	100.0 \| 100.0 \| 100.0 \| 100.0
D-057A	3.6	25.2	0.354	EN 10270-1	4.611	12.16	13.04	88.0 \| 93.8 \| 77.9 \| 92.2
D-057	3.6	25.2	0.43	EN 10270-1	6.432	10.25	14.95	85.5 \| 93.8 \| 87.1 \| 75.8
D-057B	3.6	26.5	0.43	EN 10270-1	6.991	10.25	16.25	85.1 \| 92.2 \| 87.2 \| 75.8
D-052F	4	20.8	0.447	EN 10270-1	5.944	7.51	13.29	83.4 \| 91.3 \| 85.9 \| 72.9
D-050A	4.4	17.5	0.479	EN 10270-1	5.681	5.65	11.85	80.6 \| 89.9 \| 83.9 \| 68.0
D-050	4.4	16.6	0.479	EN 10270-1	5.25	5.65	10.95	78.1 \| 88.7 \| 77.5 \| 68.0
D-056B	3.6	18.3	0.637	EN 10270-1	6.953	7.38	10.92	60.8 \| 85.9 \| 61.9 \| 34.6

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-051A
