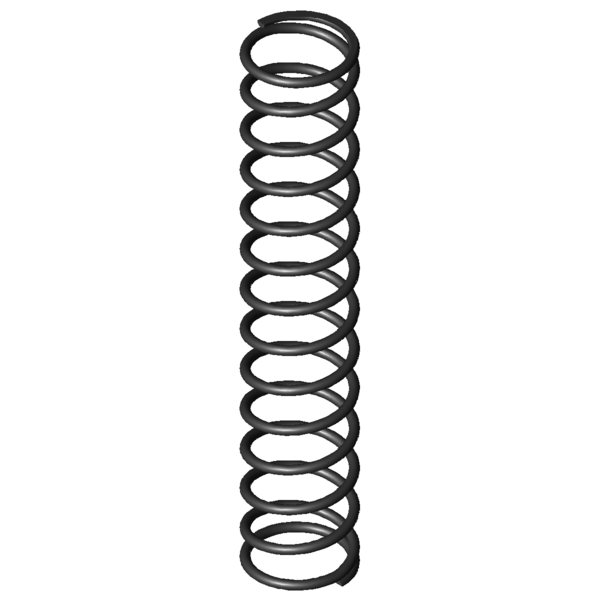

Home » Products » Compression springs » d-099 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm Scaled prices - Compression spring D-099 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-099 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-099 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.63 mm Wire diameter Di mm Inner coil diameter D 6.3 mm Mean coil diameter De 6.93 mm Outer coil diameter Dd 5.2 mm maximum diameter of mandrel Dh 7.5 mm minimum diameter of bush L0 36.5 mm unstressed spring length Lk 20.02 mm buckling length Fn 13.04 N maximum force in static use Ln 11.1 mm Minimum length in static use sn 25.4 mm Maximum spring deflection in static use Fndyn 12.528 N maximum force in dynamic use Lndyn 12.1 mm Minimum length in dynamic use shdyn 9.29 mm Maximum stroke in dynamic use S 2.87 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.513 N/mm Spring rate Weight 0.7071 g weight of one spring Fntol 0.88 N (+/-) tolerance of maximum force in static use Fndtol 0.87 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.33 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm force-path-calculation Compression spring D-099 Inquiry formular Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm Inquiry formular Compression spring D-099 Similar compression springs to Compression spring D-099 Spring steel Ø 0.63 x 6.3 x 36.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-099 EN 10270-1 0.63 6.93 36.5 13.04 11.1 25.4 12.5 0.513 73.5 | 88.9 | 74.6 | 56.9 VD-099 1.4310 0.63 6.93 36.5 11.2 11.1 25.4 12.5 0.441 92.9 | 100.0 | 92.9 | 85.9 VD-099A 1.4310 0.63 6.93 36.5 6.159 15.83 20.67 18.5 0.298 74.1 | 100.0 | 64.3 | 58.0 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063P 7.6 35 0.209 EN 10270-1 5.868 6.96 28.04 62.7 | 87.2 | 62.5 | 38.3 D-068A-04 6.5 35 0.236 EN 10270-1 6.078 9.23 25.78 53.4 | 82.8 | 51.2 | 26.1 D-090U-24 7 35.5 0.272 EN 10270-1 5.498 15.3 20.2 71.2 | 89.0 | 74.8 | 49.8 D-066 6.8 30 0.3 EN 10270-1 6.984 6.69 23.31 58.0 | 83.1 | 57.6 | 33.2 D-099A 6.93 36.5 0.347 EN 10270-1 7.171 15.83 20.67 63.2 | 88.9 | 62.2 | 38.5 D-099 6.93 36.5 0.513 EN 10270-1 13.04 11.1 25.4 73.5 | 88.9 | 74.6 | 56.9 D-100A-02 6.4 41 0.619 EN 10270-1 18.14 11.69 29.31 85.3 | 93.8 | 79.3 | 83.0 D-100A-01 6.4 33 0.796 EN 10270-1 18.802 9.37 23.63 76.9 | 90.2 | 71.8 | 68.7 D-115L 7.5 35.8 0.819 EN 10270-1 21.408 9.66 26.14 75.5 | 95.6 | 64.2 | 66.8 D-131A 7.1 33 0.902 EN 10270-1 12.397 19.26 13.74 77.2 | 92.3 | 78.5 | 60.6 D-116 6.7 35 0.944 EN 10270-1 22.114 11.57 23.43 81.7 | 92.1 | 57.4 | 95.6 D-131 7.1 33 1.335 EN 10270-1 25.993 13.53 19.47 67.6 | 92.3 | 69.6 | 41.0 D-137A 5.8 36 1.484 EN 10270-1 20.097 22.45 13.55 76.1 | 90.4 | 74.4 | 63.6 D-132C 6.4 36 1.533 EN 10270-1 30.427 16.15 19.85 69.3 | 93.9 | 55.0 | 58.9 D-117H-41 7 31 1.553 EN 10270-1 30.833 11.15 19.85 65.1 | 92.8 | 67.2 | 35.2 D-143K 8 36 1.624 EN 10270-1 35.481 14.15 21.85 61.2 | 88.5 | 61.5 | 33.7 D-137 5.8 36 1.804 EN 10270-1 31.132 18.75 17.25 71.7 | 90.4 | 72.3 | 52.3 D-143S 7.3 38.7 2.04 EN 10270-1 48.285 15.03 23.67 68.4 | 86.7 | 72.4 | 46.3 D-144D 6.3 35.1 2.739 EN 10270-1 47.108 17.9 17.2 58.9 | 90.5 | 53.1 | 32.9 D-173C 7 38.8 3.043 EN 10270-1 57.55 19.89 18.91 54.9 | 87.9 | 47.1 | 29.6 D-178A 6 34.5 3.622 EN 10270-1 25.016 27.59 6.91 57.0 | 86.0 | 58.9 | 26.1 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-099 Country of origin: DE, German; Compression spring D-099 Product image - Compression springs D-099 QR-Code: Compression spring D-099
