Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

Scaled prices - Compression spring D-143S

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

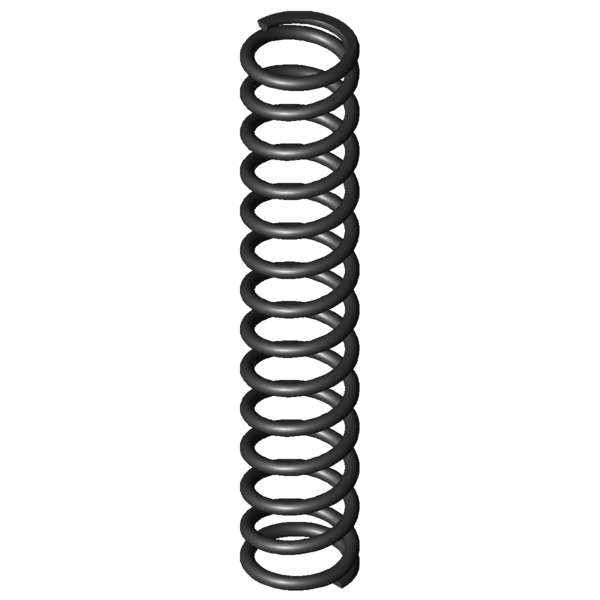

Product image Compression spring D-143S

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-143S

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.9	mm	Wire diameter
Di		mm	Inner coil diameter
D	6.4	mm	Mean coil diameter
De	7.3	mm	Outer coil diameter
Dd	4.9	mm	maximum diameter of mandrel
Dh	8	mm	minimum diameter of bush
L0	38.7	mm	unstressed spring length
Lk	23.36	mm	buckling length
Fn	48.285	N	maximum force in static use
Ln	15.03	mm	Minimum length in static use
sn	23.67	mm	Maximum spring deflection in static use
Fndyn	40.796	N	maximum force in dynamic use
Lndyn	18.7	mm	Minimum length in dynamic use
shdyn	7.38	mm	Maximum stroke in dynamic use
S	3.024	mm	pitch of spring
n	12.5	pc.	number of active coils
nt		pc.	total number of coils
R	2.04	N/mm	Spring rate
Weight	1.4661	g	weight of one spring
Fntol	2.65	N	(+/-) tolerance of maximum force in static use
Fndtol	2.62	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	0.94	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

force-path-calculation Compression spring D-143S

Inquiry formular Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

Inquiry formular Compression spring D-143S

Similar compression springs to Compression spring D-143S Spring steel Ø 0.9 x 6.4 x 38.7 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-143S	EN 10270-1	0.9	7.3	38.7	48.285	15.03	23.67	12.5	2.04	100.0 \| 100.0 \| 100.0 \| 100.0
VD-143S	1.4310	0.9	7.3	38.7	41.472	15.03	23.67	12.5	1.752	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-063P	7.6	35	0.209	EN 10270-1	5.868	6.96	28.04	46.4 \| 80.7 \| 48.3 \| 10.3
D-090U-24	7	35.5	0.272	EN 10270-1	5.498	15.3	20.2	48.8 \| 84.8 \| 48.4 \| 13.3
D-099A	6.93	36.5	0.347	EN 10270-1	7.171	15.83	20.67	51.5 \| 86.4 \| 51.1 \| 17.0
D-099	6.93	36.5	0.513	EN 10270-1	13.04	11.1	25.4	57.2 \| 86.4 \| 60.1 \| 25.2
D-115H-02	8	41	0.547	EN 10270-1	16.092	11.57	29.43	57.2 \| 87.8 \| 56.9 \| 26.8
D-100A-02	6.4	41	0.619	EN 10270-1	18.14	11.69	29.31	57.8 \| 84.0 \| 59.2 \| 30.3
D-115L	7.5	35.8	0.819	EN 10270-1	21.408	9.66	26.14	65.6 \| 89.2 \| 67.4 \| 40.1
D-127E-05	8	41.6	0.894	EN 10270-1	24.85	13.82	27.79	67.7 \| 91.1 \| 68.3 \| 43.8
D-131A	7.1	33	0.902	EN 10270-1	12.397	19.26	13.74	58.9 \| 90.5 \| 41.9 \| 44.2
D-116	6.7	35	0.944	EN 10270-1	22.114	11.57	23.43	68.4 \| 86.7 \| 72.4 \| 46.3
D-131	7.1	33	1.335	EN 10270-1	25.993	13.53	19.47	74.7 \| 90.5 \| 68.0 \| 65.4
D-132C	6.4	36	1.533	EN 10270-1	30.427	16.15	19.85	79.5 \| 89.9 \| 73.4 \| 75.1
D-143K	8	36	1.624	EN 10270-1	35.481	14.15	21.85	85.8 \| 94.8 \| 82.9 \| 79.6
D-171A	7.3	43.5	1.811	EN 10270-1	27.905	28.09	15.41	81.1 \| 93.0 \| 61.4 \| 88.8
D-143S	7.3	38.7	2.04	EN 10270-1	48.285	15.03	23.67	100.0 \| 100.0 \| 100.0 \| 100.0
D-171	7.3	43.5	2.202	EN 10270-1	44.153	23.45	20.05	91.2 \| 93.0 \| 88.1 \| 92.6
D-166L	8	34.5	2.475	EN 10270-1	45.586	16.08	18.42	86.2 \| 90.1 \| 86.1 \| 82.4
D-180-03	8.3	38	2.756	EN 10270-1	47.485	20.77	17.23	83.0 \| 89.3 \| 85.6 \| 74.0
D-173C	7	38.8	3.043	EN 10270-1	57.55	19.89	18.91	81.4 \| 95.2 \| 81.9 \| 67.0
D-173J	6.3	41	3.338	EN 10270-1	52.027	25.41	15.59	76.9 \| 90.2 \| 79.3 \| 61.1
D-180D	7.5	41	3.671	EN 10270-1	70.404	21.82	19.18	73.9 \| 91.2 \| 74.8 \| 55.6
D-173H	6.3	37	3.91	EN 10270-1	58.703	21.99	15.01	71.9 \| 90.6 \| 72.8 \| 52.2
D-173CH	6.7	34.2	4.401	EN 10270-1	76.794	16.75	17.45	68.2 \| 90.1 \| 68.3 \| 46.4
D-200D	8.05	42	4.794	EN 10270-1	76.21	26.1	15.9	64.3 \| 84.9 \| 65.3 \| 42.6
D-180D-05	6.5	40.9	5.12	EN 10270-1	79.769	25.32	15.58	63.8 \| 88.5 \| 63.2 \| 39.8
D-204A	7.55	35.5	5.377	EN 10270-1	35.924	28.82	6.68	58.7 \| 86.8 \| 51.3 \| 37.9
D-200C	8.05	36	5.859	EN 10270-1	83.134	21.81	14.19	59.7 \| 85.2 \| 59.0 \| 34.8
D-204	7.55	35.5	7.957	EN 10270-1	121.09	20.28	15.22	54.8 \| 86.8 \| 52.1 \| 25.6
D-207D-04	8.6	38	8.066	EN 10270-1	116.613	23.54	14.46	53.0 \| 82.5 \| 51.2 \| 25.3
D-207J	7	37.1	14.378	EN 10270-1	142.47	27.19	9.91	45.8 \| 85.3 \| 37.9 \| 14.2

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-143S

Country of origin: DE, German; Compression spring D-143S

Product image - Compression springs D-143S

QR-Code: Compression spring D-143S

QR-Code - Compression springs - D-143S | https://www.federnshop.com/en/products/compression_springs/d-143s.html
