Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

Scaled prices - Compression spring D-117H-40

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

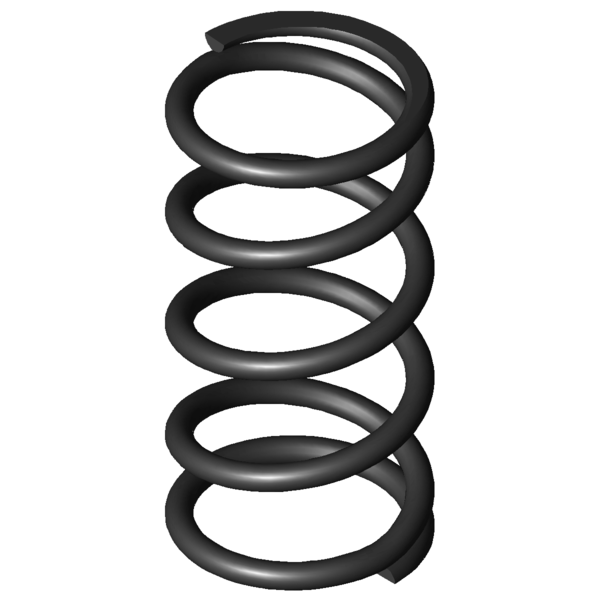

Product image Compression spring D-117H-40

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-117H-40

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1	-	N	prestressed spring force
L1	-	mm	Prestressed spring length
s1	-	mm	Prestressed spring deflection
F2	-	N	Loaded spring force
L2	-	mm	Loaded spring length
s2	-	mm	Loaded spring deflection
d	0.75	mm	Wire diameter
Di	-	mm	Inner coil diameter
D	6.25	mm	Mean coil diameter
De	7	mm	Outer coil diameter
Dd	4.9	mm	maximum diameter of mandrel
Dh	7.8	mm	minimum diameter of bush
L0	14	mm	unstressed spring length
Lk		mm	buckling length
Fn	30.744	N	maximum force in static use
Ln	5.85	mm	Minimum length in static use
sn	8.15	mm	Maximum spring deflection in static use
Fndyn	24.52	N	maximum force in dynamic use
Lndyn	7.5	mm	Minimum length in dynamic use
shdyn	1.75	mm	Maximum stroke in dynamic use
S	3.786	mm	pitch of spring
n	3.5	pc.	number of active coils
nt	-	pc.	total number of coils
R	3.772	N/mm	Spring rate
Weight	0.3771	g	weight of one spring
Fntol	2.08	N	(+/-) tolerance of maximum force in static use
Fndtol	1.76	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	0.39	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol	-	N	(+/-) tolerance of prestressed spring force
F2tol	-	N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

force-path-calculation Compression spring D-117H-40

Inquiry formular Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

Inquiry formular Compression spring D-117H-40

Similar compression springs to Compression spring D-117H-40 Spring steel Ø 0.75 x 6.25 x 14 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-117H-40	EN 10270-1	0.75	7	14	30.744	5.85	8.15	3.5	3.772	100.0 \| 100.0 \| 100.0 \| 100.0
VD-117H-40	1.4310	0.75	7	14	26.082	5.95	8.05	3.5	3.24	92.6 \| 100.0 \| 91.8 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-090U-22	7	16.2	0.593	EN 10270-1	5.048	7.68	8.52	53.5 \| 88.8 \| 56.0 \| 15.7
D-063Q-04	7.5	12	0.675	EN 10270-1	6.129	2.92	9.08	51.5 \| 81.9 \| 54.8 \| 17.9
D-064	6.8	13.5	0.728	EN 10270-1	7.391	3.34	10.16	52.7 \| 86.7 \| 52.1 \| 19.3
D-068A-12	6	15	0.85	EN 10270-1	9.454	3.88	11.12	52.2 \| 81.9 \| 52.0 \| 22.5
D-090U-21	7	10.5	0.916	EN 10270-1	4.676	5.39	5.11	49.4 \| 85.0 \| 39.0 \| 24.3
D-071	5.5	14	0.926	EN 10270-1	8.856	4.44	9.56	54.4 \| 81.7 \| 57.0 \| 24.6
D-063S	6.8	11	0.926	EN 10270-1	7.556	2.84	8.16	55.9 \| 80.8 \| 62.2 \| 24.5
D-097	6.93	17	1.167	EN 10270-1	13.313	5.59	11.41	58.9 \| 88.5 \| 57.4 \| 30.9
D-095B	7.9	13	1.193	EN 10270-1	10.59	4.13	8.87	61.1 \| 88.5 \| 63.2 \| 31.6
D-096	6.93	11.5	1.834	EN 10270-1	13.723	4.02	7.48	68.4 \| 88.4 \| 68.2 \| 48.6
D-100A-06	6.4	12	1.856	EN 10270-1	13.478	4.74	7.26	67.6 \| 87.0 \| 66.5 \| 49.2
D-115J	7.5	14.7	2.223	EN 10270-1	22.8	4.44	10.26	76.6 \| 94.0 \| 76.8 \| 58.9
D-129	7.1	15.5	3.034	EN 10270-1	26.248	6.85	8.65	88.2 \| 94.2 \| 89.8 \| 80.4
D-127E-01	8	12.8	3.194	EN 10270-1	24.85	5.02	7.78	87.9 \| 90.9 \| 88.1 \| 84.7
D-117H-40	7	14	3.772	EN 10270-1	30.744	5.85	8.15	100.0 \| 100.0 \| 100.0 \| 100.0
D-117H-50	6	15	4.05	EN 10270-1	35.072	6.34	8.66	92.3 \| 93.0 \| 90.9 \| 93.1
D-173	7	14	6.738	EN 10270-1	26.426	10.08	3.92	71.6 \| 91.7 \| 67.0 \| 56.0
D-168	7.3	14.5	7.408	EN 10270-1	45.354	8.38	6.12	70.5 \| 89.1 \| 71.4 \| 50.9
D-144B	6.3	13.6	7.718	EN 10270-1	46.984	7.51	6.09	69.7 \| 90.2 \| 70.1 \| 48.9
D-172	7	14	7.861	EN 10270-1	39.901	8.92	5.08	69.8 \| 91.7 \| 69.7 \| 48.0
D-173A	7	15.1	8.575	EN 10270-1	57.909	8.35	6.75	67.1 \| 89.2 \| 68.0 \| 44.0
D-180B	7.5	16	10.345	EN 10270-1	70.738	9.16	6.84	61.1 \| 83.0 \| 63.7 \| 36.5
D-173E	6.3	12	12.442	EN 10270-1	46.261	8.28	3.72	56.7 \| 83.6 \| 56.1 \| 30.3
D-180D-02	6.5	13.7	17.222	EN 10270-1	79.676	9.07	4.63	52.0 \| 86.3 \| 47.7 \| 21.9
D-205C	6.8	13	26.452	EN 10270-1	72.326	10.27	2.73	45.2 \| 83.3 \| 38.0 \| 14.2
D-201	7.55	12	28.42	EN 10270-1	128.479	7.48	4.52	44.1 \| 79.5 \| 39.7 \| 13.3
D-180W	6	12.9	34.73	EN 10270-1	107.024	9.82	3.08	41.4 \| 80.1 \| 33.3 \| 10.9
D-207G	7	15	40.518	EN 10270-1	143.646	11.45	3.55	41.4 \| 82.3 \| 32.5 \| 9.3
D-207F	7	10.6	63.672	EN 10270-1	145.961	8.31	2.29	35.6 \| 76.4 \| 24.6 \| 5.9

Number of similar metal springs: 28
