Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

Scaled prices - Compression spring D-165C

Quantity	Single price [EUR]
1	4.8100 EUR
2	3.3900 EUR
3	3.2300 EUR
7	1.8100 EUR
17	0.7800 EUR
37	0.4700 EUR
75	0.2700 EUR
125	0.2226 EUR
175	0.1689 EUR
250	0.1503 EUR
350	0.1199 EUR
450	0.1011 EUR

Compression spring Buy

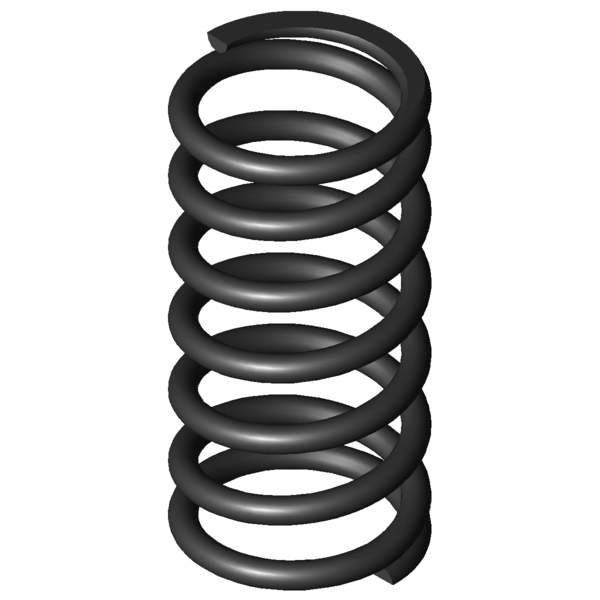

Product image Compression spring D-165C

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-165C

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.7	mm	Mean coil diameter
De	8.7	mm	Outer coil diameter
Dd	6.2	mm	maximum diameter of mandrel
Dh	9.2	mm	minimum diameter of bush
L0	18	mm	unstressed spring length
Lk		mm	buckling length
Fn	38.385	N	maximum force in static use
Ln	8.54	mm	Minimum length in static use
sn	9.46	mm	Maximum spring deflection in static use
Fndyn	36.272	N	maximum force in dynamic use
Lndyn	9.06	mm	Minimum length in dynamic use
shdyn	5.24	mm	Maximum stroke in dynamic use
S	3.091	mm	pitch of spring
n	5.5	pc.	number of active coils
nt		pc.	total number of coils
R	4.057	N/mm	Spring rate
Weight	1.1263	g	weight of one spring
Fntol	2.93	N	(+/-) tolerance of maximum force in static use
Fndtol	2.9	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	0.58	mm	(+/-) tolerance of unstressed spring length
Price group	C	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

force-path-calculation Compression spring D-165C

Inquiry formular Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

Inquiry formular Compression spring D-165C

Similar compression springs to Compression spring D-165C Spring steel Ø 1 x 7.7 x 18 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-165C	EN 10270-1	1	8.7	18	38.385	8.54	9.46	5.5	4.057	100.0 \| 100.0 \| 100.0 \| 100.0
VD-165C	1.4310	1	8.7	18	32.969	8.54	9.46	5.5	3.485	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-063Q-01	7.5	19	0.53	EN 10270-1	8.253	3.44	15.56	43.7 \| 77.0 \| 41.1 \| 13.1
D-090E-02	9	18.5	0.562	EN 10270-1	8.54	3.3	15.2	46.4 \| 83.0 \| 42.2 \| 13.8
D-095C	7.9	20	0.759	EN 10270-1	10.811	5.76	14.24	49.1 \| 81.3 \| 47.3 \| 18.7
D-091	8.63	16	0.896	EN 10270-1	10.551	4.22	11.78	53.2 \| 83.7 \| 53.9 \| 22.1
D-115H-10	7.8	17	1.051	EN 10270-1	10.401	7.11	9.89	57.3 \| 84.7 \| 61.4 \| 25.9
D-124	8.8	21.5	1.482	EN 10270-1	21.338	7.1	14.4	61.6 \| 87.5 \| 60.6 \| 36.5
D-122A-10	10	17.5	1.531	EN 10270-1	18.778	5.24	12.26	63.0 \| 88.1 \| 63.0 \| 37.7
D-122B	9.3	15.5	1.699	EN 10270-1	16.712	5.66	9.84	66.1 \| 86.6 \| 69.8 \| 41.9
D-127C	8.3	19	1.798	EN 10270-1	21.544	7.02	11.98	67.3 \| 90.0 \| 67.5 \| 44.3
D-127E-02	8	19.2	2.033	EN 10270-1	24.85	6.97	12.23	69.9 \| 88.6 \| 71.0 \| 50.1
D-123	8.8	14.5	2.329	EN 10270-1	21.889	5.1	9.4	74.0 \| 86.5 \| 78.2 \| 57.4
D-143A	10	19.7	2.534	EN 10270-1	35.357	5.75	13.95	77.3 \| 89.5 \| 80.0 \| 62.5
D-143H-10	8.4	22	2.881	EN 10270-1	41.019	7.76	14.24	80.2 \| 89.5 \| 80.0 \| 71.0
D-160	9	19	3.618	EN 10270-1	37.704	8.58	10.42	93.6 \| 97.1 \| 94.5 \| 89.2
D-165C	8.7	18	4.057	EN 10270-1	38.385	8.54	9.46	100.0 \| 100.0 \| 100.0 \| 100.0
D-143Q	7.3	17	4.636	EN 10270-1	43.483	7.62	9.38	90.2 \| 89.5 \| 93.7 \| 87.5
D-166J	8	16.5	5.4	EN 10270-1	43.449	8.45	8.05	85.5 \| 94.5 \| 86.7 \| 75.2
D-180-11	9	18.5	5.5	EN 10270-1	50.477	9.32	9.18	85.1 \| 95.0 \| 86.5 \| 73.8
D-173A-01	7	18	7.861	EN 10270-1	71.344	8.92	9.08	73.3 \| 93.5 \| 74.9 \| 51.6
D-196A	9.25	17	8.832	EN 10270-1	57.543	10.48	6.52	67.8 \| 89.5 \| 67.8 \| 46.0
D-195A-13	9.5	17.5	9.843	EN 10270-1	83.076	9.06	8.44	66.2 \| 89.6 \| 67.7 \| 41.2
D-180S	8.5	18.1	9.873	EN 10270-1	79.713	10.03	8.07	67.1 \| 93.5 \| 66.7 \| 41.1
D-200A-05	8.5	22	10.041	EN 10270-1	73.099	14.72	7.28	63.9 \| 86.5 \| 64.7 \| 40.4
D-180B	7.5	16	10.345	EN 10270-1	70.738	9.16	6.84	63.7 \| 88.7 \| 63.3 \| 39.2
D-196	9.25	15	13.879	EN 10270-1	102.967	7.58	7.42	57.6 \| 85.8 \| 57.9 \| 29.2
D-202	7.55	17	18.085	EN 10270-1	120.729	10.32	6.68	53.6 \| 87.1 \| 51.2 \| 22.5
D-228A	9.6	18	23.709	EN 10270-1	113.567	13.21	4.79	47.9 \| 84.4 \| 42.2 \| 17.1
D-207KS	8.5	17.7	27.339	EN 10270-1	146.412	12.34	5.36	48.0 \| 87.6 \| 41.4 \| 14.9
D-232C	8	17	46.307	EN 10270-1	181.004	13.09	3.91	41.0 \| 83.0 \| 31.3 \| 8.8
D-234D	9	19	52.095	EN 10270-1	222.571	14.73	4.27	40.4 \| 82.3 \| 31.2 \| 7.8

Number of similar metal springs: 29
