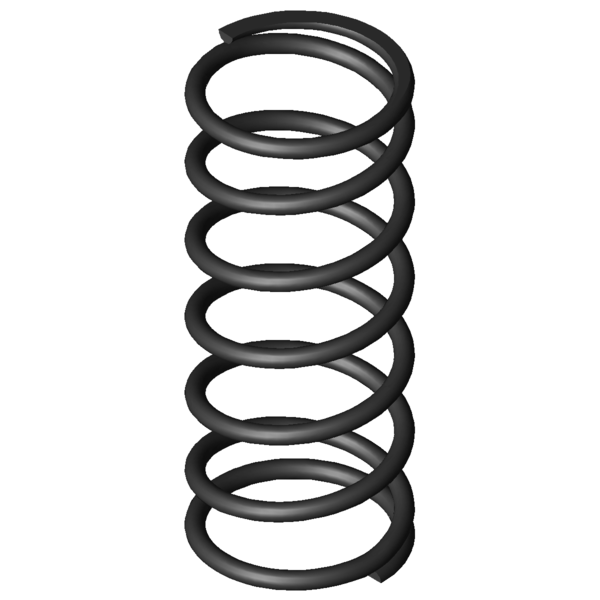

Home » Products » Compression springs » d-124 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm Scaled prices - Compression spring D-124 Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-124 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-124 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.8 mm Wire diameter Di mm Inner coil diameter D 8 mm Mean coil diameter De 8.8 mm Outer coil diameter Dd 6.7 mm maximum diameter of mandrel Dh 9.5 mm minimum diameter of bush L0 21.5 mm unstressed spring length Lk mm buckling length Fn 21.338 N maximum force in static use Ln 7.1 mm Minimum length in static use sn 14.4 mm Maximum spring deflection in static use Fndyn 20.523 N maximum force in dynamic use Lndyn 7.65 mm Minimum length in dynamic use shdyn 6.88 mm Maximum stroke in dynamic use S 3.764 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.482 N/mm Spring rate Weight 0.7489 g weight of one spring Fntol 1.51 N (+/-) tolerance of maximum force in static use Fndtol 1.5 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.8 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm force-path-calculation Compression spring D-124 Inquiry formular Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm Inquiry formular Compression spring D-124 Similar compression springs to Compression spring D-124 Spring steel Ø 0.8 x 8 x 21.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-124 EN 10270-1 0.8 8.8 21.5 21.338 7.1 14.4 5.5 1.482 100.0 | 100.0 | 100.0 | 100.0 VD-124 1.4310 0.8 8.8 21.5 18.327 7.1 14.4 5.5 1.273 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063J 8.5 23.4 0.355 EN 10270-1 7.036 3.6 19.8 53.5 | 83.7 | 52.9 | 24.0 D-063H-22 8.5 18 0.383 EN 10270-1 5.583 3.41 14.59 56.4 | 80.9 | 62.4 | 25.8 D-090E 9 23.9 0.441 EN 10270-1 8.829 3.9 20 57.3 | 85.5 | 56.7 | 29.8 D-090E-02 9 18.5 0.562 EN 10270-1 8.54 3.3 15.2 63.2 | 84.2 | 67.4 | 37.9 D-092 8.63 24.5 0.57 EN 10270-1 10.595 5.91 18.59 63.4 | 88.2 | 63.6 | 38.5 D-095C 7.9 20 0.759 EN 10270-1 10.811 5.76 14.24 71.1 | 87.2 | 74.8 | 51.2 D-143 10.3 22 0.894 EN 10270-1 8.91 12.04 9.96 68.8 | 90.7 | 55.5 | 60.4 D-115K 7.5 21.8 1.414 EN 10270-1 22.093 6.18 15.62 93.4 | 90.5 | 94.4 | 95.5 D-124 8.8 21.5 1.482 EN 10270-1 21.338 7.1 14.4 100.0 | 100.0 | 100.0 | 100.0 D-117H-30 8 22 1.538 EN 10270-1 23.66 6.62 15.38 94.1 | 94.1 | 91.9 | 96.3 D-127C 8.3 19 1.798 EN 10270-1 21.544 7.02 11.98 89.2 | 94.2 | 91.1 | 82.4 D-127E-03 8 22 1.863 EN 10270-1 27.086 7.46 14.54 88.2 | 96.2 | 88.9 | 79.5 D-127E-02 8 19.2 2.033 EN 10270-1 24.85 6.97 12.23 83.9 | 93.4 | 85.4 | 72.9 D-143H-10 8.4 22 2.881 EN 10270-1 41.019 7.76 14.24 46.9 | 81.6 | 42.9 | 16.3 D-180-12 9 22 3.559 EN 10270-1 31.29 13.21 8.79 65.2 | 89.4 | 64.6 | 41.6 D-160 9 19 3.618 EN 10270-1 37.704 8.58 10.42 64.7 | 88.7 | 64.5 | 41.0 D-155G 10.3 22 3.619 EN 10270-1 47.224 8.95 13.05 65.5 | 87.7 | 67.9 | 40.9 D-165C 8.7 18 4.057 EN 10270-1 38.385 8.54 9.46 61.6 | 87.5 | 60.6 | 36.5 D-169 7.3 21.5 4.793 EN 10270-1 46.226 11.86 9.64 58.4 | 87.7 | 56.6 | 30.9 D-180-11 9 18.5 5.5 EN 10270-1 50.477 9.32 9.18 55.2 | 85.5 | 53.0 | 26.9 D-207DA 9.5 24 8.182 EN 10270-1 54.882 17.29 6.71 66.2 | 92.2 | 60.1 | 46.2 D-197 9.25 22 8.832 EN 10270-1 101.705 10.48 11.52 51.0 | 85.6 | 50.5 | 16.8 D-180S 8.5 18.1 9.873 EN 10270-1 79.713 10.03 8.07 46.3 | 82.5 | 41.4 | 15.0 D-200A-05 8.5 22 10.041 EN 10270-1 73.099 14.72 7.28 72.2 | 89.8 | 69.9 | 56.8 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-124 Country of origin: DE, German; Compression spring D-124 Product image - Compression springs D-124 QR-Code: Compression spring D-124
