Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

Scaled prices - Compression spring D-180-12

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

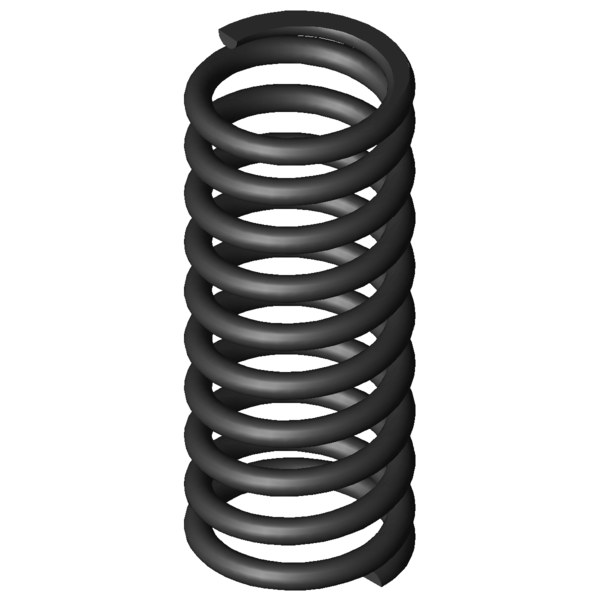

Product image Compression spring D-180-12

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-180-12

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.9	mm	Mean coil diameter
De	9	mm	Outer coil diameter
Dd	6.2	mm	maximum diameter of mandrel
Dh	9.7	mm	minimum diameter of bush
L0	22	mm	unstressed spring length
Lk		mm	buckling length
Fn	31.29	N	maximum force in static use
Ln	13.21	mm	Minimum length in static use
sn	8.79	mm	Maximum spring deflection in static use
Fndyn	28.33	N	maximum force in dynamic use
Lndyn	14.04	mm	Minimum length in dynamic use
shdyn	7.95	mm	Maximum stroke in dynamic use
S	2.459	mm	pitch of spring
n	8.5	pc.	number of active coils
nt		pc.	total number of coils
R	3.559	N/mm	Spring rate
Weight	1.9576	g	weight of one spring
Fntol	3.29	N	(+/-) tolerance of maximum force in static use
Fndtol	3.25	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	0.79	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

force-path-calculation Compression spring D-180-12

Inquiry formular Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

Inquiry formular Compression spring D-180-12

Similar compression springs to Compression spring D-180-12 Spring steel Ø 1.1 x 7.9 x 22 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-180-12	EN 10270-1	1.1	9	22	31.29	13.21	8.79	8.5	3.559	100.0 \| 100.0 \| 100.0 \| 100.0
VD-180-12	1.4310	1.1	9	22	26.875	13.21	8.79	8.5	3.057	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-063O	7.6	23	0.323	EN 10270-1	5.868	4.86	18.14	39.3 \| 75.2 \| 33.6 \| 9.1
D-063J	8.5	23.4	0.355	EN 10270-1	7.036	3.6	19.8	40.5 \| 78.0 \| 33.4 \| 10.0
D-090E	9	23.9	0.441	EN 10270-1	8.829	3.9	20	43.1 \| 80.7 \| 36.1 \| 12.4
D-090E-02	9	18.5	0.562	EN 10270-1	8.54	3.3	15.2	45.5 \| 78.0 \| 42.6 \| 15.8
D-092	8.63	24.5	0.57	EN 10270-1	10.595	5.91	18.59	45.9 \| 81.0 \| 40.6 \| 16.0
D-095C	7.9	20	0.759	EN 10270-1	10.811	5.76	14.24	49.4 \| 78.7 \| 48.1 \| 21.3
D-143	10.3	22	0.894	EN 10270-1	8.91	12.04	9.96	57.7 \| 89.7 \| 58.4 \| 25.1
D-115K	7.5	21.8	1.414	EN 10270-1	22.093	6.18	15.62	61.7 \| 82.0 \| 63.4 \| 39.7
D-124	8.8	21.5	1.482	EN 10270-1	21.338	7.1	14.4	65.2 \| 89.4 \| 64.6 \| 41.6
D-117H-30	8	22	1.538	EN 10270-1	23.66	6.62	15.38	65.1 \| 85.7 \| 66.4 \| 43.2
D-127E-03	8	22	1.863	EN 10270-1	27.086	7.46	14.54	71.0 \| 87.2 \| 73.5 \| 52.3
D-143H-10	8.4	22	2.881	EN 10270-1	41.019	7.76	14.24	80.5 \| 91.7 \| 69.0 \| 80.9
D-180-12	9	22	3.559	EN 10270-1	31.29	13.21	8.79	100.0 \| 100.0 \| 100.0 \| 100.0
D-160	9	19	3.618	EN 10270-1	37.704	8.58	10.42	91.5 \| 92.4 \| 83.7 \| 98.4
D-155G	10.3	22	3.619	EN 10270-1	47.224	8.95	13.05	86.0 \| 92.8 \| 66.8 \| 98.4
D-169	7.3	21.5	4.793	EN 10270-1	46.226	11.86	9.64	81.2 \| 89.9 \| 79.4 \| 74.2
D-180-11	9	18.5	5.5	EN 10270-1	50.477	9.32	9.18	79.4 \| 94.7 \| 78.9 \| 64.7
D-197A	9.25	25	5.715	EN 10270-1	58.063	14.84	10.16	74.5 \| 91.1 \| 70.2 \| 62.3
D-207DA	9.5	24	8.182	EN 10270-1	54.882	17.29	6.71	66.2 \| 88.3 \| 66.7 \| 43.5
D-197	9.25	22	8.832	EN 10270-1	101.705	10.48	11.52	63.0 \| 95.1 \| 53.5 \| 40.3
D-200A-05	8.5	22	10.041	EN 10270-1	73.099	14.72	7.28	64.1 \| 94.1 \| 62.8 \| 35.5
D-207B	10	21.1	11.187	EN 10270-1	105.094	11.71	9.39	60.6 \| 88.2 \| 61.7 \| 31.8
D-207D-02	8.6	25	11.65	EN 10270-1	91.34	17.16	7.84	59.9 \| 87.4 \| 61.7 \| 30.6
D-207KH	10	20.4	15.269	EN 10270-1	121.048	12.47	7.93	55.6 \| 85.4 \| 58.0 \| 23.3
D-232A-02	9	25	20.595	EN 10270-1	150.535	17.69	7.31	51.6 \| 85.6 \| 52.0 \| 17.3
D-229	9.6	21.5	23.709	EN 10270-1	196.548	13.21	8.29	52.3 \| 86.7 \| 55.1 \| 15.0
D-207E	7.1	22	24.862	EN 10270-1	144.55	16.19	5.81	48.0 \| 85.8 \| 43.9 \| 14.3
D-234B-02	9.2	25	35.189	EN 10270-1	218.442	18.79	6.21	45.0 \| 82.3 \| 42.5 \| 10.1

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-180-12

Country of origin: DE, German; Compression spring D-180-12

Product image - Compression springs D-180-12

QR-Code: Compression spring D-180-12

QR-Code - Compression springs - D-180-12 | https://www.federnshop.com/en/products/compression_springs/d-180-12.html
