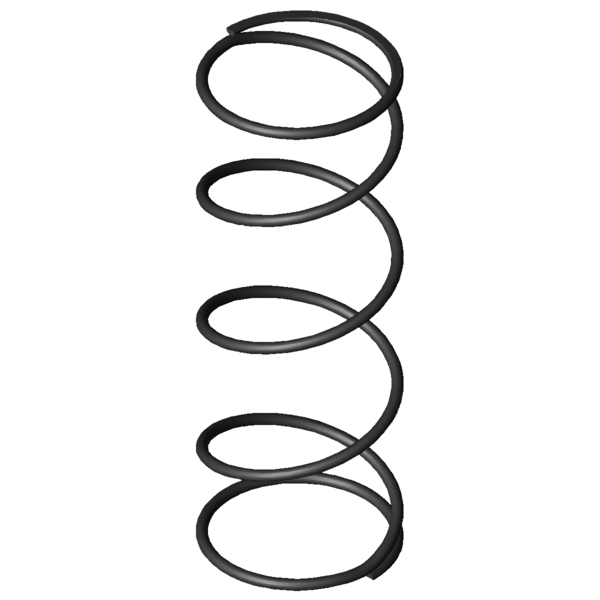

Home » Products » Compression springs » d-063j Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm Scaled prices - Compression spring D-063J Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-063J Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-063J Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 8 mm Mean coil diameter De 8.5 mm Outer coil diameter Dd 6.9 mm maximum diameter of mandrel Dh 9.6 mm minimum diameter of bush L0 23.4 mm unstressed spring length Lk mm buckling length Fn 7.036 N maximum force in static use Ln 3.6 mm Minimum length in static use sn 19.8 mm Maximum spring deflection in static use Fndyn 6.886 N maximum force in dynamic use Lndyn 4.02 mm Minimum length in dynamic use shdyn 3.9 mm Maximum stroke in dynamic use S 6.543 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 0.355 N/mm Spring rate Weight 0.2145 g weight of one spring Fntol 0.62 N (+/-) tolerance of maximum force in static use Fndtol 0.61 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.44 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm Datasheet download pdf file Metal spring characteristic Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm Metal spring characteristic download pdf file CAD data Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm force-path-calculation Compression spring D-063J Inquiry formular Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm Inquiry formular Compression spring D-063J Similar compression springs to Compression spring D-063J Spring steel Ø 0.5 x 8 x 23.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-063J EN 10270-1 0.5 8.5 23.4 7.036 3.6 19.8 3.5 0.355 100.0 | 100.0 | 100.0 | 100.0 VD-063J 1.4310 0.5 8.5 23.4 6.043 3.6 19.8 3.5 0.305 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063O 7.6 23 0.323 EN 10270-1 5.868 4.86 18.14 91.5 | 95.9 | 87.5 | 91.0 D-063J 8.5 23.4 0.355 EN 10270-1 7.036 3.6 19.8 100.0 | 100.0 | 100.0 | 100.0 D-090U-23 7 24 0.403 EN 10270-1 5.347 10.73 13.27 82.5 | 87.7 | 71.5 | 88.2 D-090E 9 23.9 0.441 EN 10270-1 8.829 3.9 20 88.1 | 94.4 | 89.3 | 80.5 D-092 8.63 24.5 0.57 EN 10270-1 10.595 5.91 18.59 77.9 | 91.1 | 80.1 | 62.4 D-115H-11 7.8 24.7 0.719 EN 10270-1 10.761 9.74 14.96 68.6 | 86.0 | 70.5 | 49.4 D-115K 7.5 21.8 1.414 EN 10270-1 22.093 6.18 15.62 54.9 | 84.3 | 55.4 | 25.1 D-124 8.8 21.5 1.482 EN 10270-1 21.338 7.1 14.4 53.5 | 83.7 | 52.9 | 24.0 D-117H-30 8 22 1.538 EN 10270-1 23.66 6.62 15.38 53.9 | 84.9 | 53.7 | 23.1 D-127E-03 8 22 1.863 EN 10270-1 27.086 7.46 14.54 50.8 | 83.5 | 49.7 | 19.1 D-130 7.1 23 1.963 EN 10270-1 26.087 9.71 13.29 48.9 | 81.4 | 47.0 | 18.1 D-165D 8.7 27 2.625 EN 10270-1 39.101 12.11 14.89 46.1 | 78.1 | 46.6 | 13.5 D-143H-10 8.4 22 2.881 EN 10270-1 41.019 7.76 14.24 46.6 | 82.8 | 44.5 | 12.3 D-166 8.3 25 3.273 EN 10270-1 44.39 11.44 13.56 44.5 | 80.4 | 42.2 | 10.9 D-166K 8 26.3 3.494 EN 10270-1 50.056 11.97 14.33 43.7 | 77.7 | 43.2 | 10.2 D-180-12 9 22 3.559 EN 10270-1 31.29 13.21 8.79 40.5 | 78.0 | 33.4 | 10.0 D-180-01 8.3 25 4.206 EN 10270-1 44.729 14.37 10.63 40.7 | 78.9 | 34.7 | 8.4 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-063J Country of origin: DE, German; Compression spring D-063J Product image - Compression springs D-063J QR-Code: Compression spring D-063J
