Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

Scaled prices - Compression spring D-180-01

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

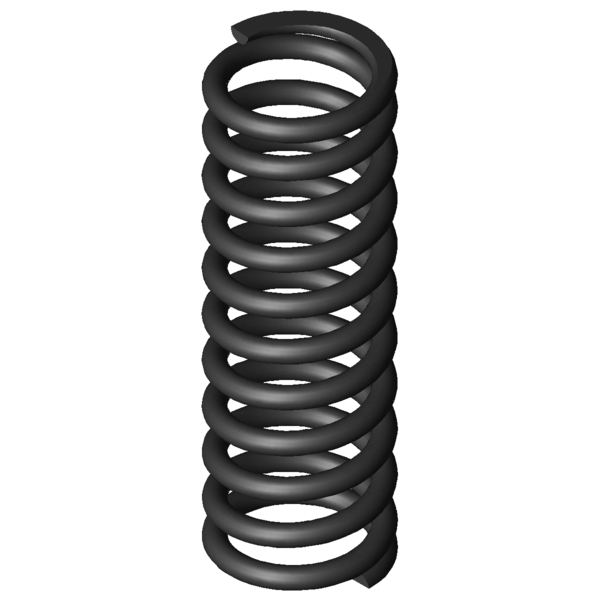

Product image Compression spring D-180-01

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-180-01

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.2	mm	Mean coil diameter
De	8.3	mm	Outer coil diameter
Dd	5.6	mm	maximum diameter of mandrel
Dh	8.8	mm	minimum diameter of bush
L0	25	mm	unstressed spring length
Lk		mm	buckling length
Fn	44.729	N	maximum force in static use
Ln	14.37	mm	Minimum length in static use
sn	10.63	mm	Maximum spring deflection in static use
Fndyn	41.097	N	maximum force in dynamic use
Lndyn	15.23	mm	Minimum length in dynamic use
shdyn	7.56	mm	Maximum stroke in dynamic use
S	2.516	mm	pitch of spring
n	9.5	pc.	number of active coils
nt		pc.	total number of coils
R	4.206	N/mm	Spring rate
Weight	1.9541	g	weight of one spring
Fntol	3.94	N	(+/-) tolerance of maximum force in static use
Fndtol	3.88	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	0.78	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

force-path-calculation Compression spring D-180-01

Inquiry formular Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

Inquiry formular Compression spring D-180-01

Similar compression springs to Compression spring D-180-01 Spring steel Ø 1.1 x 7.2 x 25 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-180-01	EN 10270-1	1.1	8.3	25	44.729	14.37	10.63	9.5	4.206	100.0 \| 100.0 \| 100.0 \| 100.0
VD-180-01	1.4310	1.1	8.3	25	38.418	14.37	10.63	9.5	3.613	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-090E	9	23.9	0.441	EN 10270-1	8.829	3.9	20	42.1 \| 79.3 \| 36.4 \| 10.5
D-092	8.63	24.5	0.57	EN 10270-1	10.595	5.91	18.59	45.9 \| 83.8 \| 40.4 \| 13.5
D-115H-11	7.8	24.7	0.719	EN 10270-1	10.761	9.74	14.96	50.0 \| 85.5 \| 47.6 \| 17.1
D-098	6.93	25.5	0.755	EN 10270-1	13.249	7.95	17.55	47.5 \| 79.6 \| 45.1 \| 17.9
D-127D	8.3	29	1.164	EN 10270-1	22.137	9.98	19.02	55.6 \| 86.3 \| 52.7 \| 27.7
D-127E-04	8	28.8	1.315	EN 10270-1	24.85	9.91	18.89	57.5 \| 85.3 \| 55.9 \| 31.3
D-117H-30	8	22	1.538	EN 10270-1	23.66	6.62	15.38	60.6 \| 84.2 \| 61.0 \| 36.6
D-127E-03	8	22	1.863	EN 10270-1	27.086	7.46	14.54	65.6 \| 85.7 \| 66.8 \| 44.3
D-143J	8	29	1.966	EN 10270-1	33.412	12	17	67.8 \| 88.1 \| 68.6 \| 46.7
D-165D	8.7	27	2.625	EN 10270-1	39.101	12.11	14.89	78.3 \| 93.0 \| 79.4 \| 62.4
D-143H-10	8.4	22	2.881	EN 10270-1	41.019	7.76	14.24	80.4 \| 89.5 \| 83.2 \| 68.5
D-143R	7.3	26.36	3	EN 10270-1	46.69	10.8	15.56	80.5 \| 88.2 \| 82.1 \| 71.3
D-166	8.3	25	3.273	EN 10270-1	44.39	11.44	13.56	87.9 \| 97.0 \| 88.8 \| 77.8
D-166K	8	26.3	3.494	EN 10270-1	50.056	11.97	14.33	86.3 \| 94.1 \| 81.8 \| 83.0
D-180-01	8.3	25	4.206	EN 10270-1	44.729	14.37	10.63	100.0 \| 100.0 \| 100.0 \| 100.0
D-173B	7	24.5	4.965	EN 10270-1	57.277	12.96	11.54	87.0 \| 91.1 \| 85.1 \| 84.8
D-197A	9.25	25	5.715	EN 10270-1	58.063	14.84	10.16	84.2 \| 92.6 \| 86.3 \| 73.6
D-180C	7.5	26	5.989	EN 10270-1	70.52	14.23	11.77	80.9 \| 95.5 \| 76.9 \| 70.2
D-207DA	9.5	24	8.182	EN 10270-1	54.882	17.29	6.71	70.4 \| 87.3 \| 72.3 \| 51.4
D-180U-10	8	25	8.398	EN 10270-1	97.229	13.42	11.58	71.7 \| 96.0 \| 68.9 \| 50.1
D-200A-05	8.5	22	10.041	EN 10270-1	73.099	14.72	7.28	66.0 \| 91.2 \| 64.8 \| 41.9
D-207D-02	8.6	25	11.65	EN 10270-1	91.34	17.16	7.84	63.1 \| 91.7 \| 61.4 \| 36.1
D-203	7.55	25	11.702	EN 10270-1	121.792	14.59	10.41	65.4 \| 93.0 \| 67.3 \| 36.0
D-205A-10	7	25	13.771	EN 10270-1	124.778	15.94	9.06	60.6 \| 90.8 \| 60.5 \| 30.6
D-207KT	8.5	25.6	17.69	EN 10270-1	144.321	17.44	8.16	55.7 \| 89.5 \| 53.9 \| 23.8
D-232A-02	9	25	20.595	EN 10270-1	150.535	17.69	7.31	52.2 \| 87.0 \| 49.2 \| 20.4
D-232D	8	27.1	26.809	EN 10270-1	182.71	20.28	6.82	48.6 \| 85.8 \| 44.3 \| 15.7
D-234B-02	9.2	25	35.189	EN 10270-1	218.442	18.79	6.21	45.1 \| 83.8 \| 39.4 \| 12.0
D-234D-10	9	26	38.203	EN 10270-1	276.056	18.77	7.23	45.4 \| 83.2 \| 42.1 \| 11.0

Number of similar metal springs: 28
