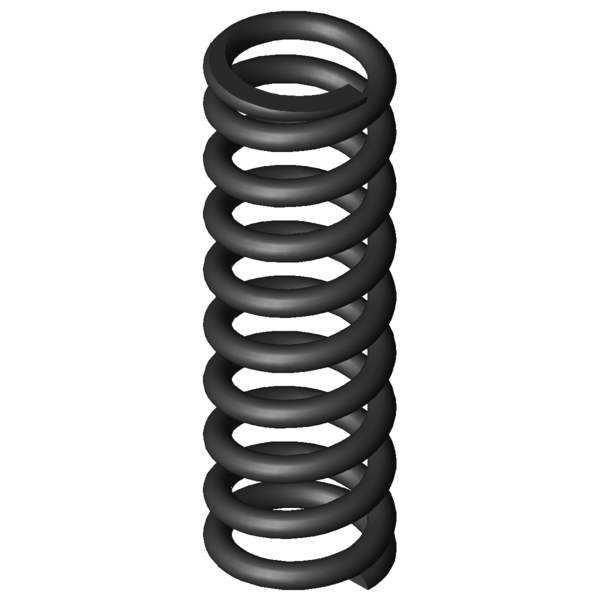

Home » Products » Compression springs » d-180u-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm Scaled prices - Compression spring D-180U-10 Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring D-180U-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180U-10 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.2 mm Wire diameter Di mm Inner coil diameter D 6.8 mm Mean coil diameter De 8 mm Outer coil diameter Dd 5.1 mm maximum diameter of mandrel Dh 8.7 mm minimum diameter of bush L0 25 mm unstressed spring length Lk mm buckling length Fn 97.229 N maximum force in static use Ln 13.42 mm Minimum length in static use sn 11.58 mm Maximum spring deflection in static use Fndyn 84.4 N maximum force in dynamic use Lndyn 14.95 mm Minimum length in dynamic use shdyn 3.7 mm Maximum stroke in dynamic use S 2.975 mm pitch of spring n 8 pc. number of active coils nt pc. total number of coils R 8.398 N/mm Spring rate Weight 1.9098 g weight of one spring Fntol 6.73 N (+/-) tolerance of maximum force in static use Fndtol 6.64 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.62 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm Metal spring characteristic download pdf file CAD data Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm force-path-calculation Compression spring D-180U-10 Inquiry formular Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm Inquiry formular Compression spring D-180U-10 Similar compression springs to Compression spring D-180U-10 Spring steel Ø 1.2 x 6.8 x 25 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180U-10 EN 10270-1 1.2 8 25 97.229 13.42 11.58 8 8.398 100.0 | 100.0 | 100.0 | 100.0 VD-180U-10 1.4310 1.2 8 25 83.509 13.42 11.58 8 7.213 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-098 6.93 25.5 0.755 EN 10270-1 13.249 7.95 17.55 42.6 | 79.1 | 39.8 | 9.0 D-127E-04 8 28.8 1.315 EN 10270-1 24.85 9.91 18.89 53.9 | 86.2 | 52.3 | 23.0 D-117H-30 8 22 1.538 EN 10270-1 23.66 6.62 15.38 50.5 | 83.5 | 49.8 | 18.3 D-127E-03 8 22 1.863 EN 10270-1 27.086 7.46 14.54 53.6 | 84.9 | 53.8 | 22.2 D-143J 8 29 1.966 EN 10270-1 33.412 12 17 61.8 | 89.3 | 61.8 | 34.4 D-165D 8.7 27 2.625 EN 10270-1 39.101 12.11 14.89 69.4 | 91.0 | 71.2 | 45.9 D-143H-10 8.4 22 2.881 EN 10270-1 41.019 7.76 14.24 60.7 | 86.1 | 61.8 | 34.3 D-143R 7.3 26.36 3 EN 10270-1 46.69 10.8 15.56 61.3 | 87.0 | 61.2 | 35.7 D-166 8.3 25 3.273 EN 10270-1 44.39 11.44 13.56 74.4 | 88.7 | 77.1 | 57.3 D-166K 8 26.3 3.494 EN 10270-1 50.056 11.97 14.33 76.7 | 89.0 | 79.9 | 61.1 D-180-01 8.3 25 4.206 EN 10270-1 44.729 14.37 10.63 77.3 | 91.4 | 66.7 | 73.6 D-173B 7 24.5 4.965 EN 10270-1 57.277 12.96 11.54 76.0 | 89.6 | 79.3 | 59.1 D-197A 9.25 25 5.715 EN 10270-1 58.063 14.84 10.16 78.7 | 94.2 | 73.7 | 68.1 D-180C 7.5 26 5.989 EN 10270-1 70.52 14.23 11.77 83.6 | 93.9 | 85.5 | 71.4 D-180U-10 8 25 8.398 EN 10270-1 97.229 13.42 11.58 100.0 | 100.0 | 100.0 | 100.0 D-207D-02 8.6 25 11.65 EN 10270-1 91.34 17.16 7.84 70.2 | 89.9 | 71.6 | 49.1 D-203 7.55 25 11.702 EN 10270-1 121.792 14.59 10.41 84.5 | 96.8 | 84.9 | 71.8 D-205A-10 7 25 13.771 EN 10270-1 124.778 15.94 9.06 77.8 | 94.5 | 78.1 | 61.0 D-206 7.3 23 14.967 EN 10270-1 107.109 15.84 7.16 74.8 | 91.9 | 76.3 | 56.1 D-207KT 8.5 25.6 17.69 EN 10270-1 144.321 17.44 8.16 59.4 | 89.0 | 56.9 | 32.3 D-232A-02 9 25 20.595 EN 10270-1 150.535 17.69 7.31 64.2 | 88.0 | 63.9 | 40.8 D-207H 7 23.8 23.458 EN 10270-1 141.94 17.75 6.05 61.9 | 89.5 | 60.4 | 35.8 D-232D 8 27.1 26.809 EN 10270-1 182.71 20.28 6.82 51.6 | 87.1 | 46.3 | 21.3 D-234B-02 9.2 25 35.189 EN 10270-1 218.442 18.79 6.21 52.5 | 84.5 | 49.1 | 23.9 D-234D-10 9 26 38.203 EN 10270-1 276.056 18.77 7.23 51.6 | 83.9 | 48.8 | 22.0 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-180U-10 Country of origin: DE, German; Compression spring D-180U-10 Product image - Compression springs D-180U-10 QR-Code: Compression spring D-180U-10
