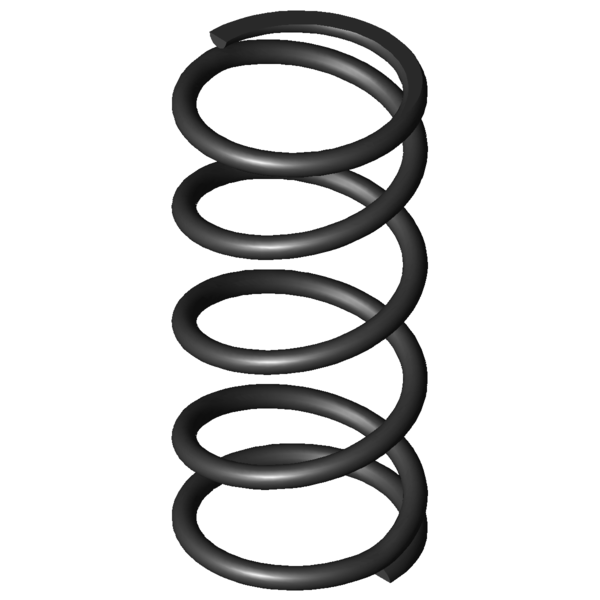

Home » Products » Compression springs » d-155g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm Scaled prices - Compression spring D-155G Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-155G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-155G Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1 mm Wire diameter Di mm Inner coil diameter D 9.3 mm Mean coil diameter De 10.3 mm Outer coil diameter Dd 7.8 mm maximum diameter of mandrel Dh 11 mm minimum diameter of bush L0 22 mm unstressed spring length Lk mm buckling length Fn 47.224 N maximum force in static use Ln 8.95 mm Minimum length in static use sn 13.05 mm Maximum spring deflection in static use Fndyn 38.901 N maximum force in dynamic use Lndyn 11.25 mm Minimum length in dynamic use shdyn 4.23 mm Maximum stroke in dynamic use S 6 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 3.619 N/mm Spring rate Weight 0.9976 g weight of one spring Fntol 2.97 N (+/-) tolerance of maximum force in static use Fndtol 2.94 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.58 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm Datasheet download pdf file Metal spring characteristic Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm Metal spring characteristic download pdf file CAD data Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm force-path-calculation Compression spring D-155G Inquiry formular Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm Inquiry formular Compression spring D-155G Similar compression springs to Compression spring D-155G Spring steel Ø 1 x 9.3 x 22 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-155G EN 10270-1 1 10.3 22 47.224 8.95 13.05 3.5 3.619 100.0 | 100.0 | 100.0 | 100.0 VD-155G 1.4310 1 10.3 22 40.405 9 13 3.5 3.108 92.8 | 100.0 | 92.6 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-090W-07 11.6 21 0.442 EN 10270-1 7.537 3.95 17.05 47.0 | 82.4 | 46.2 | 12.2 D-090W-11 10.5 20 0.607 EN 10270-1 9.832 3.8 16.2 50.5 | 84.0 | 50.7 | 16.8 D-117H-20 10 25 0.679 EN 10270-1 11.895 7.48 17.52 51.8 | 86.7 | 49.8 | 18.8 D-143 10.3 22 0.894 EN 10270-1 8.91 12.04 9.96 56.3 | 96.7 | 47.6 | 24.7 D-117H-10 12 22 0.906 EN 10270-1 16.123 4.2 17.8 55.2 | 86.9 | 53.7 | 25.0 D-118 10.8 20 1.192 EN 10270-1 17.483 5.34 14.66 61.6 | 88.8 | 63.0 | 33.0 D-124 8.8 21.5 1.482 EN 10270-1 21.338 7.1 14.4 65.5 | 87.7 | 67.9 | 40.9 D-151B 11 22 1.698 EN 10270-1 21.224 9.5 12.5 71.7 | 97.9 | 70.4 | 46.9 D-156 10.3 25 2.303 EN 10270-1 37.389 8.76 16.24 79.8 | 96.0 | 79.8 | 63.6 D-143A 10 19.7 2.534 EN 10270-1 35.357 5.75 13.95 82.2 | 92.2 | 84.2 | 70.0 D-180 10.3 26 2.554 EN 10270-1 35.396 12.14 13.86 82.3 | 91.8 | 84.6 | 70.6 D-143H-10 8.4 22 2.881 EN 10270-1 41.019 7.76 14.24 86.5 | 90.5 | 89.3 | 79.6 D-151A 11 21.4 2.911 EN 10270-1 43.733 6.38 15.03 89.0 | 97.0 | 89.7 | 80.4 D-180-12 9 22 3.559 EN 10270-1 31.29 13.21 8.79 86.0 | 92.8 | 66.8 | 98.4 D-155G 10.3 22 3.619 EN 10270-1 47.224 8.95 13.05 100.0 | 100.0 | 100.0 | 100.0 D-195A-15 11 20 5.963 EN 10270-1 64.403 9.2 10.8 75.6 | 88.2 | 78.0 | 60.7 D-191 11.25 20 7.106 EN 10270-1 82.788 8.35 11.65 70.5 | 87.5 | 73.2 | 50.9 D-207DA 9.5 24 8.182 EN 10270-1 54.882 17.29 6.71 66.0 | 85.1 | 68.7 | 44.2 D-197 9.25 22 8.832 EN 10270-1 101.705 10.48 11.52 66.1 | 89.9 | 67.4 | 41.0 D-200A-05 8.5 22 10.041 EN 10270-1 73.099 14.72 7.28 61.2 | 87.5 | 60.2 | 36.0 D-207B 10 21.1 11.187 EN 10270-1 105.094 11.71 9.39 59.6 | 88.1 | 58.4 | 32.3 D-207KJ 10 24.5 11.997 EN 10270-1 113.304 15.06 9.44 57.2 | 84.5 | 57.0 | 30.1 D-227D 11 22.8 14.615 EN 10270-1 138.323 13.34 9.46 54.1 | 84.2 | 53.3 | 24.7 D-207KH 10 20.4 15.269 EN 10270-1 121.048 12.47 7.93 53.0 | 85.5 | 49.9 | 23.7 D-234BA 11 24 21.129 EN 10270-1 149.415 16.93 7.07 46.8 | 80.3 | 42.9 | 17.1 D-229 9.6 21.5 23.709 EN 10270-1 196.548 13.21 8.29 47.8 | 84.5 | 43.8 | 15.3 D-262A-10 11 20 44.719 EN 10270-1 210.011 15.3 4.7 38.5 | 78.2 | 29.3 | 8.1 D-262C 10.7 20 45.006 EN 10270-1 161.47 16.41 3.59 38.5 | 79.1 | 28.4 | 8.0 D-263B 10 21 57.884 EN 10270-1 268.348 16.36 4.64 37.9 | 80.8 | 26.6 | 6.3 D-263S 11 23 63.672 EN 10270-1 318.334 18 5 36.8 | 78.2 | 26.6 | 5.7 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring D-155G Country of origin: DE, German; Compression spring D-155G Product image - Compression springs D-155G QR-Code: Compression spring D-155G
