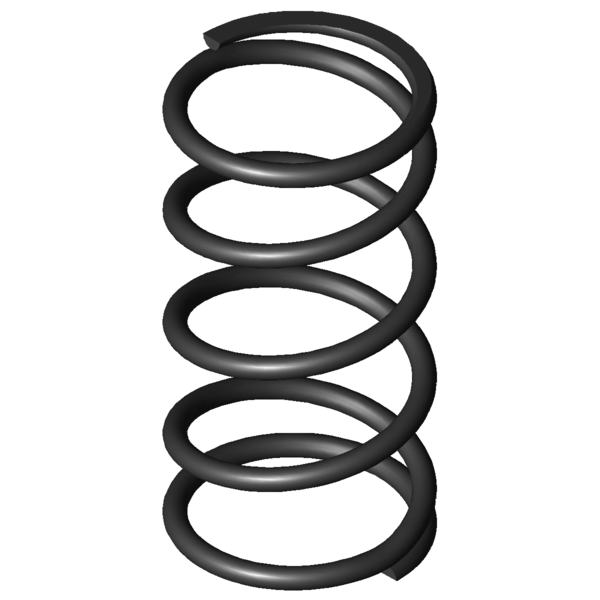

Home » Products » Compression springs » d-151a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm Scaled prices - Compression spring D-151A Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-151A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-151A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1 mm Wire diameter Di mm Inner coil diameter D 10 mm Mean coil diameter De 11 mm Outer coil diameter Dd 8.5 mm maximum diameter of mandrel Dh 11.7 mm minimum diameter of bush L0 21.4 mm unstressed spring length Lk mm buckling length Fn 43.733 N maximum force in static use Ln 6.38 mm Minimum length in static use sn 15.03 mm Maximum spring deflection in static use Fndyn 37.839 N maximum force in dynamic use Lndyn 8.4 mm Minimum length in dynamic use shdyn 4.78 mm Maximum stroke in dynamic use S 5.829 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 2.911 N/mm Spring rate Weight 1.0727 g weight of one spring Fntol 2.64 N (+/-) tolerance of maximum force in static use Fndtol 2.62 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.68 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm Datasheet download pdf file Metal spring characteristic Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm Metal spring characteristic download pdf file CAD data Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm force-path-calculation Compression spring D-151A Inquiry formular Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm Inquiry formular Compression spring D-151A Similar compression springs to Compression spring D-151A Spring steel Ø 1 x 10 x 21.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-151A EN 10270-1 1 11 21.4 43.733 6.38 15.03 3.5 2.911 100.0 | 100.0 | 100.0 | 100.0 VD-151A 1.4310 1 11 21.4 37.563 6.38 15.03 3.5 2.5 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063H-11 11.5 22.4 0.087 EN 10270-1 1.425 6.02 16.38 43.6 | 80.4 | 47.5 | 3.0 D-090W-07 11.6 21 0.442 EN 10270-1 7.537 3.95 17.05 51.1 | 85.3 | 52.7 | 15.2 D-090W-11 10.5 20 0.607 EN 10270-1 9.832 3.8 16.2 54.2 | 84.0 | 57.6 | 20.9 D-117N 12 23 0.849 EN 10270-1 14.848 5.5 17.5 59.1 | 88.2 | 59.9 | 29.2 D-143 10.3 22 0.894 EN 10270-1 8.91 12.04 9.96 55.9 | 93.6 | 43.3 | 30.7 D-117H-10 12 22 0.906 EN 10270-1 16.123 4.2 17.8 59.9 | 88.0 | 60.7 | 31.1 D-118 10.8 20 1.192 EN 10270-1 17.483 5.34 14.66 66.8 | 90.5 | 68.8 | 41.0 D-124 8.8 21.5 1.482 EN 10270-1 21.338 7.1 14.4 69.9 | 86.5 | 72.3 | 50.9 D-151B 11 22 1.698 EN 10270-1 21.224 9.5 12.5 74.4 | 99.1 | 65.8 | 58.4 D-150B 12.5 21 1.914 EN 10270-1 27.666 6.54 14.46 80.3 | 95.4 | 79.7 | 65.8 D-143A 10 19.7 2.534 EN 10270-1 35.357 5.75 13.95 88.3 | 91.0 | 86.8 | 87.1 D-151A 11 21.4 2.911 EN 10270-1 43.733 6.38 15.03 100.0 | 100.0 | 100.0 | 100.0 D-179K 12 23 3.291 EN 10270-1 52.645 7 16 89.6 | 91.9 | 88.5 | 88.4 D-155G 10.3 22 3.619 EN 10270-1 47.224 8.95 13.05 89.0 | 97.0 | 89.7 | 80.4 D-195A-15 11 20 5.963 EN 10270-1 64.403 9.2 10.8 69.9 | 91.2 | 69.9 | 48.8 D-180Q-01 11 19.2 6.413 EN 10270-1 75.413 7.44 11.76 68.2 | 91.0 | 68.1 | 45.4 D-191 11.25 20 7.106 EN 10270-1 82.788 8.35 11.65 65.5 | 90.4 | 65.2 | 40.9 D-197 9.25 22 8.832 EN 10270-1 101.705 10.48 11.52 60.0 | 87.1 | 59.8 | 33.0 D-207B 10 21.1 11.187 EN 10270-1 105.094 11.71 9.39 55.0 | 87.0 | 52.0 | 26.0 D-207K-12 11.5 19.5 11.461 EN 10270-1 98.793 10.88 8.62 53.6 | 84.5 | 50.8 | 25.4 D-227D 11 22.8 14.615 EN 10270-1 138.323 13.34 9.46 50.9 | 85.5 | 47.3 | 19.9 D-207KH 10 20.4 15.269 EN 10270-1 121.048 12.47 7.93 49.3 | 84.3 | 44.4 | 19.1 D-223 11.6 18.5 19.076 EN 10270-1 165.958 9.8 8.7 46.2 | 81.3 | 42.1 | 15.3 D-234BA 11 24 21.129 EN 10270-1 149.415 16.93 7.07 44.5 | 81.6 | 38.2 | 13.8 D-229 9.6 21.5 23.709 EN 10270-1 196.548 13.21 8.29 44.7 | 83.1 | 38.7 | 12.3 D-234BA-12 11 17.5 30.52 EN 10270-1 142.527 12.83 4.67 39.8 | 79.1 | 30.9 | 9.5 D-262A-10 11 20 44.719 EN 10270-1 210.011 15.3 4.7 37.9 | 81.2 | 26.0 | 6.5 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-151A Country of origin: DE, German; Compression spring D-151A Product image - Compression springs D-151A QR-Code: Compression spring D-151A
