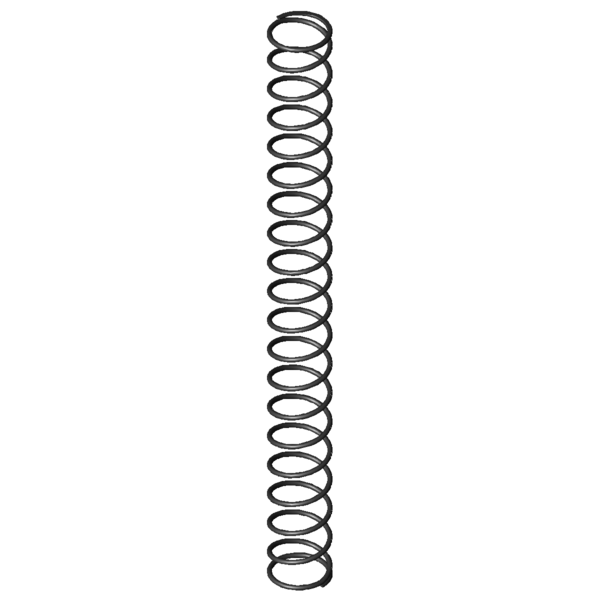

Home » Products » Compression springs » d-179j-05 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm Scaled prices - Compression spring D-179J-05 Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-179J-05 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-179J-05 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.1 mm Wire diameter Di mm Inner coil diameter D 12.9 mm Mean coil diameter De 14 mm Outer coil diameter Dd 11.1 mm maximum diameter of mandrel Dh 15 mm minimum diameter of bush L0 142 mm unstressed spring length Lk 128.29 mm buckling length Fn 42.522 N maximum force in static use Ln 28.78 mm Minimum length in static use sn 113.22 mm Maximum spring deflection in static use Fndyn 39.924 N maximum force in dynamic use Lndyn 35.7 mm Minimum length in dynamic use shdyn 38.1 mm Maximum stroke in dynamic use S 7.616 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.376 N/mm Spring rate Weight 6.2409 g weight of one spring Fntol 2.17 N (+/-) tolerance of maximum force in static use Fndtol 2.15 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 4.08 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm Datasheet download pdf file Metal spring characteristic Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm Metal spring characteristic download pdf file CAD data Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm force-path-calculation Compression spring D-179J-05 Inquiry formular Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm Inquiry formular Compression spring D-179J-05 Similar compression springs to Compression spring D-179J-05 Spring steel Ø 1.1 x 12.9 x 142 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-179J-05 EN 10270-1 1.1 14 142 42.522 28.78 113.22 18.5 0.376 100.0 | 100.0 | 100.0 | 100.0 VD-179J-05 1.4310 1.1 14 142 36.522 28.78 113.22 18.5 0.323 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-115H 12 136 0.109 EN 10270-1 12.952 17.58 118.42 58.0 | 81.7 | 63.0 | 29.1 D-117M 14 160.6 0.117 EN 10270-1 16.422 20.3 140.3 59.3 | 87.0 | 59.7 | 31.2 D-142D 15 163 0.154 EN 10270-1 21.647 22.28 140.72 64.7 | 87.4 | 65.7 | 41.0 D-117L 14 99.1 0.191 EN 10270-1 16.431 13.06 86.04 63.0 | 80.8 | 57.3 | 50.8 D-150A 13.5 115 0.232 EN 10270-1 19.236 32.02 82.98 70.1 | 89.4 | 59.3 | 61.7 D-150 13.5 115 0.282 EN 10270-1 24.9 26.69 88.31 77.6 | 89.4 | 68.3 | 75.1 D-184A 17.25 140 0.328 EN 10270-1 34.917 33.62 106.38 88.2 | 89.3 | 88.0 | 87.4 D-179J-14 15.9 125 0.368 EN 10270-1 38.258 21.06 103.94 93.6 | 92.0 | 90.9 | 98.0 D-179J-05 14 142 0.376 EN 10270-1 42.522 28.78 113.22 100.0 | 100.0 | 100.0 | 100.0 D-185J 15 125 0.467 EN 10270-1 41.817 35.4 89.6 86.3 | 89.8 | 88.7 | 80.5 D-184 17.25 140 0.486 EN 10270-1 51.881 33.2 106.8 84.9 | 89.3 | 88.1 | 77.3 D-185H 15 112 0.517 EN 10270-1 41.27 32.2 79.8 81.0 | 86.7 | 83.8 | 72.6 D-180M-25 15 115 0.519 EN 10270-1 45.869 26.55 88.45 82.2 | 88.7 | 85.4 | 72.4 D-179J-04 14 96.2 0.556 EN 10270-1 42.266 20.16 76.04 80.0 | 89.2 | 83.3 | 67.6 D-190A 13.75 130 0.566 EN 10270-1 52.264 37.66 92.34 80.1 | 92.6 | 81.5 | 66.4 D-190 13.75 130 0.688 EN 10270-1 66.425 33.5 96.5 73.9 | 92.6 | 74.6 | 54.6 D-206H 15 105 1.004 EN 10270-1 75.542 29.74 75.26 60.2 | 81.9 | 61.4 | 37.4 D-207J-11 14.5 97 1.423 EN 10270-1 91.035 33.01 63.99 52.5 | 79.4 | 51.6 | 26.4 D-207J-39 14 95.8 1.427 EN 10270-1 84.762 36.42 59.38 52.6 | 80.3 | 51.3 | 26.3 D-222A 14.1 115 1.519 EN 10270-1 104.684 46.1 68.9 52.8 | 83.0 | 50.7 | 24.7 D-233T-10 15 130 1.661 EN 10270-1 111.088 63.11 66.89 51.1 | 82.0 | 48.7 | 22.6 D-252A 18 145 1.769 EN 10270-1 154.192 57.82 87.18 50.1 | 76.9 | 52.3 | 21.2 D-222 14.1 115 1.848 EN 10270-1 133.408 42.8 72.2 50.4 | 83.0 | 47.8 | 20.3 D-252 18 145 2.151 EN 10270-1 195.21 54.25 90.75 48.4 | 76.9 | 51.0 | 17.5 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-179J-05 Country of origin: DE, German; Compression spring D-179J-05 Product image - Compression springs D-179J-05 QR-Code: Compression spring D-179J-05
