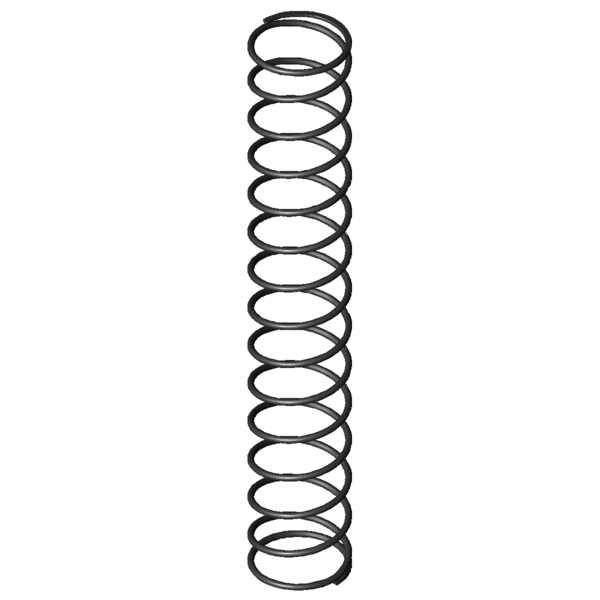

Home » Products » Compression springs » d-180y-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm Scaled prices - Compression spring D-180Y-04 Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring D-180Y-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180Y-04 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.25 mm Wire diameter Di mm Inner coil diameter D 17.75 mm Mean coil diameter De 19 mm Outer coil diameter Dd 15.8 mm maximum diameter of mandrel Dh 20.1 mm minimum diameter of bush L0 116 mm unstressed spring length Lk 78.9 mm buckling length Fn 29.595 N maximum force in static use Ln 26.17 mm Minimum length in static use sn 89.83 mm Maximum spring deflection in static use Fndyn 28.477 N maximum force in dynamic use Lndyn 29.56 mm Minimum length in dynamic use shdyn 60.34 mm Maximum stroke in dynamic use S 8.5 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 0.329 N/mm Spring rate Weight 8.3844 g weight of one spring Fntol 2.31 N (+/-) tolerance of maximum force in static use Fndtol 2.29 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 5.65 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm Metal spring characteristic download pdf file CAD data Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm force-path-calculation Compression spring D-180Y-04 Inquiry formular Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm Inquiry formular Compression spring D-180Y-04 Similar compression springs to Compression spring D-180Y-04 Spring steel Ø 1.25 x 17.75 x 116 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180Y-04 EN 10270-1 1.25 19 116 29.595 26.17 89.83 13.5 0.329 100.0 | 100.0 | 100.0 | 100.0 VD-180Y-04 1.4310 1.25 19 116 25.419 26.17 89.83 13.5 0.283 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-145D-03 18.5 100 0.224 EN 10270-1 18.952 15.25 84.75 78.3 | 87.9 | 79.2 | 67.9 D-145G 17 115 0.262 EN 10270-1 25.893 16.1 98.9 86.1 | 89.5 | 89.2 | 79.5 D-179H 19 129 0.274 EN 10270-1 30.429 17.85 111.15 88.3 | 92.6 | 89.0 | 83.1 D-180Y-04 19 116 0.329 EN 10270-1 29.595 26.17 89.83 100.0 | 100.0 | 100.0 | 100.0 D-180L 20 130 0.335 EN 10270-1 37.101 19.14 110.86 90.8 | 93.4 | 80.4 | 98.4 D-206D-18 20.4 125 0.456 EN 10270-1 44.788 26.88 98.12 80.9 | 91.7 | 78.8 | 72.2 D-207JZ 18.5 129 0.567 EN 10270-1 51.142 38.87 90.13 75.7 | 90.2 | 78.8 | 58.1 D-206D-04 17.4 122 0.764 EN 10270-1 71.47 28.5 93.5 90.8 | 87.4 | 94.9 | 90.1 D-207J-73 20 112 0.776 EN 10270-1 68.329 23.92 88.08 68.3 | 91.6 | 70.7 | 42.5 D-212E 19.8 104 0.82 EN 10270-1 59.761 31.15 72.85 64.5 | 87.9 | 65.3 | 40.2 D-216A 17.6 110 0.881 EN 10270-1 61.499 40.2 69.8 62.9 | 88.5 | 62.9 | 37.4 D-207J-90 18.5 104 1 EN 10270-1 80.621 23.36 80.64 62.1 | 90.1 | 63.2 | 33.0 D-217E 17 116 1.179 EN 10270-1 96.796 33.93 82.07 59.4 | 89.2 | 61.0 | 27.9 D-232M-02 20 118 1.223 EN 10270-1 99.938 36.31 81.69 58.3 | 87.6 | 60.3 | 26.9 D-216 17.6 110 1.304 EN 10270-1 104.19 30.1 79.9 57.5 | 88.5 | 58.7 | 25.3 D-247 21 115 1.76 EN 10270-1 136.68 37.36 77.64 52.3 | 84.0 | 54.0 | 18.7 D-263VE 20 127 2.779 EN 10270-1 199.574 55.18 71.82 46.5 | 80.2 | 47.4 | 11.9 D-263M-05 19 106 3.05 EN 10270-1 178.428 47.51 58.49 44.8 | 82.7 | 40.8 | 10.8 D-283A 18.5 130 4.318 EN 10270-1 257.652 70.33 59.67 41.8 | 78.9 | 39.0 | 7.6 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-180Y-04 Country of origin: DE, German; Compression spring D-180Y-04 Product image - Compression springs D-180Y-04 QR-Code: Compression spring D-180Y-04
