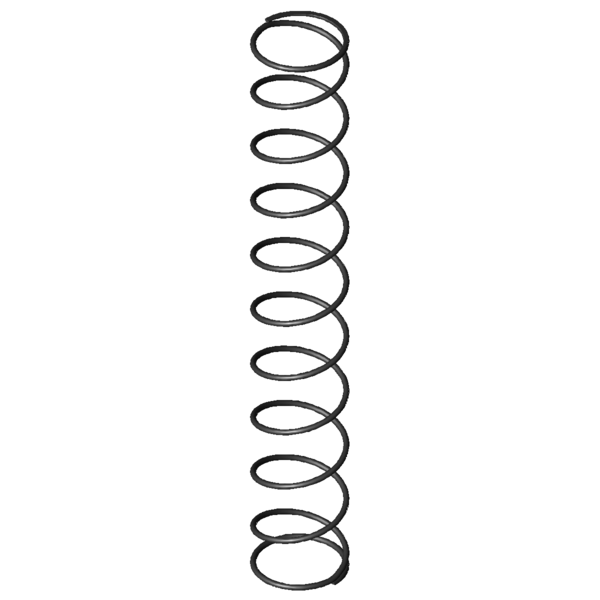

Home » Products » Compression springs » d-180l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm Scaled prices - Compression spring D-180L Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-180L Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180L Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.2 mm Wire diameter Di mm Inner coil diameter D 18.8 mm Mean coil diameter De 20 mm Outer coil diameter Dd 16.9 mm maximum diameter of mandrel Dh 22 mm minimum diameter of bush L0 130 mm unstressed spring length Lk 94.02 mm buckling length Fn 37.101 N maximum force in static use Ln 19.14 mm Minimum length in static use sn 110.86 mm Maximum spring deflection in static use Fndyn 35.858 N maximum force in dynamic use Lndyn 22.85 mm Minimum length in dynamic use shdyn 38.24 mm Maximum stroke in dynamic use S 13.558 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 0.335 N/mm Spring rate Weight 6.0721 g weight of one spring Fntol 2.34 N (+/-) tolerance of maximum force in static use Fndtol 2.33 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 5.33 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm Metal spring characteristic download pdf file CAD data Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm force-path-calculation Compression spring D-180L Inquiry formular Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm Inquiry formular Compression spring D-180L Similar compression springs to Compression spring D-180L Spring steel Ø 1.2 x 18.8 x 130 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180L EN 10270-1 1.2 20 130 37.101 19.14 110.86 9.5 0.335 100.0 | 100.0 | 100.0 | 100.0 VD-180L 1.4310 1.2 20 130 31.866 19.14 110.86 9.5 0.287 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-179H 19 129 0.274 EN 10270-1 30.429 17.85 111.15 89.3 | 95.3 | 90.9 | 81.8 D-180Y-04 19 116 0.329 EN 10270-1 29.595 26.17 89.83 90.8 | 93.4 | 80.4 | 98.4 D-180L 20 130 0.335 EN 10270-1 37.101 19.14 110.86 100.0 | 100.0 | 100.0 | 100.0 D-206D-18 20.4 125 0.456 EN 10270-1 44.788 26.88 98.12 84.1 | 93.3 | 85.7 | 73.3 D-207JZ 18.5 129 0.567 EN 10270-1 51.142 38.87 90.13 75.5 | 90.6 | 76.9 | 59.0 D-207J-80 20 152 0.603 EN 10270-1 73.674 29.9 122.1 78.4 | 83.2 | 77.3 | 74.8 D-206D-04 17.4 122 0.764 EN 10270-1 71.47 28.5 93.5 66.9 | 88.9 | 68.1 | 43.8 D-207J-73 20 112 0.776 EN 10270-1 68.329 23.92 88.08 66.2 | 88.7 | 66.9 | 43.1 D-243A 22 135 1.101 EN 10270-1 93.34 50.25 84.75 57.0 | 82.4 | 58.1 | 30.4 D-232N 20 139 1.144 EN 10270-1 114.943 38.57 100.43 59.1 | 86.7 | 61.4 | 29.2 D-232M-02 20 118 1.223 EN 10270-1 99.938 36.31 81.69 56.2 | 85.8 | 55.4 | 27.4 D-243 22 135 1.63 EN 10270-1 156.48 39 96 52.7 | 82.4 | 55.2 | 20.5 D-247 21 115 1.76 EN 10270-1 136.68 37.36 77.64 49.6 | 81.2 | 48.6 | 19.0 D-277A 22.5 120 2.689 EN 10270-1 160.484 60.32 59.69 42.4 | 76.4 | 38.5 | 12.4 D-263VE 20 127 2.779 EN 10270-1 199.574 55.18 71.82 45.7 | 83.3 | 41.7 | 12.0 D-277 22.5 120 3.979 EN 10270-1 293.289 46.3 73.7 41.5 | 76.4 | 39.6 | 8.4 D-283A 18.5 130 4.318 EN 10270-1 257.652 70.33 59.67 40.7 | 80.2 | 34.1 | 7.8 D-278D 19.5 125 4.378 EN 10270-1 288.607 59.08 65.92 41.5 | 80.6 | 36.2 | 7.6 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring D-180L Country of origin: DE, German; Compression spring D-180L Product image - Compression springs D-180L QR-Code: Compression spring D-180L
