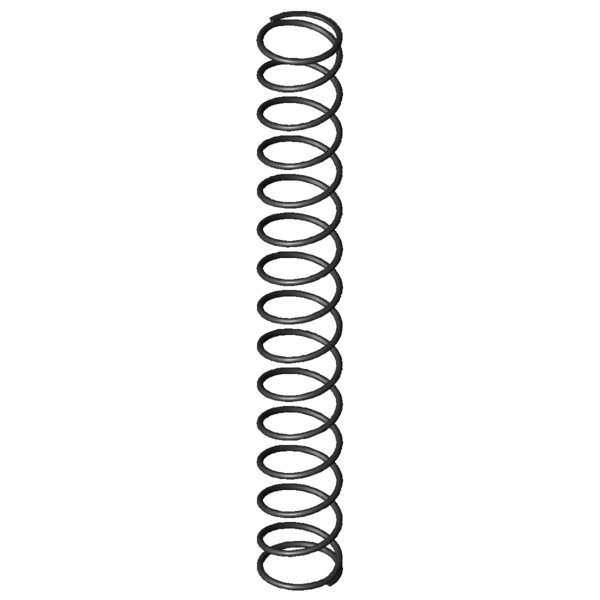

Home » Products » Compression springs » d-207j-80 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm Scaled prices - Compression spring D-207J-80 Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring D-207J-80 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-207J-80 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.5 mm Wire diameter Di mm Inner coil diameter D 18.5 mm Mean coil diameter De 20 mm Outer coil diameter Dd 16.2 mm maximum diameter of mandrel Dh 21.4 mm minimum diameter of bush L0 152 mm unstressed spring length Lk 124.09 mm buckling length Fn 73.674 N maximum force in static use Ln 29.9 mm Minimum length in static use sn 122.1 mm Maximum spring deflection in static use Fndyn 66.672 N maximum force in dynamic use Lndyn 41.5 mm Minimum length in dynamic use shdyn 38.98 mm Maximum stroke in dynamic use S 11.148 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 0.603 N/mm Spring rate Weight 12.5836 g weight of one spring Fntol 3.74 N (+/-) tolerance of maximum force in static use Fndtol 3.71 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 4.37 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm Datasheet download pdf file Metal spring characteristic Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm Metal spring characteristic download pdf file CAD data Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm force-path-calculation Compression spring D-207J-80 Inquiry formular Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm Inquiry formular Compression spring D-207J-80 Similar compression springs to Compression spring D-207J-80 Spring steel Ø 1.5 x 18.5 x 152 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-207J-80 EN 10270-1 1.5 20 152 73.674 29.9 122.1 13.5 0.603 100.0 | 100.0 | 100.0 | 100.0 VD-207J-80 1.4310 1.5 20 152 63.279 29.9 122.1 13.5 0.518 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-145DE 24 150 0.045 EN 10270-1 5.113 37.03 112.97 46.7 | 82.9 | 49.7 | 7.5 D-145D-04 18.5 157 0.141 EN 10270-1 18.861 23.05 133.95 55.7 | 85.3 | 58.4 | 23.3 D-179H 19 129 0.274 EN 10270-1 30.429 17.85 111.15 84.8 | 93.5 | 86.5 | 74.4 D-207JU 22 162 0.324 EN 10270-1 39.058 41.3 120.7 74.8 | 94.9 | 75.9 | 53.6 D-184A 17.25 140 0.328 EN 10270-1 34.917 33.62 106.38 91.2 | 89.8 | 94.5 | 89.2 D-180L 20 130 0.335 EN 10270-1 37.101 19.14 110.86 71.5 | 88.5 | 70.6 | 55.5 D-211A 21.6 165 0.451 EN 10270-1 55.172 42.7 122.3 85.0 | 92.8 | 87.4 | 74.8 D-206D-18 20.4 125 0.456 EN 10270-1 44.788 26.88 98.12 79.1 | 91.2 | 70.6 | 75.6 D-184 17.25 140 0.486 EN 10270-1 51.881 33.2 106.8 83.7 | 89.8 | 85.5 | 75.8 D-207J-80 20 152 0.603 EN 10270-1 73.674 29.9 122.1 100.0 | 100.0 | 100.0 | 100.0 D-211 21.6 165 0.668 EN 10270-1 83.122 40.5 124.5 92.2 | 92.8 | 93.4 | 90.4 D-217A 17.6 165 0.724 EN 10270-1 84.615 48.2 116.8 88.6 | 91.3 | 91.4 | 83.3 D-217 17.6 165 0.881 EN 10270-1 104.056 46.9 118.1 81.2 | 91.3 | 83.8 | 68.5 D-243A 22 135 1.101 EN 10270-1 93.34 50.25 84.75 71.3 | 84.9 | 74.2 | 54.8 D-232N 20 139 1.144 EN 10270-1 114.943 38.57 100.43 72.5 | 91.6 | 73.2 | 52.7 D-243B 22 149 1.315 EN 10270-1 139.667 42.75 106.25 67.9 | 88.0 | 69.9 | 45.9 D-252A-01 18 170 1.624 EN 10270-1 174.441 62.6 107.4 62.4 | 84.8 | 65.1 | 37.1 D-243 22 135 1.63 EN 10270-1 156.48 39 96 61.6 | 84.9 | 62.9 | 37.0 D-252A 18 145 1.769 EN 10270-1 154.192 57.82 87.18 60.2 | 86.8 | 59.6 | 34.1 D-252 18 145 2.151 EN 10270-1 195.21 54.25 90.75 57.0 | 86.8 | 56.0 | 28.1 D-263VE 20 127 2.779 EN 10270-1 199.574 55.18 71.82 50.8 | 82.9 | 47.9 | 21.7 D-278D 19.5 125 4.378 EN 10270-1 288.607 59.08 65.92 44.5 | 79.9 | 39.8 | 13.8 D-308A 23.2 155 5.935 EN 10270-1 386.828 89.82 65.18 41.1 | 77.0 | 36.2 | 10.2 D-288Z-57 20 150 6.718 EN 10270-1 388.911 92.11 57.89 41.7 | 82.9 | 33.2 | 9.0 D-308 23.2 155 7.218 EN 10270-1 577.506 74.99 80.01 41.5 | 77.0 | 39.1 | 8.4 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-207J-80 Country of origin: DE, German; Compression spring D-207J-80 Product image - Compression springs D-207J-80 QR-Code: Compression spring D-207J-80
