Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

Scaled prices - Compression spring D-277

Quantity	Single price [EUR]
1	5.1600 EUR
2	3.6400 EUR
3	3.4700 EUR
7	2.4200 EUR
17	1.1500 EUR
37	0.8500 EUR
75	0.6800 EUR
125	0.4859 EUR
175	0.4196 EUR
250	0.3695 EUR
350	0.3536 EUR
450	0.3284 EUR

Compression spring Buy

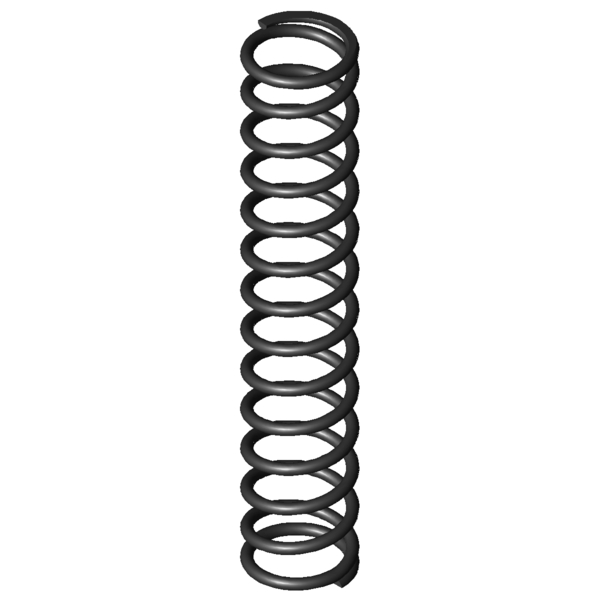

Product image Compression spring D-277

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-277

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	2.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	20	mm	Mean coil diameter
De	22.5	mm	Outer coil diameter
Dd	16.8	mm	maximum diameter of mandrel
Dh	23.3	mm	minimum diameter of bush
L0	120	mm	unstressed spring length
Lk	71.34	mm	buckling length
Fn	293.289	N	maximum force in static use
Ln	46.3	mm	Minimum length in static use
sn	73.7	mm	Maximum spring deflection in static use
Fndyn	245.933	N	maximum force in dynamic use
Lndyn	58.2	mm	Minimum length in dynamic use
shdyn	22.59	mm	Maximum stroke in dynamic use
S	9.4	mm	pitch of spring
n	12.5	pc.	number of active coils
nt		pc.	total number of coils
R	3.979	N/mm	Spring rate
Weight	35.3507	g	weight of one spring
Fntol	13.7	N	(+/-) tolerance of maximum force in static use
Fndtol	13.51	N	(+/-) tolerance of maximum dynamic force
Detol	0.35	mm	(+/-) tolerances of outer coil diameter
L0tol	2.28	mm	(+/-) tolerance of unstressed spring length
Price group	J	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

force-path-calculation Compression spring D-277

Inquiry formular Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

Inquiry formular Compression spring D-277

Similar compression springs to Compression spring D-277 Spring steel Ø 2.5 x 20 x 120 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-277	EN 10270-1	2.5	22.5	120	293.289	46.3	73.7	12.5	3.979	45.9 \| 81.3 \| 41.2 \| 15.3
VD-277	1.4310	2.5	22.5	120	255.322	45.3	74.7	12.5	3.418	81.1 \| 91.8 \| 81.6 \| 69.8
VD-277A	1.4310	2.5	22.5	120	137.839	60.32	59.69	18.5	2.309	90.1 \| 91.8 \| 81.8 \| 96.8

Number of similar metal springs: 3

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-180Y-04	19	116	0.329	EN 10270-1	29.595	26.17	89.83	64.5 \| 87.9 \| 65.3 \| 40.2
D-180L	20	130	0.335	EN 10270-1	37.101	19.14	110.86	42.4 \| 76.4 \| 38.5 \| 12.4
D-206D-18	20.4	125	0.456	EN 10270-1	44.788	26.88	98.12	47.4 \| 80.9 \| 44.4 \| 17.0
D-207JT	22	110	0.479	EN 10270-1	38.851	28.88	81.12	50.0 \| 83.1 \| 48.9 \| 17.8
D-207J-73	20	112	0.776	EN 10270-1	68.329	23.92	88.08	91.6 \| 95.2 \| 85.1 \| 94.6
D-210	21.6	110	0.982	EN 10270-1	83.358	25.1	84.9	85.9 \| 95.4 \| 78.7 \| 83.6
D-243A	22	135	1.101	EN 10270-1	93.34	50.25	84.75	64.7 \| 88.9 \| 64.3 \| 41.0
D-232M-02	20	118	1.223	EN 10270-1	99.938	36.31	81.69	77.9 \| 92.0 \| 74.5 \| 67.1
D-243	22	135	1.63	EN 10270-1	156.48	39	96	76.5 \| 88.9 \| 79.8 \| 60.6
D-247	21	115	1.76	EN 10270-1	136.68	37.36	77.64	47.9 \| 81.4 \| 45.9 \| 16.5
D-242A	22	102	1.772	EN 10270-1	122.693	32.75	69.25	60.3 \| 88.8 \| 59.5 \| 32.5
D-277A	22.5	120	2.689	EN 10270-1	160.484	60.32	59.69	57.0 \| 87.5 \| 58.2 \| 25.2
D-263VE	20	127	2.779	EN 10270-1	199.574	55.18	71.82	92.9 \| 100.0 \| 92.9 \| 85.9
D-276B	22.5	103	3.685	EN 10270-1	212.369	45.37	57.64	48.0 \| 84.8 \| 45.0 \| 14.1
D-277	22.5	120	3.979	EN 10270-1	293.289	46.3	73.7	45.9 \| 81.3 \| 41.2 \| 15.3
D-278D	19.5	125	4.378	EN 10270-1	288.607	59.08	65.92	76.2 \| 94.2 \| 73.1 \| 61.4
D-307A	23.2	105	7.218	EN 10270-1	216.616	74.99	30.01	55.9 \| 92.2 \| 47.7 \| 27.7
D-288Z-54	21	124	7.648	EN 10270-1	412.647	70.05	53.95	63.6 \| 91.1 \| 64.6 \| 35.2
D-308A-05	22	113	9.743	EN 10270-1	446.114	67.21	45.79	63.6 \| 88.2 \| 65.1 \| 37.4
D-288X-11	19.4	115	10.184	EN 10270-1	540.781	61.9	53.1	58.4 \| 89.4 \| 59.3 \| 26.4
D-307	23.2	105	10.682	EN 10270-1	558.22	52.74	52.26	66.1 \| 92.2 \| 65.1 \| 41.0
D-313N	25	123	11.264	EN 10270-1	579.688	71.54	51.46	66.8 \| 90.5 \| 66.7 \| 43.2
D-313A	19.2	120	11.591	EN 10270-1	367.438	88.3	31.7	53.1 \| 87.8 \| 48.4 \| 23.2
D-313	19.2	120	14.097	EN 10270-1	652.141	73.74	46.26	52.6 \| 87.8 \| 51.1 \| 19.1
D-308B	21.2	120	14.653	EN 10270-1	637.425	76.5	43.5	52.7 \| 90.8 \| 49.0 \| 18.3
D-313A-12	19.5	127	14.956	EN 10270-1	735.305	77.84	49.16	51.9 \| 85.6 \| 52.1 \| 18.0
D-313A-11	19.5	115	16.716	EN 10270-1	746.566	70.34	44.66	50.1 \| 86.1 \| 48.2 \| 16.1
D-338	24	105	26.08	EN 10270-1	1046.46	64.88	40.13	100.0 \| 100.0 \| 100.0 \| 100.0
D-339A-06	21	125	28.694	EN 10270-1	964.114	91.4	33.6	45.3 \| 83.9 \| 38.0 \| 13.9
D-339V	22	110	50.289	EN 10270-1	1141.191	87.31	22.69	72.7 \| 92.0 \| 74.1 \| 51.8

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-277

Country of origin: DE, German; Compression spring D-277

Product image - Compression springs D-277

QR-Code: Compression spring D-277

QR-Code - Compression springs - D-277 | https://www.federnshop.com/en/products/compression_springs/d-277.html
