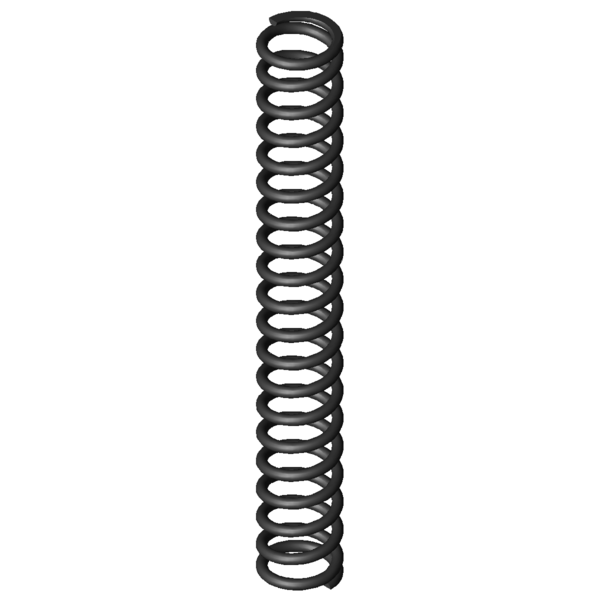

Home » Products » Compression springs » d-200 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm Scaled prices - Compression spring D-200 Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring D-200 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-200 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.25 mm Wire diameter Di mm Inner coil diameter D 8 mm Mean coil diameter De 9.25 mm Outer coil diameter Dd 6.3 mm maximum diameter of mandrel Dh 9.8 mm minimum diameter of bush L0 69 mm unstressed spring length Lk 57.65 mm buckling length Fn 103.064 N maximum force in static use Ln 29.75 mm Minimum length in static use sn 39.25 mm Maximum spring deflection in static use Fndyn 82.714 N maximum force in dynamic use Lndyn 37.5 mm Minimum length in dynamic use shdyn 11.24 mm Maximum stroke in dynamic use S 3.662 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 2.626 N/mm Spring rate Weight 4.9979 g weight of one spring Fntol 5.45 N (+/-) tolerance of maximum force in static use Fndtol 5.38 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.48 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm Datasheet download pdf file Metal spring characteristic Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm Metal spring characteristic download pdf file CAD data Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm force-path-calculation Compression spring D-200 Inquiry formular Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm Inquiry formular Compression spring D-200 Similar compression springs to Compression spring D-200 Spring steel Ø 1.25 x 8 x 69 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-200 EN 10270-1 1.25 9.25 69 103.064 29.75 39.25 18.5 2.626 100.0 | 100.0 | 100.0 | 100.0 VD-200 1.4310 1.25 9.25 69 89.404 29.36 39.64 18.5 2.255 92.9 | 100.0 | 92.9 | 85.9 VD-200A 1.4310 1.25 9.25 69 62.742 35.17 33.83 22.5 1.854 81.4 | 100.0 | 73.5 | 70.6 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-127 8.8 68 0.441 EN 10270-1 21.102 20.1 47.9 51.3 | 85.9 | 51.2 | 16.8 D-143D 10 76.3 0.572 EN 10270-1 32.627 19.28 57.02 52.3 | 85.0 | 50.2 | 21.8 D-143H 9.5 65 0.778 EN 10270-1 37.497 16.83 48.17 58.8 | 87.9 | 58.9 | 29.6 D-165A 9 59 0.884 EN 10270-1 26.61 28.91 30.09 57.5 | 87.6 | 51.2 | 33.7 D-166E 8.3 64 1.069 EN 10270-1 35.371 30.91 33.09 62.5 | 87.5 | 59.3 | 40.7 D-165 9 59 1.076 EN 10270-1 37.508 24.13 34.87 63.7 | 87.6 | 62.6 | 41.0 D-166N 8 69.7 1.32 EN 10270-1 54.513 28.4 41.3 70.9 | 88.5 | 74.0 | 50.3 D-180-07 8.3 76 1.332 EN 10270-1 47.127 40.62 35.38 69.4 | 89.5 | 67.9 | 50.7 D-180-06 8.3 64 1.631 EN 10270-1 49.622 33.58 30.42 71.7 | 90.2 | 62.8 | 62.1 D-180-14 9 74 1.635 EN 10270-1 73.014 29.35 44.65 78.2 | 92.8 | 79.4 | 62.3 D-195A-12 11 70 1.731 EN 10270-1 76.903 25.58 44.42 80.5 | 94.2 | 81.5 | 65.9 D-180Q-04 11 68.7 1.796 EN 10270-1 75.414 26.7 42 81.6 | 93.2 | 83.3 | 68.4 D-200A 9.25 69 2.159 EN 10270-1 73.049 35.17 33.83 86.9 | 100.0 | 78.5 | 82.2 D-207AE 11 69 2.391 EN 10270-1 85.8 33.12 35.88 89.8 | 91.1 | 87.3 | 91.1 D-200 9.25 69 2.626 EN 10270-1 103.064 29.75 39.25 100.0 | 100.0 | 100.0 | 100.0 D-199B 9.25 58 2.944 EN 10270-1 92.873 26.45 31.55 89.7 | 94.7 | 85.2 | 89.2 D-207D-08 8.6 76 3.745 EN 10270-1 106.819 47.48 28.52 81.9 | 91.0 | 84.6 | 70.1 D-207KO 10 67.7 4.097 EN 10270-1 120.415 38.31 29.39 78.5 | 91.3 | 80.2 | 64.1 D-207KP 10 75 4.097 EN 10270-1 150.32 38.31 36.69 78.1 | 89.3 | 81.0 | 64.1 D-207D-07 8.6 64 4.462 EN 10270-1 105.767 40.3 23.7 76.5 | 91.7 | 78.9 | 58.8 D-207KN 10 61.5 4.539 EN 10270-1 120.924 34.86 26.64 74.2 | 88.3 | 76.6 | 57.8 D-232A 9.6 65.5 5.796 EN 10270-1 123.735 44.15 21.35 68.0 | 89.8 | 68.8 | 45.3 D-232A-08 9 76 6.102 EN 10270-1 145.806 52.11 23.89 65.8 | 88.7 | 65.8 | 43.0 D-232 9.6 65.5 7.049 EN 10270-1 201.803 36.87 28.63 63.0 | 89.8 | 62.0 | 37.3 D-232A-07 9 64 7.846 EN 10270-1 178.584 41.24 22.76 60.2 | 89.4 | 57.8 | 33.5 D-234B-08 9.2 76 10.557 EN 10270-1 229.702 54.24 21.76 53.9 | 86.6 | 50.2 | 24.9 D-234B-07 9.2 64 12.567 EN 10270-1 224.474 46.14 17.86 51.3 | 87.2 | 45.7 | 20.9 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-200 Country of origin: DE, German; Compression spring D-200 Product image - Compression springs D-200 QR-Code: Compression spring D-200
