Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

Scaled prices - Compression spring D-166E

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

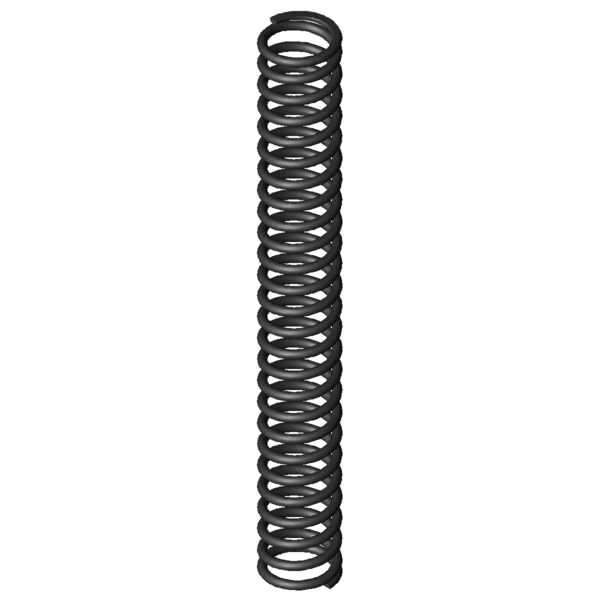

Product image Compression spring D-166E

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-166E

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.3	mm	Mean coil diameter
De	8.3	mm	Outer coil diameter
Dd	5.8	mm	maximum diameter of mandrel
Dh	8.4	mm	minimum diameter of bush
L0	64	mm	unstressed spring length
Lk	53.85	mm	buckling length
Fn	35.371	N	maximum force in static use
Ln	30.91	mm	Minimum length in static use
sn	33.09	mm	Maximum spring deflection in static use
Fndyn	33.007	N	maximum force in dynamic use
Lndyn	33.12	mm	Minimum length in dynamic use
shdyn	22.38	mm	Maximum stroke in dynamic use
S	2.571	mm	pitch of spring
n	24.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.069	N/mm	Spring rate
Weight	3.773	g	weight of one spring
Fntol	2.58	N	(+/-) tolerance of maximum force in static use
Fndtol	2.55	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.92	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

force-path-calculation Compression spring D-166E

Inquiry formular Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

Inquiry formular Compression spring D-166E

Similar compression springs to Compression spring D-166E Spring steel Ø 1 x 7.3 x 64 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-166E	EN 10270-1	1	8.3	64	35.371	30.91	33.09	24.5	1.069	83.2 \| 96.1 \| 72.5 \| 81.0
VD-166E	1.4310	1	8.3	64	30.38	30.91	33.09	24.5	0.918	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-068A	6.8	65	0.113	EN 10270-1	5.539	16.05	48.95	43.0 \| 76.8 \| 41.6 \| 10.6
D-063L	8.5	60.5	0.131	EN 10270-1	6.866	8.05	52.45	45.7 \| 80.7 \| 41.6 \| 14.8
D-068	6.8	65	0.138	EN 10270-1	7.105	13.38	51.62	44.3 \| 76.1 \| 46.5 \| 10.4
D-090G	9	61.6	0.163	EN 10270-1	8.604	8.7	52.9	48.9 \| 83.6 \| 44.6 \| 18.4
D-094A	8.63	55	0.169	EN 10270-1	6.455	16.9	38.1	51.6 \| 84.0 \| 51.6 \| 19.2
D-094	8.63	55	0.251	EN 10270-1	10.826	11.83	43.17	55.9 \| 84.0 \| 55.2 \| 28.4
D-127A	8.8	68	0.362	EN 10270-1	15.902	24.1	43.9	64.4 \| 88.2 \| 64.2 \| 41.0
D-115H-04	8	63	0.381	EN 10270-1	17.915	15.99	47.01	64.3 \| 84.2 \| 65.7 \| 43.1
D-127	8.8	68	0.441	EN 10270-1	21.102	20.1	47.9	69.7 \| 88.2 \| 71.1 \| 49.8
D-132A-01	7.1	65	0.566	EN 10270-1	19.938	29.76	35.24	63.7 \| 87.3 \| 61.0 \| 42.9
D-127E-06	8	60.8	0.604	EN 10270-1	24.85	19.68	41.12	80.1 \| 88.6 \| 83.3 \| 68.3
D-143H	9.5	65	0.778	EN 10270-1	37.497	16.83	48.17	82.2 \| 91.8 \| 66.7 \| 88.0
D-165A	9	59	0.884	EN 10270-1	26.61	28.91	30.09	100.0 \| 100.0 \| 100.0 \| 100.0
D-143M	8	57	0.958	EN 10270-1	32.808	22.74	34.26	89.5 \| 91.8 \| 84.5 \| 92.3
D-166E	8.3	64	1.069	EN 10270-1	35.371	30.91	33.09	86.9 \| 94.8 \| 83.1 \| 82.7
D-165	9	59	1.076	EN 10270-1	37.508	24.13	34.87	86.9 \| 100.0 \| 78.6 \| 82.2
D-166N	8	69.7	1.32	EN 10270-1	54.513	28.4	41.3	100.0 \| 100.0 \| 100.0 \| 100.0
D-180-07	8.3	76	1.332	EN 10270-1	47.127	40.62	35.38	92.7 \| 93.0 \| 86.1 \| 99.1
D-180-06	8.3	64	1.631	EN 10270-1	49.622	33.58	30.42	74.1 \| 91.8 \| 76.3 \| 54.2
D-180-05	8.3	51	1.998	EN 10270-1	46.328	27.81	23.19	72.3 \| 90.2 \| 73.2 \| 53.5
D-200A	9.25	69	2.159	EN 10270-1	73.049	35.17	33.83	76.0 \| 88.5 \| 78.3 \| 61.1
D-200	9.25	69	2.626	EN 10270-1	103.064	29.75	39.25	70.9 \| 88.5 \| 74.0 \| 50.3
D-199B	9.25	58	2.944	EN 10270-1	92.873	26.45	31.55	61.3 \| 91.9 \| 62.0 \| 30.0
D-200E	8.05	57	3.516	EN 10270-1	78.447	34.69	22.31	56.0 \| 88.7 \| 54.0 \| 25.2
D-200A-10	8.5	57.5	3.528	EN 10270-1	100.178	29.1	28.4	58.7 \| 90.6 \| 60.5 \| 25.1
D-207D-07	8.6	64	4.462	EN 10270-1	105.767	40.3	23.7	52.7 \| 86.4 \| 52.0 \| 19.8
D-232A	9.6	65.5	5.796	EN 10270-1	123.735	44.15	21.35	47.9 \| 82.1 \| 46.2 \| 15.3
D-232	9.6	65.5	7.049	EN 10270-1	201.803	36.87	28.63	49.6 \| 82.1 \| 54.2 \| 12.5
D-232A-07	9	64	7.846	EN 10270-1	178.584	41.24	22.76	46.9 \| 81.1 \| 42.8 \| 16.8
D-207KV	8.5	52.2	8.128	EN 10270-1	144.417	34.43	17.77	45.0 \| 83.2 \| 38.5 \| 13.2

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-166E
