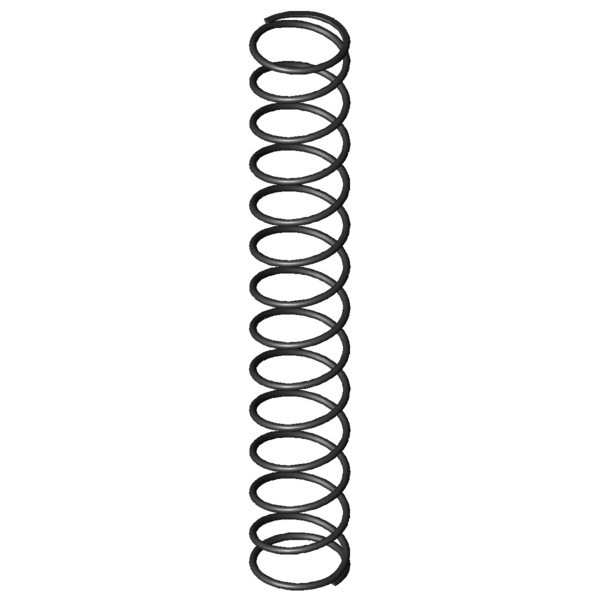

Home » Products » Compression springs » d-094 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm Scaled prices - Compression spring D-094 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-094 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-094 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.63 mm Wire diameter Di mm Inner coil diameter D 8 mm Mean coil diameter De 8.63 mm Outer coil diameter Dd 6.9 mm maximum diameter of mandrel Dh 9.4 mm minimum diameter of bush L0 55 mm unstressed spring length Lk 39.56 mm buckling length Fn 10.826 N maximum force in static use Ln 11.83 mm Minimum length in static use sn 43.17 mm Maximum spring deflection in static use Fndyn 10.487 N maximum force in dynamic use Lndyn 13.18 mm Minimum length in dynamic use shdyn 14.89 mm Maximum stroke in dynamic use S 4.35 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.251 N/mm Spring rate Weight 0.898 g weight of one spring Fntol 0.77 N (+/-) tolerance of maximum force in static use Fndtol 0.76 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.41 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm Datasheet download pdf file Metal spring characteristic Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm Metal spring characteristic download pdf file CAD data Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm force-path-calculation Compression spring D-094 Inquiry formular Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm Inquiry formular Compression spring D-094 Similar compression springs to Compression spring D-094 Spring steel Ø 0.63 x 8 x 55 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-094 EN 10270-1 0.63 8.63 55 10.826 11.83 43.17 12.5 0.251 80.5 | 100.0 | 73.9 | 67.6 VD-094 1.4310 0.63 8.63 55 9.298 11.83 43.17 12.5 0.215 85.8 | 100.0 | 78.8 | 78.7 VD-094A 1.4310 0.63 8.63 55 5.544 16.9 38.1 18.5 0.146 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063L 8.5 60.5 0.131 EN 10270-1 6.866 8.05 52.45 83.4 | 89.6 | 83.3 | 77.3 D-063Q 7.6 55 0.132 EN 10270-1 5.868 10.47 44.53 85.1 | 89.1 | 88.2 | 77.8 D-090G 9 61.6 0.163 EN 10270-1 8.604 8.7 52.9 86.8 | 90.8 | 73.5 | 96.0 D-094A 8.63 55 0.169 EN 10270-1 6.455 16.9 38.1 100.0 | 100.0 | 100.0 | 100.0 D-094 8.63 55 0.251 EN 10270-1 10.826 11.83 43.17 80.5 | 100.0 | 73.9 | 67.6 D-126A 8.8 47 0.441 EN 10270-1 11.851 20.1 26.9 62.8 | 87.4 | 62.5 | 38.5 D-115M 7.5 56.8 0.502 EN 10270-1 21.043 14.87 41.93 61.9 | 91.2 | 60.8 | 33.8 D-127E-06 8 60.8 0.604 EN 10270-1 24.85 19.68 41.12 58.2 | 87.3 | 59.3 | 28.0 D-126 8.8 47 0.652 EN 10270-1 21.451 14.1 32.9 57.2 | 87.4 | 58.2 | 26.0 D-165A 9 59 0.884 EN 10270-1 26.61 28.91 30.09 51.6 | 84.0 | 51.6 | 19.2 D-143M 8 57 0.958 EN 10270-1 32.808 22.74 34.26 53.0 | 86.4 | 54.8 | 17.7 D-165 9 59 1.076 EN 10270-1 37.508 24.13 34.87 51.4 | 84.0 | 54.4 | 15.8 D-166D 8.3 50 1.416 EN 10270-1 37.047 23.83 26.17 46.1 | 83.4 | 43.1 | 12.0 D-164 9 52 1.474 EN 10270-1 49.897 18.15 33.85 49.0 | 84.5 | 50.9 | 11.5 D-166M 8 51.1 1.8 EN 10270-1 53.529 21.36 29.74 45.8 | 82.9 | 45.1 | 9.4 D-180-05 8.3 51 1.998 EN 10270-1 46.328 27.81 23.19 42.6 | 82.1 | 37.4 | 8.5 D-180-13 9 50 2.42 EN 10270-1 73.089 19.8 30.2 44.1 | 81.4 | 44.0 | 7.0 D-199B 9.25 58 2.944 EN 10270-1 92.873 26.45 31.55 43.4 | 79.5 | 44.9 | 5.8 D-180U 8.5 46.5 3.503 EN 10270-1 79.204 23.89 22.61 39.0 | 78.5 | 33.7 | 4.8 D-200E 8.05 57 3.516 EN 10270-1 78.447 34.69 22.31 40.0 | 80.1 | 32.7 | 7.1 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-094 Country of origin: DE, German; Compression spring D-094 Product image - Compression springs D-094 QR-Code: Compression spring D-094
