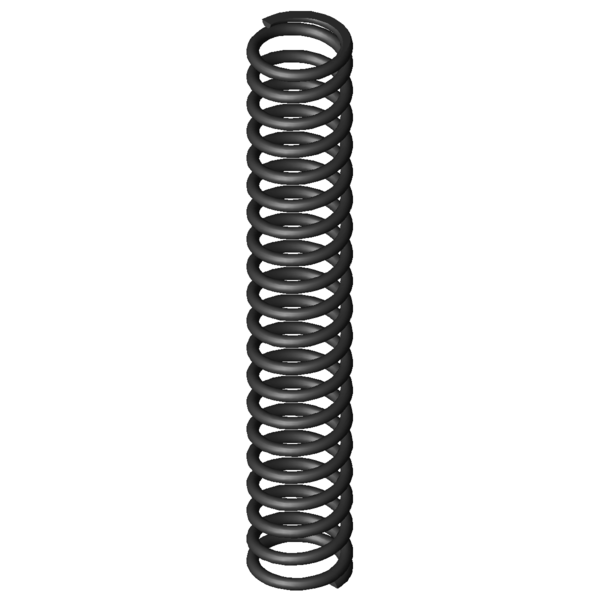

Home » Products » Compression springs » d-166d Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm Scaled prices - Compression spring D-166D Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-166D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-166D Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1 mm Wire diameter Di mm Inner coil diameter D 7.3 mm Mean coil diameter De 8.3 mm Outer coil diameter Dd 5.8 mm maximum diameter of mandrel Dh 8.4 mm minimum diameter of bush L0 50 mm unstressed spring length Lk 35.83 mm buckling length Fn 37.047 N maximum force in static use Ln 23.83 mm Minimum length in static use sn 26.17 mm Maximum spring deflection in static use Fndyn 34.681 N maximum force in dynamic use Lndyn 25.5 mm Minimum length in dynamic use shdyn 16.48 mm Maximum stroke in dynamic use S 2.649 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 1.416 N/mm Spring rate Weight 2.9188 g weight of one spring Fntol 2.66 N (+/-) tolerance of maximum force in static use Fndtol 2.62 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.49 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm Datasheet download pdf file Metal spring characteristic Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm Metal spring characteristic download pdf file CAD data Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm force-path-calculation Compression spring D-166D Inquiry formular Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm Inquiry formular Compression spring D-166D Similar compression springs to Compression spring D-166D Spring steel Ø 1 x 7.3 x 50 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-166D EN 10270-1 1 8.3 50 37.047 23.83 26.17 18.5 1.416 100.0 | 100.0 | 100.0 | 100.0 VD-166D 1.4310 1 8.3 50 31.819 23.83 26.17 18.5 1.216 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063Q 7.6 55 0.132 EN 10270-1 5.868 10.47 44.53 41.4 | 77.5 | 37.3 | 9.3 D-094A 8.63 55 0.169 EN 10270-1 6.455 16.9 38.1 46.1 | 83.4 | 43.1 | 12.0 D-094 8.63 55 0.251 EN 10270-1 10.826 11.83 43.17 48.7 | 83.4 | 44.9 | 17.7 D-095E 7.9 49 0.334 EN 10270-1 12.531 11.5 37.5 53.6 | 85.4 | 51.8 | 23.6 D-126A 8.8 47 0.441 EN 10270-1 11.851 20.1 26.9 61.7 | 89.4 | 64.6 | 31.1 D-115H-03 8 48 0.503 EN 10270-1 17.881 12.45 35.55 61.3 | 87.5 | 60.9 | 35.5 D-126 8.8 47 0.652 EN 10270-1 21.451 14.1 32.9 68.1 | 89.4 | 68.7 | 46.1 D-127E 8.3 45 0.733 EN 10270-1 22.051 14.9 30.1 71.7 | 90.0 | 73.2 | 51.8 D-132 7.1 48 0.902 EN 10270-1 25.928 19.26 28.74 77.1 | 87.2 | 80.5 | 63.7 D-143M 8 57 0.958 EN 10270-1 32.808 22.74 34.26 80.5 | 91.4 | 82.5 | 67.6 D-143L 8 43 1.288 EN 10270-1 33.006 17.37 25.63 91.8 | 90.8 | 93.5 | 91.0 D-166D 8.3 50 1.416 EN 10270-1 37.047 23.83 26.17 100.0 | 100.0 | 100.0 | 100.0 D-164 9 52 1.474 EN 10270-1 49.897 18.15 33.85 89.3 | 96.1 | 75.8 | 96.0 D-166M 8 51.1 1.8 EN 10270-1 53.529 21.36 29.74 85.1 | 98.1 | 78.6 | 78.7 D-180-05 8.3 51 1.998 EN 10270-1 46.328 27.81 23.19 83.8 | 96.3 | 84.3 | 70.9 D-180-04 8.3 44 2.284 EN 10270-1 44.272 24.61 19.39 78.0 | 93.0 | 78.9 | 62.0 D-180-13 9 50 2.42 EN 10270-1 73.089 19.8 30.2 73.8 | 94.4 | 68.7 | 58.5 D-199A 9.25 47.5 2.626 EN 10270-1 47.637 29.36 18.14 71.9 | 88.2 | 73.5 | 53.9 D-180U 8.5 46.5 3.503 EN 10270-1 79.204 23.89 22.61 66.1 | 91.3 | 66.6 | 40.4 D-200E 8.05 57 3.516 EN 10270-1 78.447 34.69 22.31 64.9 | 88.2 | 66.2 | 40.3 D-200A-10 8.5 57.5 3.528 EN 10270-1 100.178 29.1 28.4 64.3 | 88.2 | 64.6 | 40.1 D-199 9.25 47.5 3.886 EN 10270-1 103.179 20.95 26.55 64.0 | 88.2 | 67.2 | 36.4 D-205A 7.55 51.5 4.421 EN 10270-1 75.114 34.51 16.99 59.5 | 89.4 | 57.1 | 32.0 D-200A-06 8.5 42 5.221 EN 10270-1 112.364 20.48 21.52 57.3 | 87.2 | 57.6 | 27.1 D-205 7.55 51.5 5.377 EN 10270-1 121.951 28.82 22.68 58.1 | 89.4 | 58.5 | 26.3 D-207D-06 8.6 51 5.519 EN 10270-1 98.698 33.12 17.88 55.7 | 88.7 | 52.9 | 25.6 D-207D-05 8.6 44 6.355 EN 10270-1 94.518 29.13 14.87 51.9 | 85.3 | 48.0 | 22.3 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-166D Country of origin: DE, German; Compression spring D-166D Product image - Compression springs D-166D QR-Code: Compression spring D-166D
