Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

Scaled prices - Compression spring D-180-04

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

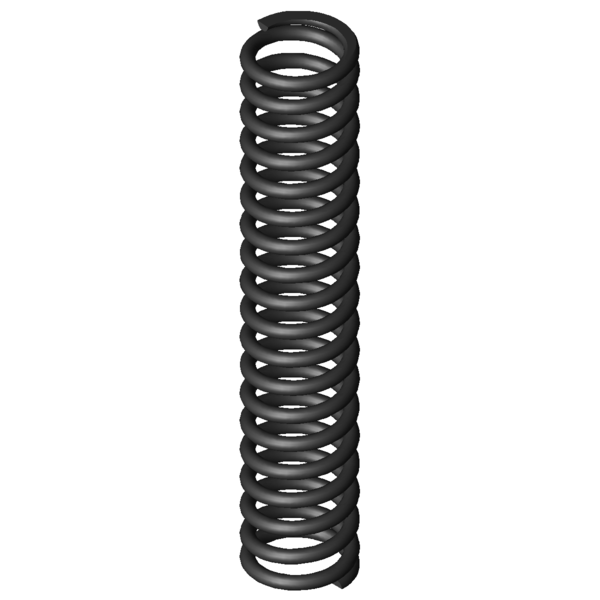

Product image Compression spring D-180-04

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-180-04

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.2	mm	Mean coil diameter
De	8.3	mm	Outer coil diameter
Dd	5.6	mm	maximum diameter of mandrel
Dh	8.8	mm	minimum diameter of bush
L0	44	mm	unstressed spring length
Lk	27.09	mm	buckling length
Fn	44.272	N	maximum force in static use
Ln	24.61	mm	Minimum length in static use
sn	19.39	mm	Maximum spring deflection in static use
Fndyn	40.669	N	maximum force in dynamic use
Lndyn	26.19	mm	Minimum length in dynamic use
shdyn	13.99	mm	Maximum stroke in dynamic use
S	2.451	mm	pitch of spring
n	17.5	pc.	number of active coils
nt		pc.	total number of coils
R	2.284	N/mm	Spring rate
Weight	3.3134	g	weight of one spring
Fntol	3.68	N	(+/-) tolerance of maximum force in static use
Fndtol	3.63	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.32	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

force-path-calculation Compression spring D-180-04

Inquiry formular Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

Inquiry formular Compression spring D-180-04

Similar compression springs to Compression spring D-180-04 Spring steel Ø 1.1 x 7.2 x 44 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-180-04	EN 10270-1	1.1	8.3	44	44.272	24.61	19.39	17.5	2.284	100.0 \| 100.0 \| 100.0 \| 100.0
VD-180-04	1.4310	1.1	8.3	44	38.025	24.61	19.39	17.5	1.961	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-115H-03	8	48	0.503	EN 10270-1	17.881	12.45	35.55	51.1 \| 83.9 \| 47.5 \| 22.0
D-115H-02	8	41	0.547	EN 10270-1	16.092	11.57	29.43	53.2 \| 84.4 \| 51.1 \| 23.9
D-126	8.8	47	0.652	EN 10270-1	21.451	14.1	32.9	56.4 \| 86.9 \| 53.7 \| 28.6
D-127E	8.3	45	0.733	EN 10270-1	22.051	14.9	30.1	59.8 \| 90.2 \| 57.1 \| 32.1
D-127E-05	8	41.6	0.894	EN 10270-1	24.85	13.82	27.79	63.3 \| 87.9 \| 63.0 \| 39.2
D-143G	9.5	43	1.001	EN 10270-1	29.535	13.49	29.51	66.3 \| 89.0 \| 66.2 \| 43.8
D-163A	9	40.5	1.076	EN 10270-1	17.611	24.13	16.37	67.0 \| 91.7 \| 62.1 \| 47.1
D-143L	8	43	1.288	EN 10270-1	33.006	17.37	25.63	74.5 \| 92.0 \| 75.1 \| 56.4
D-166D	8.3	50	1.416	EN 10270-1	37.047	23.83	26.17	78.0 \| 93.0 \| 78.9 \| 62.0
D-163	9	40.5	1.592	EN 10270-1	37.487	16.95	23.55	81.6 \| 91.7 \| 83.5 \| 69.7
D-165E	8.7	42	1.653	EN 10270-1	39.587	18.05	23.95	83.8 \| 93.9 \| 85.2 \| 72.4
D-171A	7.3	43.5	1.811	EN 10270-1	27.905	28.09	15.41	81.0 \| 92.6 \| 71.3 \| 79.3
D-180-05	8.3	51	1.998	EN 10270-1	46.328	27.81	23.19	90.8 \| 95.4 \| 89.6 \| 87.5
D-171	7.3	43.5	2.202	EN 10270-1	44.153	23.45	20.05	95.7 \| 92.6 \| 98.2 \| 96.4
D-180-04	8.3	44	2.284	EN 10270-1	44.272	24.61	19.39	100.0 \| 100.0 \| 100.0 \| 100.0
D-180-03	8.3	38	2.756	EN 10270-1	47.485	20.77	17.23	89.8 \| 95.5 \| 91.0 \| 82.8
D-180U	8.5	46.5	3.503	EN 10270-1	79.204	23.89	22.61	76.9 \| 94.6 \| 70.8 \| 65.2
D-180D	7.5	41	3.671	EN 10270-1	70.404	21.82	19.18	79.2 \| 94.5 \| 80.9 \| 62.2
D-200D	8.05	42	4.794	EN 10270-1	76.21	26.1	15.9	70.4 \| 93.5 \| 70.0 \| 47.6
D-200A-06	8.5	42	5.221	EN 10270-1	112.364	20.48	21.52	67.4 \| 93.7 \| 64.8 \| 43.7
D-207D-05	8.6	44	6.355	EN 10270-1	94.518	29.13	14.87	63.1 \| 91.7 \| 61.8 \| 35.9
D-231A	9.6	45	7.049	EN 10270-1	57.306	36.87	8.13	58.8 \| 84.3 \| 59.6 \| 32.4
D-207D-04	8.6	38	8.066	EN 10270-1	116.613	23.54	14.46	57.2 \| 87.1 \| 56.3 \| 28.3
D-231	9.6	45	10.432	EN 10270-1	198.73	25.95	19.05	55.5 \| 84.3 \| 60.3 \| 21.9
D-232A-05	9	44	10.984	EN 10270-1	149.711	30.37	13.63	52.6 \| 87.0 \| 49.9 \| 20.8
D-232E	8	42.2	16.431	EN 10270-1	182.797	31.08	11.12	47.2 \| 87.0 \| 40.8 \| 13.9
D-234B-05	9.2	44	18.201	EN 10270-1	200.726	32.97	11.03	45.3 \| 83.8 \| 39.5 \| 12.5
D-234F	9	47.1	18.485	EN 10270-1	224.42	34.96	12.14	45.3 \| 82.3 \| 41.2 \| 12.4

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-180-04

Country of origin: DE, German; Compression spring D-180-04
