Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

Scaled prices - Compression spring D-165E

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

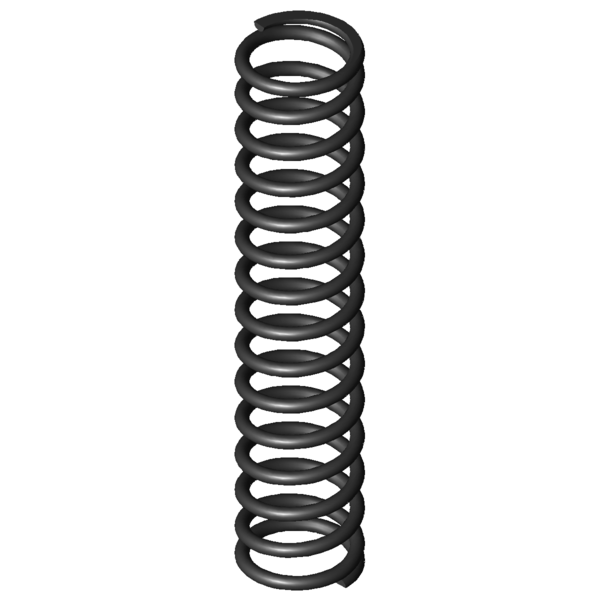

Product image Compression spring D-165E

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-165E

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.7	mm	Mean coil diameter
De	8.7	mm	Outer coil diameter
Dd	6.2	mm	maximum diameter of mandrel
Dh	9.2	mm	minimum diameter of bush
L0	42	mm	unstressed spring length
Lk	18.49	mm	buckling length
Fn	39.587	N	maximum force in static use
Ln	18.05	mm	Minimum length in static use
sn	23.95	mm	Maximum spring deflection in static use
Fndyn	37.473	N	maximum force in dynamic use
Lndyn	19.33	mm	Minimum length in dynamic use
shdyn	12.6	mm	Maximum stroke in dynamic use
S	3.037	mm	pitch of spring
n	13.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.653	N/mm	Spring rate
Weight	2.3278	g	weight of one spring
Fntol	2.59	N	(+/-) tolerance of maximum force in static use
Fndtol	2.56	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.21	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

force-path-calculation Compression spring D-165E

Inquiry formular Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

Inquiry formular Compression spring D-165E

Similar compression springs to Compression spring D-165E Spring steel Ø 1 x 7.7 x 42 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-165E	EN 10270-1	1	8.7	42	39.587	18.05	23.95	13.5	1.653	100.0 \| 100.0 \| 100.0 \| 100.0
VD-165E	1.4310	1	8.7	42	34.001	18.05	23.95	13.5	1.42	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-093A	8.63	37	0.251	EN 10270-1	6.312	11.83	25.17	51.4 \| 83.4 \| 55.5 \| 15.2
D-093	8.63	37	0.369	EN 10270-1	10.53	8.45	28.55	53.7 \| 83.4 \| 55.2 \| 22.3
D-126A	8.8	47	0.441	EN 10270-1	11.851	20.1	26.9	58.5 \| 89.4 \| 59.5 \| 26.7
D-115H-02	8	41	0.547	EN 10270-1	16.092	11.57	29.43	60.2 \| 86.5 \| 61.0 \| 33.1
D-122A-12	10	42.5	0.63	EN 10270-1	20.219	10.43	32.07	63.2 \| 88.6 \| 62.9 \| 38.1
D-126	8.8	47	0.652	EN 10270-1	21.451	14.1	32.9	64.1 \| 89.4 \| 63.5 \| 39.4
D-127E	8.3	45	0.733	EN 10270-1	22.051	14.9	30.1	67.2 \| 89.6 \| 67.6 \| 44.3
D-127E-05	8	41.6	0.894	EN 10270-1	24.85	13.82	27.79	73.0 \| 90.3 \| 74.5 \| 54.1
D-143G	9.5	43	1.001	EN 10270-1	29.535	13.49	29.51	77.2 \| 93.1 \| 77.9 \| 60.6
D-163A	9	40.5	1.076	EN 10270-1	17.611	24.13	16.37	73.1 \| 97.7 \| 56.4 \| 65.1
D-143L	8	43	1.288	EN 10270-1	33.006	17.37	25.63	86.5 \| 93.2 \| 88.4 \| 77.9
D-163	9	40.5	1.592	EN 10270-1	37.487	16.95	23.55	96.8 \| 97.7 \| 96.5 \| 96.3
D-165E	8.7	42	1.653	EN 10270-1	39.587	18.05	23.95	100.0 \| 100.0 \| 100.0 \| 100.0
D-180-04	8.3	44	2.284	EN 10270-1	44.272	24.61	19.39	83.8 \| 93.9 \| 85.2 \| 72.4
D-180-03	8.3	38	2.756	EN 10270-1	47.485	20.77	17.23	76.6 \| 92.3 \| 77.7 \| 60.0
D-180U	8.5	46.5	3.503	EN 10270-1	79.204	23.89	22.61	69.9 \| 90.5 \| 72.2 \| 47.2
D-198A	9.25	39	3.598	EN 10270-1	60.815	22.1	16.9	67.6 \| 89.0 \| 67.8 \| 45.9
D-195A-21	9.5	41	4.218	EN 10270-1	97.89	17.8	23.2	65.9 \| 89.7 \| 68.7 \| 39.2
D-200D	8.05	42	4.794	EN 10270-1	76.21	26.1	15.9	61.5 \| 90.8 \| 59.2 \| 34.5
D-200A-06	8.5	42	5.221	EN 10270-1	112.364	20.48	21.52	62.3 \| 92.6 \| 62.5 \| 31.7
D-207D-05	8.6	44	6.355	EN 10270-1	94.518	29.13	14.87	55.5 \| 88.6 \| 52.0 \| 26.0
D-207KL	10	42.5	6.718	EN 10270-1	120.742	24.53	17.97	54.2 \| 84.2 \| 53.9 \| 24.6
D-207D-04	8.6	38	8.066	EN 10270-1	116.613	23.54	14.46	51.5 \| 86.9 \| 47.2 \| 20.5
D-230A	9.6	40	9.659	EN 10270-1	118.133	27.77	12.23	47.4 \| 82.8 \| 42.3 \| 17.1
D-232A-05	9	44	10.984	EN 10270-1	149.711	30.37	13.63	47.2 \| 84.9 \| 41.7 \| 15.0
D-207KU	8.5	36.3	12.029	EN 10270-1	145.099	24.24	12.06	45.4 \| 83.6 \| 38.8 \| 13.7
D-232A-04	9	38	13.181	EN 10270-1	160.256	25.84	12.16	44.5 \| 83.2 \| 37.7 \| 12.5
D-232E	8	42.2	16.431	EN 10270-1	182.797	31.08	11.12	42.9 \| 84.7 \| 34.0 \| 10.1
