Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

Scaled prices - Compression spring D-180U

Quantity	Single price [EUR]
1	4.9400 EUR
2	3.4800 EUR
3	3.3200 EUR
7	1.9900 EUR
17	1.0000 EUR
37	0.6100 EUR
75	0.4600 EUR
125	0.3945 EUR
175	0.3631 EUR
250	0.3193 EUR
350	0.2780 EUR
450	0.2212 EUR

Compression spring Buy

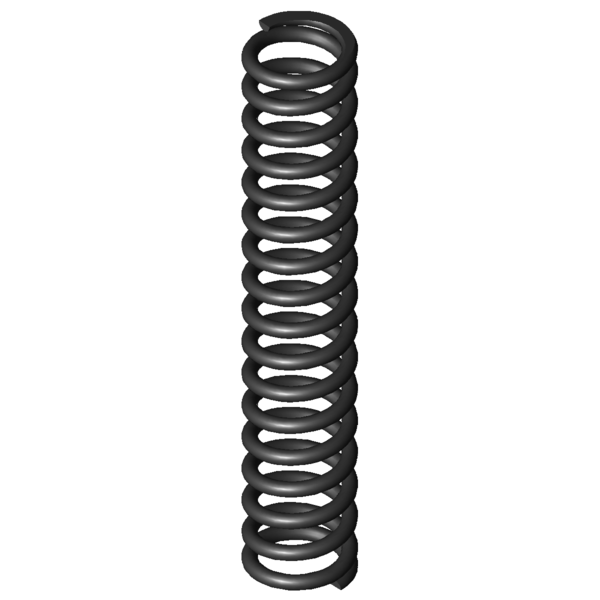

Product image Compression spring D-180U

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-180U

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.2	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.3	mm	Mean coil diameter
De	8.5	mm	Outer coil diameter
Dd	5.6	mm	maximum diameter of mandrel
Dh	9.1	mm	minimum diameter of bush
L0	46.5	mm	unstressed spring length
Lk	30.57	mm	buckling length
Fn	79.204	N	maximum force in static use
Ln	23.89	mm	Minimum length in static use
sn	22.61	mm	Maximum spring deflection in static use
Fndyn	74.132	N	maximum force in dynamic use
Lndyn	25.34	mm	Minimum length in dynamic use
shdyn	9.01	mm	Maximum stroke in dynamic use
S	2.923	mm	pitch of spring
n	15.5	pc.	number of active coils
nt		pc.	total number of coils
R	3.503	N/mm	Spring rate
Weight	3.5879	g	weight of one spring
Fntol	5.27	N	(+/-) tolerance of maximum force in static use
Fndtol	5.19	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.17	mm	(+/-) tolerance of unstressed spring length
Price group	F	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

force-path-calculation Compression spring D-180U

Inquiry formular Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

Inquiry formular Compression spring D-180U

Similar compression springs to Compression spring D-180U Spring steel Ø 1.2 x 7.3 x 46.5 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-180U	EN 10270-1	1.2	8.5	46.5	79.204	23.89	22.61	15.5	3.503	100.0 \| 100.0 \| 100.0 \| 100.0
VD-180U	1.4310	1.2	8.5	46.5	68.028	23.89	22.61	15.5	3.009	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-115H-03	8	48	0.503	EN 10270-1	17.881	12.45	35.55	46.9 \| 83.1 \| 43.1 \| 14.4
D-115H-02	8	41	0.547	EN 10270-1	16.092	11.57	29.43	48.1 \| 80.2 \| 48.6 \| 15.6
D-126	8.8	47	0.652	EN 10270-1	21.451	14.1	32.9	51.3 \| 87.4 \| 47.9 \| 18.6
D-127E	8.3	45	0.733	EN 10270-1	22.051	14.9	30.1	53.1 \| 87.0 \| 51.5 \| 20.9
D-127E-05	8	41.6	0.894	EN 10270-1	24.85	13.82	27.79	55.1 \| 83.4 \| 56.4 \| 25.5
D-143L	8	43	1.288	EN 10270-1	33.006	17.37	25.63	63.0 \| 87.2 \| 64.9 \| 36.8
D-166D	8.3	50	1.416	EN 10270-1	37.047	23.83	26.17	66.1 \| 91.3 \| 66.6 \| 40.4
D-164	9	52	1.474	EN 10270-1	49.897	18.15	33.85	65.3 \| 89.1 \| 64.9 \| 42.1
D-165E	8.7	42	1.653	EN 10270-1	39.587	18.05	23.95	69.9 \| 90.5 \| 72.2 \| 47.2
D-166M	8	51.1	1.8	EN 10270-1	53.529	21.36	29.74	70.9 \| 89.5 \| 71.8 \| 51.4
D-180-05	8.3	51	1.998	EN 10270-1	46.328	27.81	23.19	76.2 \| 93.5 \| 78.0 \| 57.0
D-180-04	8.3	44	2.284	EN 10270-1	44.272	24.61	19.39	76.9 \| 94.6 \| 70.8 \| 65.2
D-180-13	9	50	2.42	EN 10270-1	73.089	19.8	30.2	81.9 \| 93.0 \| 83.6 \| 69.1
D-199A	9.25	47.5	2.626	EN 10270-1	47.637	29.36	18.14	80.1 \| 95.3 \| 70.2 \| 75.0
D-180U	8.5	46.5	3.503	EN 10270-1	79.204	23.89	22.61	100.0 \| 100.0 \| 100.0 \| 100.0
D-199	9.25	47.5	3.886	EN 10270-1	103.179	20.95	26.55	88.8 \| 95.3 \| 81.0 \| 90.1
D-200D	8.05	42	4.794	EN 10270-1	76.21	26.1	15.9	83.3 \| 93.7 \| 83.3 \| 73.1
D-200A-06	8.5	42	5.221	EN 10270-1	112.364	20.48	21.52	81.8 \| 95.4 \| 82.8 \| 67.1
D-207D-06	8.6	51	5.519	EN 10270-1	98.698	33.12	17.88	78.3 \| 91.9 \| 79.7 \| 63.5
D-207D-05	8.6	44	6.355	EN 10270-1	94.518	29.13	14.87	74.3 \| 93.1 \| 74.8 \| 55.1
D-231A	9.6	45	7.049	EN 10270-1	57.306	36.87	8.13	100.0 \| 100.0 \| 100.0 \| 100.0
D-207KV	8.5	52.2	8.128	EN 10270-1	144.417	34.43	17.77	66.5 \| 89.7 \| 66.7 \| 43.1
D-232A-06	9	51	9.692	EN 10270-1	164.831	33.99	17.01	61.6 \| 86.9 \| 61.6 \| 36.2
D-231	9.6	45	10.432	EN 10270-1	198.73	25.95	19.05	60.8 \| 86.8 \| 62.1 \| 33.6
D-232A-05	9	44	10.984	EN 10270-1	149.711	30.37	13.63	70.1 \| 97.2 \| 49.0 \| 64.2
D-234B-06	9.2	51	15.081	EN 10270-1	180.237	39.05	11.95	51.7 \| 83.4 \| 48.4 \| 23.2
D-232E	8	42.2	16.431	EN 10270-1	182.797	31.08	11.12	51.4 \| 86.6 \| 46.3 \| 21.3
D-234B-05	9.2	44	18.201	EN 10270-1	200.726	32.97	11.03	61.3 \| 94.2 \| 51.1 \| 38.7
D-234F	9	47.1	18.485	EN 10270-1	224.42	34.96	12.14	59.0 \| 92.7 \| 46.3 \| 38.1

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-180U

Country of origin: DE, German; Compression spring D-180U
