Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

Scaled prices - Compression spring D-166M

Quantity	Single price [EUR]
1	4.8100 EUR
2	3.3900 EUR
3	3.2300 EUR
7	1.8100 EUR
17	0.7800 EUR
37	0.4700 EUR
75	0.2700 EUR
125	0.2226 EUR
175	0.1689 EUR
250	0.1503 EUR
350	0.1199 EUR
450	0.1011 EUR

Compression spring Buy

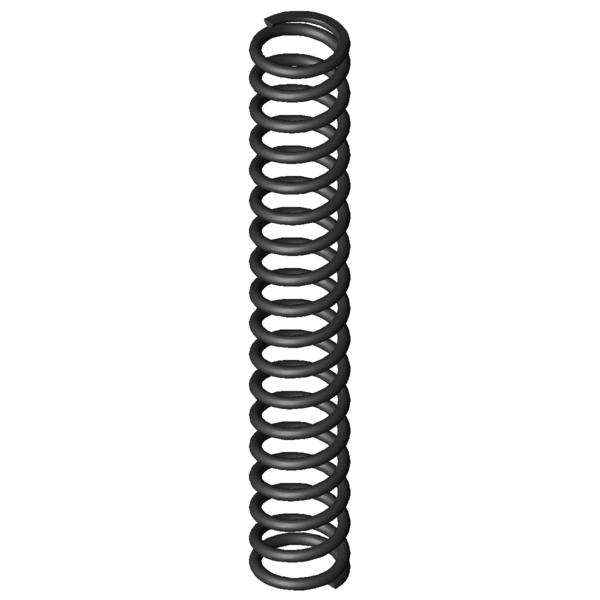

Product image Compression spring D-166M

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-166M

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7	mm	Mean coil diameter
De	8	mm	Outer coil diameter
Dd	5.4	mm	maximum diameter of mandrel
Dh	8.7	mm	minimum diameter of bush
L0	51.1	mm	unstressed spring length
Lk	38.72	mm	buckling length
Fn	53.529	N	maximum force in static use
Ln	21.36	mm	Minimum length in static use
sn	29.74	mm	Maximum spring deflection in static use
Fndyn	50.96	N	maximum force in dynamic use
Lndyn	22.79	mm	Minimum length in dynamic use
shdyn	10.47	mm	Maximum stroke in dynamic use
S	3.036	mm	pitch of spring
n	16.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.8	N/mm	Spring rate
Weight	2.5257	g	weight of one spring
Fntol	3.09	N	(+/-) tolerance of maximum force in static use
Fndtol	3.05	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.27	mm	(+/-) tolerance of unstressed spring length
Price group	C	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

force-path-calculation Compression spring D-166M

Inquiry formular Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

Inquiry formular Compression spring D-166M

Similar compression springs to Compression spring D-166M Spring steel Ø 1 x 7 x 51.1 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-166M	EN 10270-1	1	8	51.1	53.529	21.36	29.74	16.5	1.8	89.4 \| 95.7 \| 90.5 \| 81.9
VD-166M	1.4310	1	8	51.1	45.976	21.36	29.74	16.5	1.546	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-094	8.63	55	0.251	EN 10270-1	10.826	11.83	43.17	50.5 \| 84.5 \| 50.1 \| 17.0
D-095E	7.9	49	0.334	EN 10270-1	12.531	11.5	37.5	54.0 \| 81.7 \| 57.7 \| 22.7
D-126A	8.8	47	0.441	EN 10270-1	11.851	20.1	26.9	57.0 \| 89.4 \| 51.6 \| 29.9
D-115M	7.5	56.8	0.502	EN 10270-1	21.043	14.87	41.93	45.7 \| 82.9 \| 40.0 \| 14.3
D-115H-03	8	48	0.503	EN 10270-1	17.881	12.45	35.55	45.6 \| 79.9 \| 42.8 \| 14.3
D-126	8.8	47	0.652	EN 10270-1	21.451	14.1	32.9	67.9 \| 89.4 \| 70.1 \| 44.2
D-127E	8.3	45	0.733	EN 10270-1	22.051	14.9	30.1	66.3 \| 88.1 \| 70.0 \| 40.7
D-132A	7.1	48	0.742	EN 10270-1	18.487	23.07	24.93	62.6 \| 87.6 \| 59.2 \| 41.2
D-127E-05	8	41.6	0.894	EN 10270-1	24.85	13.82	27.79	68.9 \| 87.1 \| 69.9 \| 49.7
D-132	7.1	48	0.902	EN 10270-1	25.928	19.26	28.74	70.1 \| 87.6 \| 72.5 \| 50.1
D-143M	8	57	0.958	EN 10270-1	32.808	22.74	34.26	57.1 \| 90.5 \| 53.5 \| 27.2
D-143L	8	43	1.288	EN 10270-1	33.006	17.37	25.63	79.0 \| 91.4 \| 73.9 \| 71.5
D-166D	8.3	50	1.416	EN 10270-1	37.047	23.83	26.17	89.3 \| 96.1 \| 75.8 \| 96.0
D-164	9	52	1.474	EN 10270-1	49.897	18.15	33.85	100.0 \| 100.0 \| 100.0 \| 100.0
D-166M	8	51.1	1.8	EN 10270-1	53.529	21.36	29.74	89.4 \| 95.7 \| 90.5 \| 81.9
D-180-05	8.3	51	1.998	EN 10270-1	46.328	27.81	23.19	82.7 \| 93.7 \| 80.7 \| 73.8
D-180-04	8.3	44	2.284	EN 10270-1	44.272	24.61	19.39	81.3 \| 91.1 \| 74.0 \| 78.8
D-180-13	9	50	2.42	EN 10270-1	73.089	19.8	30.2	78.4 \| 95.7 \| 78.7 \| 60.9
D-173CJ	6.7	50.6	2.974	EN 10270-1	76.717	24.8	25.8	77.7 \| 94.3 \| 78.3 \| 60.5
D-180U	8.5	46.5	3.503	EN 10270-1	79.204	23.89	22.61	65.3 \| 89.1 \| 64.9 \| 42.1
D-200E	8.05	57	3.516	EN 10270-1	78.447	34.69	22.31	100.0 \| 100.0 \| 100.0 \| 100.0
D-205A	7.55	51.5	4.421	EN 10270-1	75.114	34.51	16.99	59.8 \| 87.6 \| 58.3 \| 33.3
D-200D	8.05	42	4.794	EN 10270-1	76.21	26.1	15.9	62.2 \| 87.2 \| 61.9 \| 37.6
D-205	7.55	51.5	5.377	EN 10270-1	121.951	28.82	22.68	56.3 \| 87.6 \| 54.0 \| 27.4
D-207D-06	8.6	51	5.519	EN 10270-1	98.698	33.12	17.88	55.6 \| 88.4 \| 51.7 \| 26.7
D-207KV	8.5	52.2	8.128	EN 10270-1	144.417	34.43	17.77	49.5 \| 86.9 \| 43.5 \| 18.1
D-232A-06	9	51	9.692	EN 10270-1	164.831	33.99	17.01	47.4 \| 86.9 \| 40.3 \| 15.2
D-234B-06	9.2	51	15.081	EN 10270-1	180.237	39.05	11.95	51.9 \| 83.5 \| 48.8 \| 23.4
D-232E	8	42.2	16.431	EN 10270-1	182.797	31.08	11.12	42.0 \| 81.7 \| 33.3 \| 10.9

Number of similar metal springs: 28
