Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

Scaled prices - Compression spring D-180-05

Quantity	Single price [EUR]
1	4.8500 EUR
2	3.4200 EUR
3	3.2600 EUR
7	1.8400 EUR
17	0.8300 EUR
37	0.5200 EUR
75	0.3400 EUR
125	0.2817 EUR
175	0.2192 EUR
250	0.1878 EUR
350	0.1452 EUR
450	0.1264 EUR

Compression spring Buy

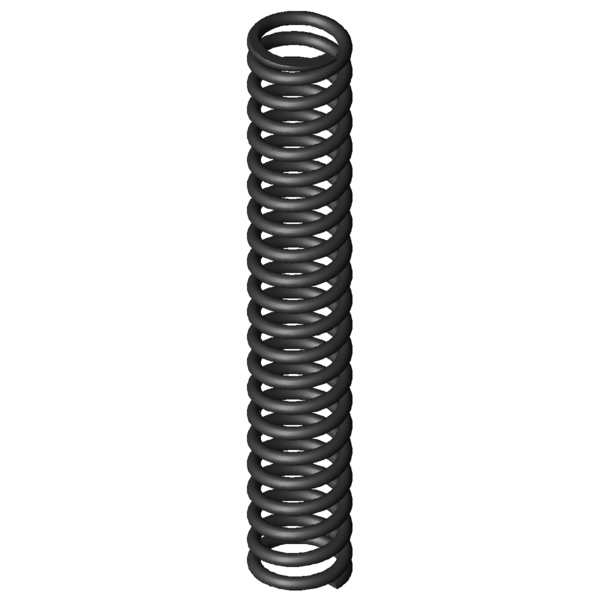

Product image Compression spring D-180-05

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-180-05

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.2	mm	Mean coil diameter
De	8.3	mm	Outer coil diameter
Dd	5.6	mm	maximum diameter of mandrel
Dh	8.8	mm	minimum diameter of bush
L0	51	mm	unstressed spring length
Lk	37.7	mm	buckling length
Fn	46.328	N	maximum force in static use
Ln	27.81	mm	Minimum length in static use
sn	23.19	mm	Maximum spring deflection in static use
Fndyn	42.719	N	maximum force in dynamic use
Lndyn	29.62	mm	Minimum length in dynamic use
shdyn	15.64	mm	Maximum stroke in dynamic use
S	2.495	mm	pitch of spring
n	20	pc.	number of active coils
nt		pc.	total number of coils
R	1.998	N/mm	Spring rate
Weight	3.7382	g	weight of one spring
Fntol	3.69	N	(+/-) tolerance of maximum force in static use
Fndtol	3.64	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.49	mm	(+/-) tolerance of unstressed spring length
Price group	D	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

force-path-calculation Compression spring D-180-05

Inquiry formular Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

Inquiry formular Compression spring D-180-05

Similar compression springs to Compression spring D-180-05 Spring steel Ø 1.1 x 7.2 x 51 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-180-05	EN 10270-1	1.1	8.3	51	46.328	27.81	23.19	20	1.998	100.0 \| 100.0 \| 100.0 \| 100.0
VD-180-05	1.4310	1.1	8.3	51	39.791	27.81	23.19	20	1.716	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-063Q	7.6	55	0.132	EN 10270-1	5.868	10.47	44.53	38.5 \| 76.6 \| 32.4 \| 6.6
D-094A	8.63	55	0.169	EN 10270-1	6.455	16.9	38.1	42.6 \| 82.1 \| 37.4 \| 8.5
D-094	8.63	55	0.251	EN 10270-1	10.826	11.83	43.17	44.4 \| 82.1 \| 38.5 \| 12.6
D-095E	7.9	49	0.334	EN 10270-1	12.531	11.5	37.5	48.0 \| 82.8 \| 44.4 \| 16.7
D-126A	8.8	47	0.441	EN 10270-1	11.851	20.1	26.9	54.8 \| 86.4 \| 55.9 \| 22.1
D-115H-03	8	48	0.503	EN 10270-1	17.881	12.45	35.55	53.9 \| 84.7 \| 51.9 \| 25.2
D-126	8.8	47	0.652	EN 10270-1	21.451	14.1	32.9	59.1 \| 86.4 \| 58.4 \| 32.6
D-127E	8.3	45	0.733	EN 10270-1	22.051	14.9	30.1	62.0 \| 87.0 \| 62.3 \| 36.7
D-143M	8	57	0.958	EN 10270-1	32.808	22.74	34.26	68.8 \| 89.2 \| 69.3 \| 47.9
D-143L	8	43	1.288	EN 10270-1	33.006	17.37	25.63	77.6 \| 87.5 \| 80.9 \| 64.5
D-166D	8.3	50	1.416	EN 10270-1	37.047	23.83	26.17	83.8 \| 96.3 \| 84.3 \| 70.9
D-164	9	52	1.474	EN 10270-1	49.897	18.15	33.85	82.7 \| 93.7 \| 80.7 \| 73.8
D-166M	8	51.1	1.8	EN 10270-1	53.529	21.36	29.74	89.4 \| 95.7 \| 82.3 \| 90.1
D-180-05	8.3	51	1.998	EN 10270-1	46.328	27.81	23.19	100.0 \| 100.0 \| 100.0 \| 100.0
D-180-04	8.3	44	2.284	EN 10270-1	44.272	24.61	19.39	90.8 \| 95.4 \| 89.6 \| 87.5
D-180-13	9	50	2.42	EN 10270-1	73.089	19.8	30.2	83.1 \| 96.8 \| 70.1 \| 82.5
D-199A	9.25	47.5	2.626	EN 10270-1	47.637	29.36	18.14	84.7 \| 90.3 \| 87.7 \| 76.1
D-173CJ	6.7	50.6	2.974	EN 10270-1	76.717	24.8	25.8	77.5 \| 90.3 \| 75.1 \| 67.2
D-180U	8.5	46.5	3.503	EN 10270-1	79.204	23.89	22.61	76.2 \| 93.5 \| 78.0 \| 57.0
D-200E	8.05	57	3.516	EN 10270-1	78.447	34.69	22.31	75.3 \| 91.5 \| 77.6 \| 56.8
D-200A-10	8.5	57.5	3.528	EN 10270-1	100.178	29.1	28.4	70.7 \| 91.4 \| 64.0 \| 56.6
D-199	9.25	47.5	3.886	EN 10270-1	103.179	20.95	26.55	69.3 \| 90.3 \| 66.1 \| 51.4
D-205A	7.55	51.5	4.421	EN 10270-1	75.114	34.51	16.99	68.4 \| 92.7 \| 67.5 \| 45.2
D-200A-06	8.5	42	5.221	EN 10270-1	112.364	20.48	21.52	64.9 \| 89.3 \| 67.0 \| 38.3
D-205	7.55	51.5	5.377	EN 10270-1	121.951	28.82	22.68	65.9 \| 92.7 \| 67.9 \| 37.2
D-207D-06	8.6	51	5.519	EN 10270-1	98.698	33.12	17.88	63.3 \| 91.7 \| 62.0 \| 36.2
D-207D-05	8.6	44	6.355	EN 10270-1	94.518	29.13	14.87	58.4 \| 87.1 \| 56.6 \| 31.4
D-207KV	8.5	52.2	8.128	EN 10270-1	144.417	34.43	17.77	56.2 \| 89.6 \| 54.4 \| 24.6
D-232A-06	9	51	9.692	EN 10270-1	164.831	33.99	17.01	52.8 \| 87.0 \| 50.7 \| 20.6

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-180-05

Country of origin: DE, German; Compression spring D-180-05

Product image - Compression springs D-180-05

QR-Code: Compression spring D-180-05

QR-Code - Compression springs - D-180-05 | https://www.federnshop.com/en/products/compression_springs/d-180-05.html
