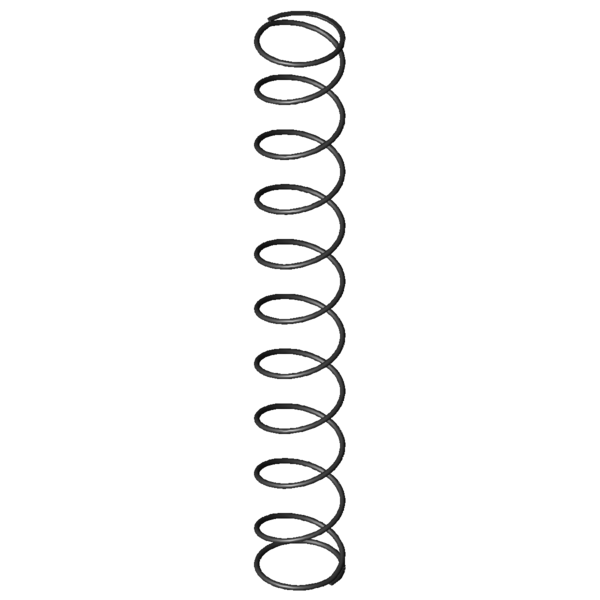

Home » Products » Compression springs » d-063l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm Scaled prices - Compression spring D-063L Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-063L Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-063L Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 8 mm Mean coil diameter De 8.5 mm Outer coil diameter Dd 6.9 mm maximum diameter of mandrel Dh 9.6 mm minimum diameter of bush L0 60.5 mm unstressed spring length Lk 47.03 mm buckling length Fn 6.866 N maximum force in static use Ln 8.05 mm Minimum length in static use sn 52.45 mm Maximum spring deflection in static use Fndyn 6.715 N maximum force in dynamic use Lndyn 9.2 mm Minimum length in dynamic use shdyn 11.15 mm Maximum stroke in dynamic use S 6.316 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 0.131 N/mm Spring rate Weight 0.4486 g weight of one spring Fntol 0.5 N (+/-) tolerance of maximum force in static use Fndtol 0.5 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3.06 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm force-path-calculation Compression spring D-063L Inquiry formular Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm Inquiry formular Compression spring D-063L Similar compression springs to Compression spring D-063L Spring steel Ø 0.5 x 8 x 60.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-063L EN 10270-1 0.5 8.5 60.5 6.866 8.05 52.45 9.5 0.131 100.0 | 100.0 | 100.0 | 100.0 VD-063L 1.4310 0.5 8.5 60.5 5.897 8.05 52.45 9.5 0.112 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063L 8.5 60.5 0.131 EN 10270-1 6.866 8.05 52.45 100.0 | 100.0 | 100.0 | 100.0 D-063Q 7.6 55 0.132 EN 10270-1 5.868 10.47 44.53 92.7 | 93.4 | 85.2 | 99.3 D-090G 9 61.6 0.163 EN 10270-1 8.604 8.7 52.9 88.2 | 94.5 | 89.5 | 80.5 D-094A 8.63 55 0.169 EN 10270-1 6.455 16.9 38.1 83.4 | 89.6 | 83.3 | 77.3 D-094 8.63 55 0.251 EN 10270-1 10.826 11.83 43.17 71.6 | 89.6 | 72.9 | 52.2 D-127A 8.8 68 0.362 EN 10270-1 15.902 24.1 43.9 60.8 | 82.7 | 63.4 | 36.1 D-115H-04 8 63 0.381 EN 10270-1 17.915 15.99 47.01 61.8 | 87.2 | 64.0 | 34.4 D-122A-13 10 62.5 0.429 EN 10270-1 20.542 14.58 47.92 58.1 | 81.4 | 62.4 | 30.5 D-127 8.8 68 0.441 EN 10270-1 21.102 20.1 47.9 58.1 | 82.7 | 61.9 | 29.7 D-115M 7.5 56.8 0.502 EN 10270-1 21.043 14.87 41.93 55.6 | 84.5 | 56.3 | 26.1 D-127E-06 8 60.8 0.604 EN 10270-1 24.85 19.68 41.12 53.4 | 85.4 | 53.0 | 21.7 D-143H 9.5 65 0.778 EN 10270-1 37.497 16.83 48.17 50.4 | 79.4 | 55.1 | 16.8 D-165A 9 59 0.884 EN 10270-1 26.61 28.91 30.09 45.7 | 80.7 | 41.6 | 14.8 D-143M 8 57 0.958 EN 10270-1 32.808 22.74 34.26 46.0 | 81.3 | 43.1 | 13.7 D-166E 8.3 64 1.069 EN 10270-1 35.371 30.91 33.09 44.7 | 80.7 | 41.3 | 12.2 D-165 9 59 1.076 EN 10270-1 37.508 24.13 34.87 45.1 | 80.7 | 42.4 | 12.2 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-063L Country of origin: DE, German; Compression spring D-063L Product image - Compression springs D-063L QR-Code: Compression spring D-063L
