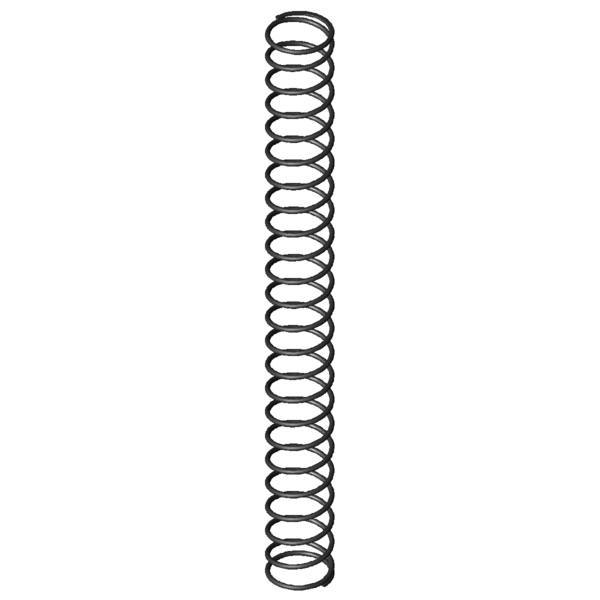

Home » Products » Compression springs » d-068a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm Scaled prices - Compression spring D-068A Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-068A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-068A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 6.3 mm Mean coil diameter De 6.8 mm Outer coil diameter Dd 5.4 mm maximum diameter of mandrel Dh 7.5 mm minimum diameter of bush L0 65 mm unstressed spring length Lk 57.79 mm buckling length Fn 5.539 N maximum force in static use Ln 16.05 mm Minimum length in static use sn 48.95 mm Maximum spring deflection in static use Fndyn 5.324 N maximum force in dynamic use Lndyn 17.96 mm Minimum length in dynamic use shdyn 24.8 mm Maximum stroke in dynamic use S 2.867 mm pitch of spring n 22.5 pc. number of active coils nt pc. total number of coils R 0.113 N/mm Spring rate Weight 0.7526 g weight of one spring Fntol 0.47 N (+/-) tolerance of maximum force in static use Fndtol 0.46 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 3.39 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm Datasheet download pdf file Metal spring characteristic Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm Metal spring characteristic download pdf file CAD data Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm force-path-calculation Compression spring D-068A Inquiry formular Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm Inquiry formular Compression spring D-068A Similar compression springs to Compression spring D-068A Spring steel Ø 0.5 x 6.3 x 65 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-068A EN 10270-1 0.5 6.8 65 5.539 16.05 48.95 22.5 0.113 100.0 | 100.0 | 100.0 | 100.0 VD-068 1.4310 0.5 6.8 65 6.103 13.38 51.62 18.5 0.118 96.2 | 100.0 | 92.8 | 95.7 VD-068A 1.4310 0.5 6.8 65 4.758 16.05 48.95 22.5 0.097 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-068A 6.8 65 0.113 EN 10270-1 5.539 16.05 48.95 100.0 | 100.0 | 100.0 | 100.0 D-063L 8.5 60.5 0.131 EN 10270-1 6.866 8.05 52.45 88.2 | 91.0 | 87.0 | 86.4 D-063Q 7.6 55 0.132 EN 10270-1 5.868 10.47 44.53 90.0 | 91.4 | 92.7 | 85.9 D-068 6.8 65 0.138 EN 10270-1 7.105 13.38 51.62 89.5 | 100.0 | 86.4 | 82.2 D-067A 6.8 44 0.138 EN 10270-1 4.215 13.38 30.62 80.3 | 89.2 | 69.3 | 82.2 D-068A-05 6.5 51.8 0.159 EN 10270-1 6.155 13.17 38.63 82.4 | 91.8 | 84.5 | 71.0 D-067 6.8 44 0.204 EN 10270-1 7.056 9.36 34.64 73.1 | 89.2 | 74.6 | 55.6 D-100A 6.93 54 0.285 EN 10270-1 9.99 18.98 35.02 63.3 | 86.9 | 63.5 | 39.7 D-100 6.93 54 0.347 EN 10270-1 13.243 15.83 38.17 59.8 | 86.9 | 59.9 | 32.6 D-100A-04 6.4 63 0.371 EN 10270-1 16.472 18.64 44.36 60.9 | 90.1 | 62.1 | 30.5 D-115H-04 8 63 0.381 EN 10270-1 17.915 15.99 47.01 59.2 | 84.5 | 63.5 | 29.7 D-090V 5.7 62 0.424 EN 10270-1 18.535 18.24 43.76 58.0 | 87.5 | 59.6 | 26.7 D-115M 7.5 56.8 0.502 EN 10270-1 21.043 14.87 41.93 53.9 | 83.2 | 56.0 | 22.5 D-100A-03 6.4 51 0.539 EN 10270-1 20.357 13.23 37.77 52.4 | 84.0 | 52.2 | 21.0 D-132A-01 7.1 65 0.566 EN 10270-1 19.938 29.76 35.24 52.0 | 86.1 | 49.9 | 20.0 D-127E-06 8 60.8 0.604 EN 10270-1 24.85 19.68 41.12 50.7 | 80.3 | 53.1 | 18.7 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-068A Country of origin: DE, German; Compression spring D-068A Product image - Compression springs D-068A QR-Code: Compression spring D-068A
