Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

Scaled prices - Compression spring D-090V

Quantity	Single price [EUR]
1	4.8100 EUR
2	3.3900 EUR
3	3.2300 EUR
7	1.8100 EUR
17	0.7800 EUR
37	0.4700 EUR
75	0.2700 EUR
125	0.2226 EUR
175	0.1689 EUR
250	0.1503 EUR
350	0.1199 EUR
450	0.1011 EUR

Compression spring Buy

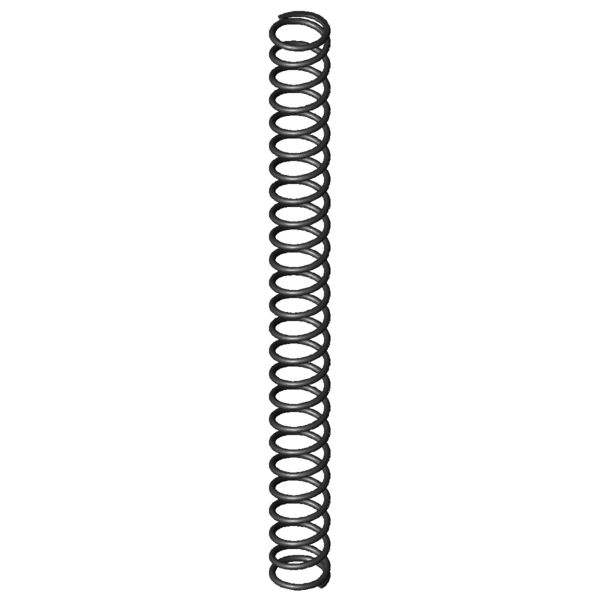

Product image Compression spring D-090V

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-090V

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.6	mm	Wire diameter
Di		mm	Inner coil diameter
D	5.1	mm	Mean coil diameter
De	5.7	mm	Outer coil diameter
Dd	4.1	mm	maximum diameter of mandrel
Dh	6.2	mm	minimum diameter of bush
L0	62	mm	unstressed spring length
Lk	57.15	mm	buckling length
Fn	18.535	N	maximum force in static use
Ln	18.24	mm	Minimum length in static use
sn	43.76	mm	Maximum spring deflection in static use
Fndyn	15.502	N	maximum force in dynamic use
Lndyn	25.4	mm	Minimum length in dynamic use
shdyn	9.63	mm	Maximum stroke in dynamic use
S	2.613	mm	pitch of spring
n	23.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.424	N/mm	Spring rate
Weight	0.9131	g	weight of one spring
Fntol	0.97	N	(+/-) tolerance of maximum force in static use
Fndtol	0.96	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.63	mm	(+/-) tolerance of unstressed spring length
Price group	C	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

force-path-calculation Compression spring D-090V

Inquiry formular Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

Inquiry formular Compression spring D-090V

Similar compression springs to Compression spring D-090V Spring steel Ø 0.6 x 5.1 x 62 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-090V	EN 10270-1	0.6	5.7	62	18.535	18.24	43.76	23.5	0.424	100.0 \| 100.0 \| 100.0 \| 100.0
VD-090V	1.4310	0.6	5.7	62	15.92	18.24	43.76	23.5	0.364	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-068A	6.8	65	0.113	EN 10270-1	5.539	16.05	48.95	58.0 \| 87.5 \| 59.6 \| 26.7
D-063Q	7.6	55	0.132	EN 10270-1	5.868	10.47	44.53	59.5 \| 82.3 \| 65.0 \| 31.1
D-068	6.8	65	0.138	EN 10270-1	7.105	13.38	51.62	60.5 \| 87.5 \| 61.6 \| 32.5
D-068A-05	6.5	51.8	0.159	EN 10270-1	6.155	13.17	38.63	67.6 \| 91.0 \| 68.8 \| 42.9
D-074A	5.5	44.5	0.226	EN 10270-1	6.664	15.06	29.44	73.9 \| 92.8 \| 68.1 \| 60.9
D-074	5.5	44.5	0.275	EN 10270-1	8.794	12.56	31.94	82.3 \| 92.8 \| 80.0 \| 74.1
D-100A	6.93	54	0.285	EN 10270-1	9.99	18.98	35.02	74.2 \| 88.2 \| 67.0 \| 67.3
D-100B	6.03	45	0.314	EN 10270-1	5.946	26.04	18.96	76.4 \| 94.5 \| 50.3 \| 84.4
D-100	6.93	54	0.347	EN 10270-1	13.243	15.83	38.17	91.5 \| 86.7 \| 94.3 \| 93.4
D-100A-04	6.4	63	0.371	EN 10270-1	16.472	18.64	44.36	91.9 \| 94.2 \| 93.8 \| 87.7
D-090M	6	46.5	0.372	EN 10270-1	12.917	11.73	34.77	100.0 \| 100.0 \| 100.0 \| 100.0
D-115H-04	8	63	0.381	EN 10270-1	17.915	15.99	47.01	90.0 \| 85.1 \| 94.9 \| 90.0
D-090V	5.7	62	0.424	EN 10270-1	18.535	18.24	43.76	100.0 \| 100.0 \| 100.0 \| 100.0
D-115M	7.5	56.8	0.502	EN 10270-1	21.043	14.87	41.93	86.9 \| 84.4 \| 91.9 \| 84.4
D-100A-03	6.4	51	0.539	EN 10270-1	20.357	13.23	37.77	79.1 \| 90.7 \| 77.8 \| 68.9
D-132A-01	7.1	65	0.566	EN 10270-1	19.938	29.76	35.24	81.7 \| 83.6 \| 86.7 \| 74.9
D-105A	5.63	38.5	0.571	EN 10270-1	11.588	18.19	20.31	75.7 \| 88.0 \| 74.1 \| 65.1
D-127E-06	8	60.8	0.604	EN 10270-1	24.85	19.68	41.12	78.6 \| 81.4 \| 84.3 \| 70.1
D-117	5.7	48	0.612	EN 10270-1	12.38	27.75	20.25	76.0 \| 90.1 \| 77.0 \| 60.8
D-100A-02	6.4	41	0.619	EN 10270-1	18.14	11.69	29.31	75.8 \| 89.7 \| 77.8 \| 60.0
D-105	5.63	38.5	0.694	EN 10270-1	16.182	15.18	23.32	71.7 \| 88.0 \| 73.4 \| 53.5
D-132A	7.1	48	0.742	EN 10270-1	18.487	23.07	24.93	68.1 \| 83.4 \| 70.8 \| 50.1
D-132	7.1	48	0.902	EN 10270-1	25.928	19.26	28.74	63.6 \| 83.4 \| 66.2 \| 41.2
D-132E	6.4	59	0.932	EN 10270-1	31.179	25.54	33.46	66.6 \| 86.4 \| 68.0 \| 45.5
D-132D	6.4	43	1.284	EN 10270-1	30.866	18.97	24.03	56.5 \| 85.0 \| 55.5 \| 28.9
D-143T	7.3	57.3	1.378	EN 10270-1	49.509	21.38	35.92	56.5 \| 79.1 \| 59.8 \| 30.7
D-137A	5.8	36	1.484	EN 10270-1	20.097	22.45	13.55	52.5 \| 80.9 \| 51.6 \| 25.0
D-137	5.8	36	1.804	EN 10270-1	31.132	18.75	17.25	49.0 \| 80.9 \| 45.6 \| 20.6

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-090V

Country of origin: DE, German; Compression spring D-090V

Product image - Compression springs D-090V

QR-Code: Compression spring D-090V

QR-Code - Compression springs - D-090V | https://www.federnshop.com/en/products/compression_springs/d-090v.html
