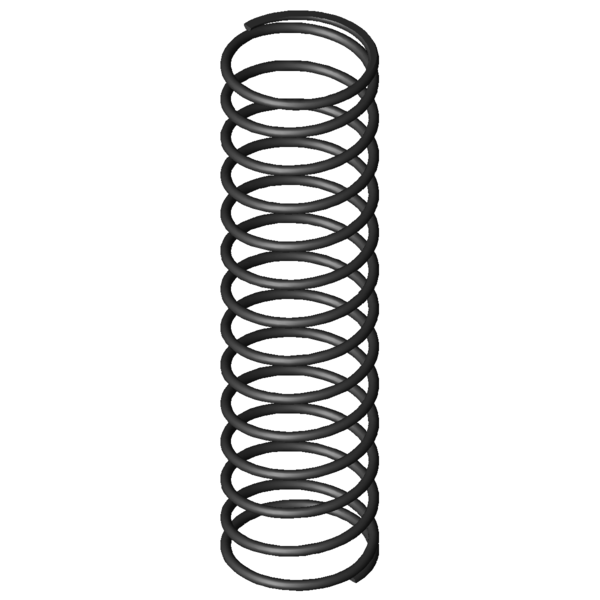

Home » Products » Compression springs » d-207t Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm Scaled prices - Compression spring D-207T Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring D-207T Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-207T Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.6 mm Wire diameter Di mm Inner coil diameter D 22 mm Mean coil diameter De 23.6 mm Outer coil diameter Dd 19.7 mm maximum diameter of mandrel Dh 24.4 mm minimum diameter of bush L0 90 mm unstressed spring length Lk mm buckling length Fn 29.66 N maximum force in static use Ln 30.87 mm Minimum length in static use sn 59.13 mm Maximum spring deflection in static use Fndyn 27.689 N maximum force in dynamic use Lndyn 34.8 mm Minimum length in dynamic use shdyn 55 mm Maximum stroke in dynamic use S 7.072 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.502 N/mm Spring rate Weight 15.9276 g weight of one spring Fntol 3.33 N (+/-) tolerance of maximum force in static use Fndtol 3.3 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 5.2 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm Datasheet download pdf file Metal spring characteristic Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm Metal spring characteristic download pdf file CAD data Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm force-path-calculation Compression spring D-207T Inquiry formular Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm Inquiry formular Compression spring D-207T Similar compression springs to Compression spring D-207T Spring steel Ø 1.6 x 22 x 90 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-207T EN 10270-1 1.6 23.6 90 29.66 30.87 59.13 12.5 0.502 100.0 | 100.0 | 100.0 | 100.0 VD-207T 1.4310 1.6 23.6 90 25.462 30.9 59.1 12.5 0.431 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-145DD 24 101 0.067 EN 10270-1 5.046 25.67 75.33 48.1 | 83.3 | 47.8 | 13.4 D-207T 23.6 90 0.502 EN 10270-1 29.66 30.87 59.13 100.0 | 100.0 | 100.0 | 100.0 D-206B 24 93 0.616 EN 10270-1 48.526 14.28 78.72 81.2 | 94.2 | 68.1 | 81.4 D-206D-16 20.4 85 0.671 EN 10270-1 44.183 19.18 65.82 80.9 | 89.5 | 78.5 | 74.7 D-239A-04 25 95.5 1.576 EN 10270-1 109.425 26.07 69.43 59.2 | 89.5 | 56.1 | 31.8 D-236 27 88.5 1.897 EN 10270-1 125.184 22.5 66 57.2 | 88.6 | 56.6 | 26.4 D-239A-20 23 94 2.071 EN 10270-1 141.817 25.51 68.49 56.3 | 91.1 | 53.6 | 24.2 D-246 21 85 2.263 EN 10270-1 124.609 29.94 55.06 56.1 | 87.8 | 58.5 | 22.2 D-242 22 94 2.397 EN 10270-1 156.288 28.8 65.2 55.1 | 89.7 | 54.8 | 20.9 D-241A 22 79 2.397 EN 10270-1 128.842 25.25 53.75 55.0 | 87.0 | 57.0 | 20.9 D-263L 24 98.9 2.425 EN 10270-1 165.929 30.47 68.43 53.4 | 87.4 | 52.1 | 20.7 D-276A 22.5 93 3.685 EN 10270-1 175.521 45.37 47.64 49.2 | 85.4 | 48.7 | 13.6 D-276B 22.5 103 3.685 EN 10270-1 212.369 45.37 57.64 50.5 | 82.2 | 55.7 | 13.6 D-263VD 20 87.6 4.113 EN 10270-1 200.796 38.78 48.82 48.2 | 83.9 | 48.7 | 12.2 D-273A-10 24 85 5.339 EN 10270-1 272.016 34.05 50.95 47.8 | 85.6 | 48.5 | 9.4 D-278B 20.5 95 5.459 EN 10270-1 290.383 41.81 53.2 47.0 | 81.9 | 50.1 | 9.2 D-276 22.5 81.5 5.852 EN 10270-1 292.61 31.5 50 46.4 | 83.3 | 47.3 | 8.6 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-207T Country of origin: DE, German; Compression spring D-207T Product image - Compression springs D-207T QR-Code: Compression spring D-207T
