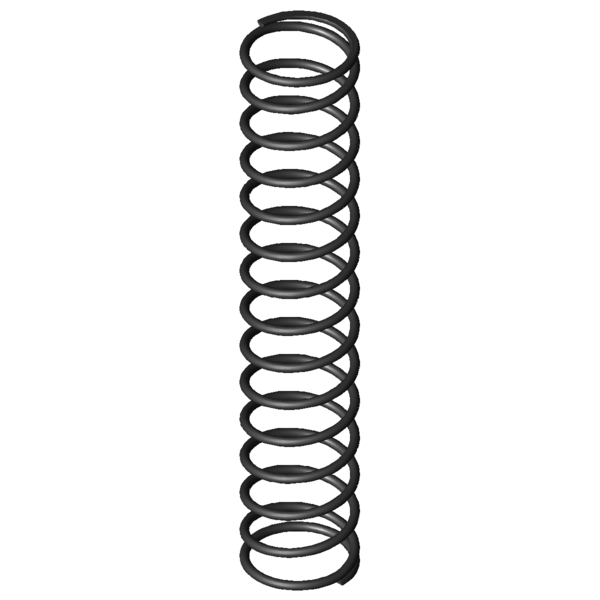

Home » Products » Compression springs » d-268e Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm Scaled prices - Compression spring D-268E Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring D-268E Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-268E Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 28.5 mm Mean coil diameter De 31 mm Outer coil diameter Dd 25.2 mm maximum diameter of mandrel Dh 32.3 mm minimum diameter of bush L0 163 mm unstressed spring length Lk 86.24 mm buckling length Fn 145.542 N maximum force in static use Ln 48.7 mm Minimum length in static use sn 114.3 mm Maximum spring deflection in static use Fndyn 139.206 N maximum force in dynamic use Lndyn 53.68 mm Minimum length in dynamic use shdyn 65.61 mm Maximum stroke in dynamic use S 11.889 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 1.273 N/mm Spring rate Weight 53.8489 g weight of one spring Fntol 8.66 N (+/-) tolerance of maximum force in static use Fndtol 8.57 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 5.09 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm Datasheet download pdf file Metal spring characteristic Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm Metal spring characteristic download pdf file CAD data Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm force-path-calculation Compression spring D-268E Inquiry formular Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm Inquiry formular Compression spring D-268E Similar compression springs to Compression spring D-268E Spring steel Ø 2.5 x 28.5 x 163 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-268E EN 10270-1 2.5 31 163 145.542 48.7 114.3 13.5 1.273 100.0 | 100.0 | 100.0 | 100.0 VD-268E 1.4310 2.5 31 163 125.006 48.7 114.3 13.5 1.094 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-206A-22 34 153 0.061 EN 10270-1 6.145 52.36 100.64 43.8 | 80.3 | 46.1 | 4.8 D-207JH 34 164 0.177 EN 10270-1 24.391 26 138 49.1 | 83.5 | 49.8 | 13.9 D-207N 28 181 0.382 EN 10270-1 59.154 26.13 154.87 56.2 | 81.5 | 57.2 | 30.0 D-232H 30 181 0.502 EN 10270-1 76.449 28.71 152.29 63.2 | 86.3 | 63.8 | 39.4 D-234N-10 30 170 0.55 EN 10270-1 70.602 41.64 128.36 67.6 | 90.9 | 68.8 | 43.2 D-234O 30 182 0.55 EN 10270-1 77.202 41.64 140.36 66.4 | 88.8 | 67.2 | 43.2 D-268E 31 163 1.273 EN 10270-1 145.542 48.7 114.3 100.0 | 100.0 | 100.0 | 100.0 D-272A 27.5 165 1.377 EN 10270-1 140.68 62.81 102.19 93.8 | 95.8 | 93.0 | 92.5 D-266 34.5 170 1.429 EN 10270-1 182.881 42 128 89.6 | 95.2 | 84.4 | 89.1 D-288N-10 30 135 1.886 EN 10270-1 135.858 62.96 72.04 78.4 | 89.6 | 78.2 | 67.5 D-288K-13 33 150 1.895 EN 10270-1 192.439 48.42 101.58 80.4 | 91.7 | 82.3 | 67.2 D-288O 30 189 2.008 EN 10270-1 260.008 59.48 129.52 75.4 | 90.8 | 72.1 | 63.4 D-272 27.5 165 2.038 EN 10270-1 234.72 49.8 115.2 79.6 | 95.8 | 80.6 | 62.5 D-288Z-23 33 157 2.445 EN 10270-1 254.586 52.88 104.13 72.5 | 91.2 | 74.1 | 52.1 D-298E 33 148 2.99 EN 10270-1 264.505 59.54 88.46 65.5 | 87.6 | 66.2 | 42.6 D-288Z-45 27 170 3.227 EN 10270-1 314.989 72.38 97.62 64.7 | 88.8 | 65.8 | 39.5 D-328A 36 170 4.302 EN 10270-1 316.191 96.5 73.5 55.4 | 81.5 | 55.2 | 29.6 D-313JA 34 145 4.872 EN 10270-1 406.784 61.51 83.49 54.6 | 83.2 | 54.4 | 26.1 D-328 36 170 6.367 EN 10270-1 650.727 67.8 102.2 52.5 | 81.5 | 55.9 | 20.0 D-334A 29 185 7.418 EN 10270-1 539.508 112.27 72.73 48.0 | 81.4 | 45.3 | 17.2 D-334 29 185 9.022 EN 10270-1 823.409 93.74 91.26 48.1 | 81.4 | 48.8 | 14.1 D-339R 32 154 12.959 EN 10270-1 834.173 89.63 64.37 43.0 | 82.3 | 36.9 | 9.8 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring D-268E Country of origin: DE, German; Compression spring D-268E Product image - Compression springs D-268E QR-Code: Compression spring D-268E
