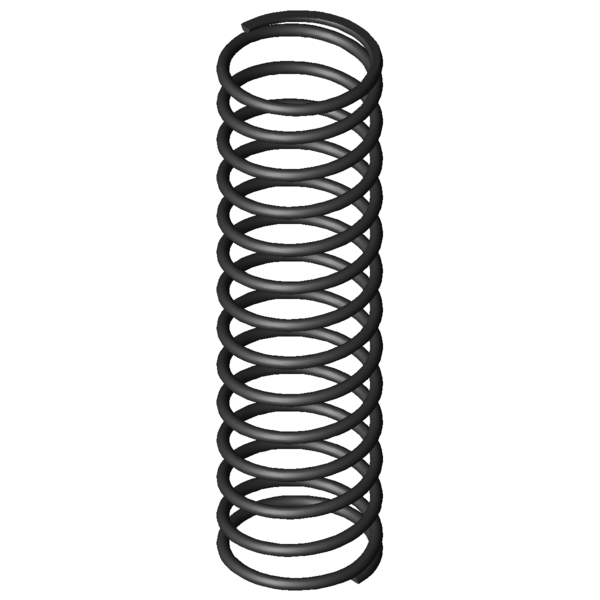

Home » Products » Compression springs » d-339j-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm Scaled prices - Compression spring D-339J-04 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.1813 EUR 175 2.1735 EUR 250 2.1481 EUR 350 2.0967 EUR Compression spring Buy Product image Compression spring D-339J-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-339J-04 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 53.5 mm Mean coil diameter De 58 mm Outer coil diameter Dd 47.8 mm maximum diameter of mandrel Dh 59.3 mm minimum diameter of bush L0 210 mm unstressed spring length Lk mm buckling length Fn 277.7 N maximum force in static use Ln 82.75 mm Minimum length in static use sn 127.25 mm Maximum spring deflection in static use Fndyn 258.622 N maximum force in dynamic use Lndyn 91.5 mm Minimum length in dynamic use shdyn 110 mm Maximum stroke in dynamic use S 16.44 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 2.182 N/mm Spring rate Weight 305.2393 g weight of one spring Fntol 22.1 N (+/-) tolerance of maximum force in static use Fndtol 21.4 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 7.5 mm (+/-) tolerance of unstressed spring length Price group AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm Datasheet download pdf file Metal spring characteristic Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm Metal spring characteristic download pdf file CAD data Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm force-path-calculation Compression spring D-339J-04 Inquiry formular Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm Inquiry formular Compression spring D-339J-04 Similar compression springs to Compression spring D-339J-04 Spring steel Ø 4.5 x 53.5 x 210 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-339J-04 EN 10270-1 4.5 58 210 277.7 82.75 127.25 12.5 2.182 100.0 | 100.0 | 100.0 | 100.0 VD-339J-04 1.4310 4.5 58 210 241.226 82.75 127.25 12.5 1.896 93.4 | 100.0 | 93.4 | 86.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263V-21 46 208 0.569 EN 10270-1 96.677 38.03 169.97 53.0 | 78.0 | 54.8 | 26.1 D-288X-22 48 203 1.065 EN 10270-1 170.824 42.66 160.34 67.1 | 82.0 | 70.4 | 48.8 D-289A 55 180 1.397 EN 10270-1 205.866 32.68 147.32 76.1 | 83.9 | 80.3 | 64.0 D-313S-01 70 203 1.649 EN 10270-1 266.891 41.18 161.82 84.1 | 89.5 | 87.4 | 75.6 D-313C 60 188 1.734 EN 10270-1 263.118 36.27 151.73 85.8 | 88.7 | 89.3 | 79.5 D-313E-13 48 200 1.955 EN 10270-1 283.436 55.01 144.99 89.5 | 86.0 | 92.9 | 89.6 D-339J-04 58 210 2.182 EN 10270-1 277.7 82.75 127.25 100.0 | 100.0 | 100.0 | 100.0 D-316 54 230 2.455 EN 10270-1 433.557 53.37 176.63 82.7 | 91.1 | 68.0 | 88.9 D-364R-33 69 200 3.145 EN 10270-1 309.3 101.66 98.34 79.8 | 86.6 | 83.5 | 69.4 D-339J-23 58 185 3.21 EN 10270-1 403.8 59.2 125.8 82.6 | 96.0 | 83.8 | 68.0 D-347A 55 235 3.773 EN 10270-1 530.599 94.38 140.63 73.5 | 91.4 | 71.4 | 57.8 D-344A-10 60 190 4.252 EN 10270-1 520.186 67.67 122.33 72.8 | 92.4 | 74.8 | 51.3 D-364R-44 54 200 4.777 EN 10270-1 302.028 136.77 63.23 68.7 | 89.6 | 70.8 | 45.7 D-347 55 195 5.993 EN 10270-1 790.28 63.13 131.88 64.9 | 92.6 | 65.8 | 36.4 D-364H 60 213 6.062 EN 10270-1 829.439 76.17 136.83 63.9 | 92.4 | 63.2 | 36.0 D-378A 56.3 250 6.94 EN 10270-1 681.373 151.82 98.18 58.2 | 84.2 | 59.0 | 31.4 D-364J-04 56 175 8.516 EN 10270-1 908.3 68.34 104.64 56.3 | 87.2 | 56.4 | 25.1 D-364R-72 61 180 9.336 EN 10270-1 964.046 76.74 103.26 54.5 | 85.3 | 55.0 | 23.4 D-377A 56.3 217 9.51 EN 10270-1 977.729 114.19 102.81 55.3 | 88.4 | 54.6 | 22.9 D-378 56.3 250 10.271 EN 10270-1 1472.179 106.67 143.33 53.1 | 84.2 | 53.8 | 21.2 D-377 56.3 175 15.104 EN 10270-1 1486.8 76.56 98.44 48.8 | 83.9 | 48.0 | 14.4 D-389N 50 228 19.848 EN 10270-1 1756.744 139.49 88.51 44.8 | 80.9 | 42.7 | 11.0 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring D-339J-04 Country of origin: DE, German; Compression spring D-339J-04 Product image - Compression springs D-339J-04 QR-Code: Compression spring D-339J-04
