Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

Scaled prices - Compression spring D-364R-44

Quantity	Single price [EUR]
1	14.4000 EUR
2	11.4700 EUR
3	7.0900 EUR
7	5.2300 EUR
17	3.6600 EUR
37	3.0100 EUR
75	2.9700 EUR
125	2.9376 EUR
175	2.9180 EUR
250	2.8813 EUR
350	2.8095 EUR

Compression spring Buy

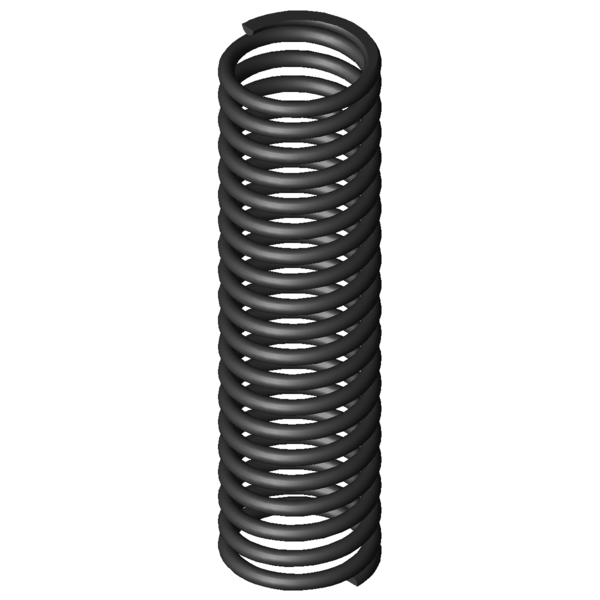

Product image Compression spring D-364R-44

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-364R-44

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5.6	mm	Wire diameter
Di		mm	Inner coil diameter
D	48.4	mm	Mean coil diameter
De	54	mm	Outer coil diameter
Dd	41.4	mm	maximum diameter of mandrel
Dh	55.5	mm	minimum diameter of bush
L0	200	mm	unstressed spring length
Lk		mm	buckling length
Fn	302.028	N	maximum force in static use
Ln	136.77	mm	Minimum length in static use
sn	63.23	mm	Maximum spring deflection in static use
Fndyn	249.526	N	maximum force in dynamic use
Lndyn	147.76	mm	Minimum length in dynamic use
shdyn	52.24	mm	Maximum stroke in dynamic use
S	10.508	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	4.777	N/mm	Spring rate
Weight	606.8697	g	weight of one spring
Fntol	35	N	(+/-) tolerance of maximum force in static use
Fndtol	34.6	N	(+/-) tolerance of maximum dynamic force
Detol	0.8	mm	(+/-) tolerances of outer coil diameter
L0tol	6.46	mm	(+/-) tolerance of unstressed spring length
Price group	AK	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

force-path-calculation Compression spring D-364R-44

Inquiry formular Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

Inquiry formular Compression spring D-364R-44

Similar compression springs to Compression spring D-364R-44 Spring steel Ø 5.6 x 48.4 x 200 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-364R-44	EN 10270-1	5.6	54	200	302.028	136.77	63.23	18.5	4.777	100.0 \| 100.0 \| 100.0 \| 100.0
VD-364R-44	1.4310	5.6	54	200	259.411	136.77	63.23	18.5	4.103	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-263V-21	46	208	0.569	EN 10270-1	96.677	38.03	169.97	40.6 \| 75.3 \| 34.6 \| 11.9
D-288X-22	48	203	1.065	EN 10270-1	170.824	42.66	160.34	50.2 \| 80.3 \| 48.0 \| 22.3
D-289A	55	180	1.397	EN 10270-1	205.866	32.68	147.32	55.5 \| 81.8 \| 55.5 \| 29.3
D-313C	60	188	1.734	EN 10270-1	263.118	36.27	151.73	61.2 \| 82.8 \| 64.4 \| 36.3
D-313E-13	48	200	1.955	EN 10270-1	283.436	55.01	144.99	64.7 \| 84.4 \| 68.7 \| 40.9
D-339J-04	58	210	2.182	EN 10270-1	277.7	82.75	127.25	68.7 \| 89.6 \| 70.8 \| 45.7
D-316	54	230	2.455	EN 10270-1	433.557	53.37	176.63	63.4 \| 86.1 \| 52.7 \| 51.4
D-339J-23	58	185	3.21	EN 10270-1	403.8	59.2	125.8	72.8 \| 88.7 \| 62.5 \| 67.2
D-347A	55	235	3.773	EN 10270-1	530.599	94.38	140.63	73.6 \| 90.9 \| 50.9 \| 79.0
D-344A-10	60	190	4.252	EN 10270-1	520.186	67.67	122.33	78.4 \| 91.4 \| 54.9 \| 89.0
D-339M	50	187	4.668	EN 10270-1	580.828	62.58	124.42	79.3 \| 88.8 \| 51.4 \| 97.7
D-364R-44	54	200	4.777	EN 10270-1	302.028	136.77	63.23	100.0 \| 100.0 \| 100.0 \| 100.0
D-353A	45	205	5.378	EN 10270-1	453.716	120.63	84.37	83.2 \| 90.1 \| 70.8 \| 88.8
D-347	55	195	5.993	EN 10270-1	790.28	63.13	131.88	72.6 \| 95.0 \| 43.1 \| 79.7
D-364H	60	213	6.062	EN 10270-1	829.439	76.17	136.83	71.4 \| 94.0 \| 41.3 \| 78.8
D-353	45	205	7.959	EN 10270-1	957.068	84.75	120.25	64.0 \| 90.1 \| 42.1 \| 60.0
D-364J-04	56	175	8.516	EN 10270-1	908.3	68.34	104.64	65.3 \| 94.0 \| 46.8 \| 55.0
D-364R-72	61	180	9.336	EN 10270-1	964.046	76.74	103.26	62.7 \| 90.6 \| 46.3 \| 51.2
D-377A	56.3	217	9.51	EN 10270-1	977.729	114.19	102.81	62.9 \| 92.3 \| 46.2 \| 50.2
D-364J-24	48	185	9.715	EN 10270-1	895.915	92.78	92.22	64.5 \| 93.2 \| 51.1 \| 49.2
D-383A	46.3	195	13.554	EN 10270-1	639.051	147.85	47.15	62.3 \| 90.7 \| 60.9 \| 35.2
D-377	56.3	175	15.104	EN 10270-1	1486.8	76.56	98.44	54.9 \| 90.8 \| 42.3 \| 31.6
D-389N	50	228	19.848	EN 10270-1	1756.744	139.49	88.51	51.7 \| 86.8 \| 44.3 \| 24.1
D-383	46.3	195	20.06	EN 10270-1	1825.76	103.99	91.01	52.5 \| 90.7 \| 43.0 \| 23.8
D-408	58	230	26.706	EN 10270-1	2620.936	131.86	98.14	46.4 \| 83.4 \| 38.0 \| 17.9
D-389N-04	46	194	31.719	EN 10270-1	2399.97	118.34	75.66	50.2 \| 87.4 \| 48.1 \| 15.1
D-414M-04	57	230	43.17	EN 10270-1	2936.622	161.98	68.02	48.0 \| 81.3 \| 51.6 \| 11.1

Number of similar metal springs: 26

Customs tariff number: 73202081; Compression spring D-364R-44

Country of origin: DE, German; Compression spring D-364R-44
